Z CAM E2 S6 6K Cine Camera – EF

OVERVIEW

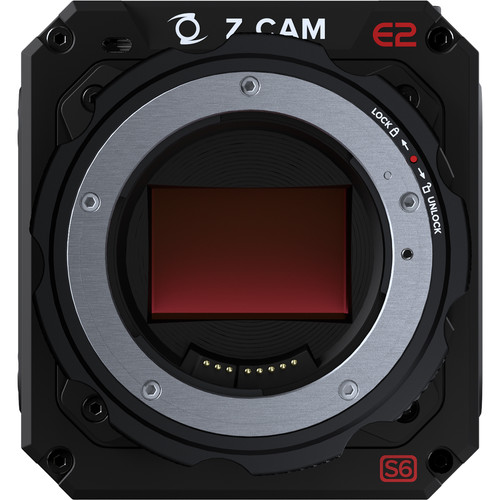

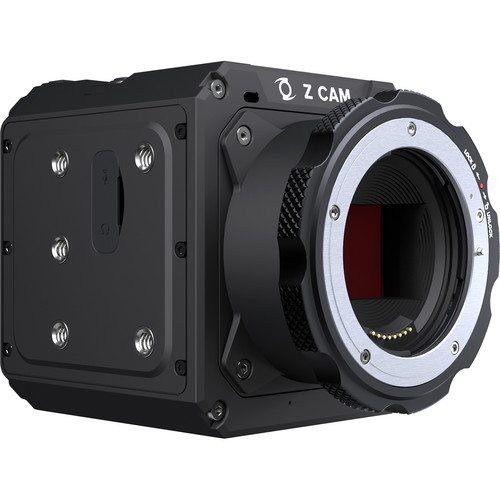

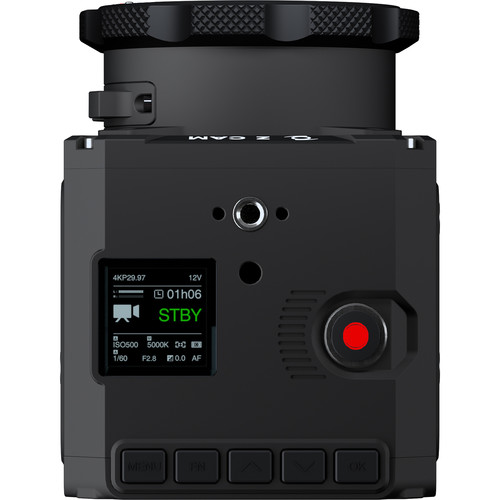

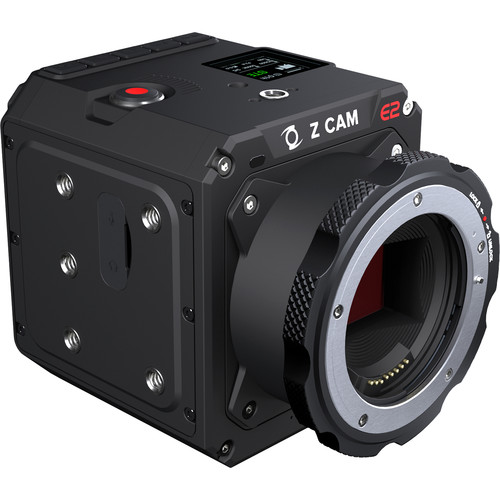

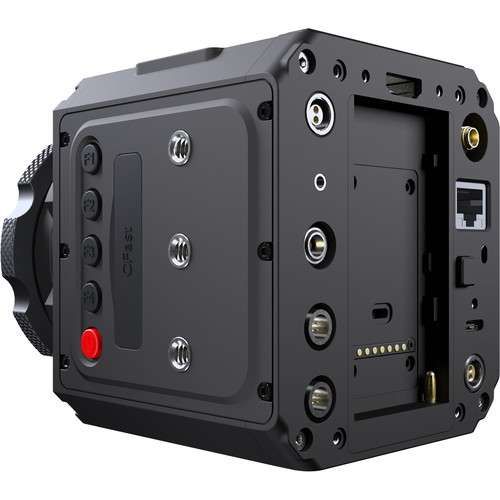

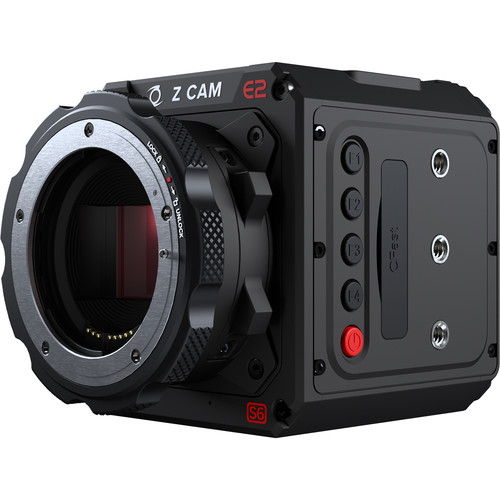

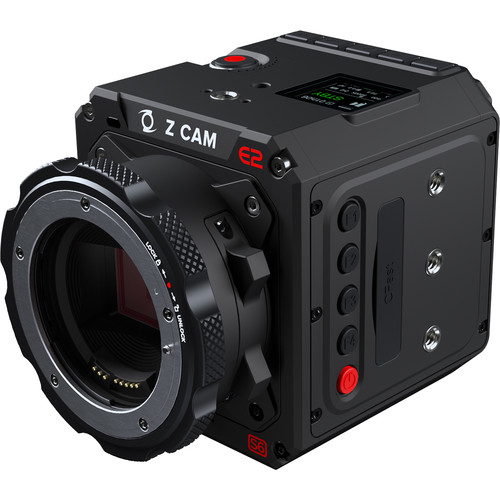

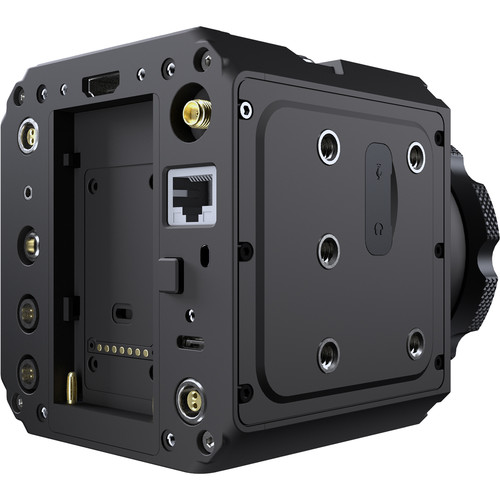

The Z Cam E2 S6 6K Super 35mm Cinema Camera with EF Mount is a top-of-the-line camera that boasts impressive features and capabilities. With a maximum resolution of 6K at 75 frames per second and 4K at 100 frames per second, this camera is perfect for capturing high-quality footage in a variety of settings.

One of the standout features of the Z Cam E2 S6 is its Super 35 CMOS sensor, which delivers stunning image quality with 14 stops of dynamic range. This means you can capture every detail and nuance in your shots, even in challenging lighting conditions.

The Z Cam E2 S6 also supports ZRAW, a high-quality raw file format that allows for greater flexibility in post-production. This gives you more control over the final look of your footage, ensuring that you can achieve your desired aesthetic.

With an EF mount, the Z Cam E2 S6 is compatible with a wide range of lenses, giving you the freedom to choose the best lens for each shot. And with gigabit Ethernet connectivity, you can easily transfer data, control the camera, and even live stream your footage.

But thats not all – the Z Cam E2 S6 also comes with the Z Cam App, a mobile application that allows for camera live preview and control via Wi-Fi or USB connection. With this app, you can start and stop recording, adjust camera settings, and even access advanced features for live preview.

In summary, the Z Cam E2 S6 6K Super 35mm Cinema Camera with EF Mount is a powerful and versatile camera that is perfect for professional filmmakers and videographers. With its impressive features and capabilities, it is sure to elevate the quality of your work and help you achieve your creative vision.

SUMMARY
Dynamic Range: 14 Stops
Native ISO: ISO 500
Lens Mount: Locking EF
Recording Formats: ProRes
Audio Inputs: 1x 5-Pin LEMO
Shutter: Rolling (Electronic)
Battery Mount / Type: Sony NP-F
Media Type: CFast 2.0
Resolution and Frame Rate: 6K 30p (Open Gate)
Sensor: Super 35
Video Outputs: 1x HDMI (2.0)
Weight: 0-2kg
Wi-Fi: Yes

INCLUDED IN BOX
1x Z Cam E2 S6 6K Super 35mm Cinema Camera – EF Mount
1x Coiled 2-pin to D-tap Power Cable
1x D-tap to Female DC Power Cable
1x Wi-Fi Antenna

About The Z CAM E2 S6 6K Cine Camera – EF
Z Cam E2 S6 6K Super 35mm Cinema Camera with EF Mount, is 6K @ 60fps as well as 4K @100fps The Z Cam E2 S6 has a super 35mm CMOS Sensor with a 10-bit colour 4:2:2 colour stop and 14 stop dynamic range as well as this it files formats include ZRAW, MOV and MP4/

Z Cam App

Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Camera Features
Sensor Type Super 35 CMOS Sensor
Sensor Size 23.4 x 15.67mm
Effective Pixels 26M
Dynamic Range 14 Stops
Lens Mount EF
Microphone Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate 6244×4168 @30fps max (Open Gate)
6144×3240 @48fps max (DCI 6K)
6144×2592 @75fps max (DCI 6K 2.4:1)
5760×3240 @48fps max (6K UHD)
5552×4164 @30fps max (5K 4:3)
4992×4160 @30fps max (5K 6:5)
4096×2160 @30fps max (DCI 4K Low Noise) *
4096×2160 @75fps max (DCI 4K) *
4096×1728 @100fps max (DCI 4K 2.4:1)
3840×2160 @30fps max (4K UHD Low Noise) *
3840×2160 @75fps max (4K UHD) *
1920×1080 @120fps max (FHD)
* Cropping / Supersampling selectable
Max Bit Rate 300 Mbps for all resolutions (H.265 & H.264)
Colour Bit-depth 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Video Encoder H.265 main 10 profile / H.264 high profile
ZRAW 12-bit & 14-bit
Audio Format 24-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4
Record Mode Video / Time Lapse Video
Settings
ISO Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 1250
Shutter Shutter Speed: Auto, Manual (1~ 1/8000)
or Shutter Angle: Auto, Manual (11.25° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Brightness / Contrast / Saturation / Sharpness
Image Config Rec.709 / Z-Log2 / FLAT / HLG
Audio Audio In / Audio Out Level
Time Code Current Time / Manual Input
Storage
Media CFAST 2.0
File System exFAT
Connectivity
HDMI HDMI 2.0 Type A
(video output up to DCI 4K @60fps, 10-bit 4:2:2)
USB USB 3.0 Type C for camera control & data transfer only
COM 2 x Serial Port
Remote Control 2.5 mm jack socket (Sony LANC compatible)
Audio-in 3.5 mm stereo jack socket for active microphone only,
or 5-pin LEMO port for dual channel XLR microphone (requires additional
XLR audio connector)
Audio-out 3.5 mm stereo jack socket
Wi-Fi 5G, 802.11n with external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Power
Battery Sony NP-F series compatible (Battery not included)
External Power Supply DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter, hot swap supported
Physical
Material Aluminium Alloy
Weight TBD
Dimensions (W x H x D) 91.2 x 99.2 x 99.1mm (without lens)
Environment
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C

6K @75fps* & 4K @100fps* max, 10-bit colour
Super 35 CMOS sensor
14 stops dynamic range
ZRAW supported
EF mount**
Gigabit Ethernet for data, control & live streaming***
* In 2.4:1 aspect ratio

** Requires Z CAM™ software running on PC

*** Requires Z CAM™ E2 sync cable (not included)
