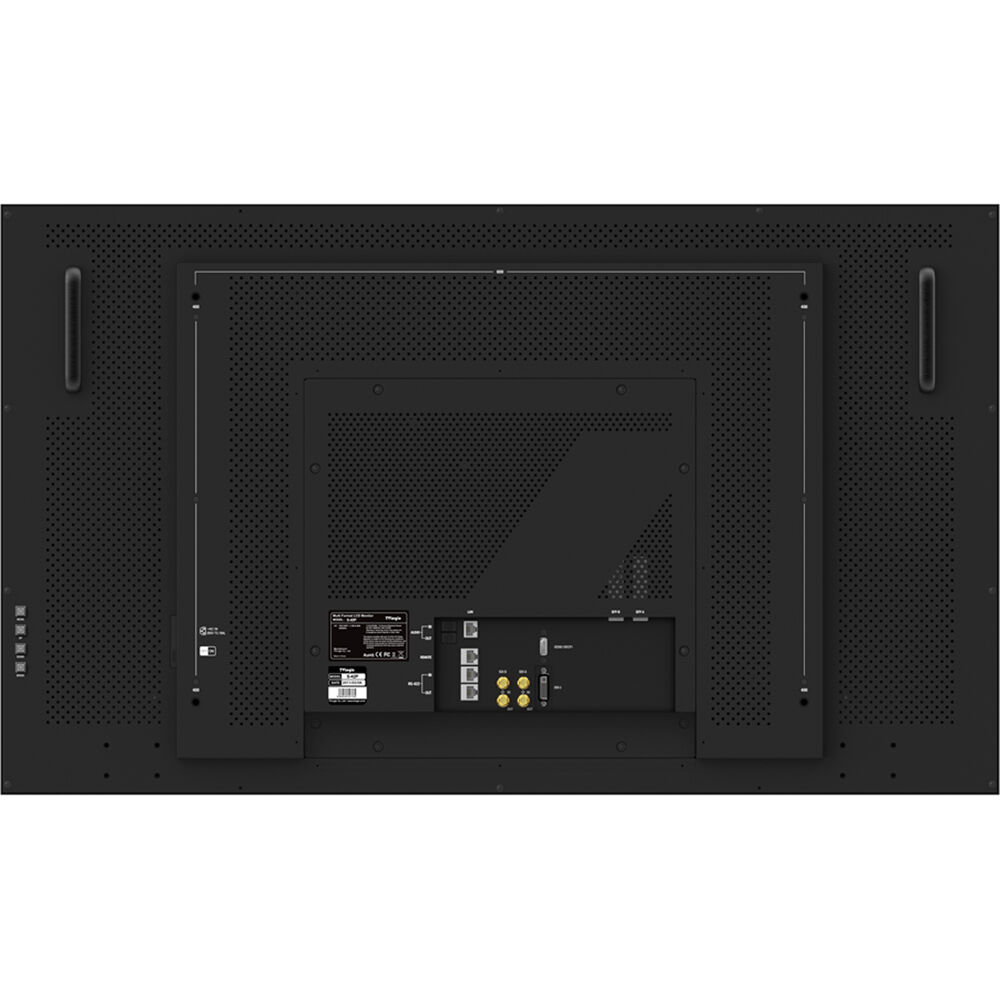

TV Logic S-42P 42in FHD Studio Wall Monitor

The S-42P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide colour gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI colour gamut.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

• PBP(Picture by Picture) – Support displaying multiple inputs on the screen at the same time.
• Time Code Display – Displays the Timecode information on the screen.
• User Aspect – Adjusts the Width /Height display ratio.
• FHD 1920 x 1080 Native Resolution
• HDR Emulation (PQ, HLG, S-Log3)
• Ember+ Protocol (LAWO)
• TSL 3.1/5.0 Support
• Selectable Output via lnternal Routing
• 2x SFP In/Out
• Various Scan Mode, Custom 3D-LUT Import (via USB), Closed Caption (CC-608/708, CC-KOR)
• Waveform, Vectorscope (High Resolution),  Audio Level Meter, UMD
