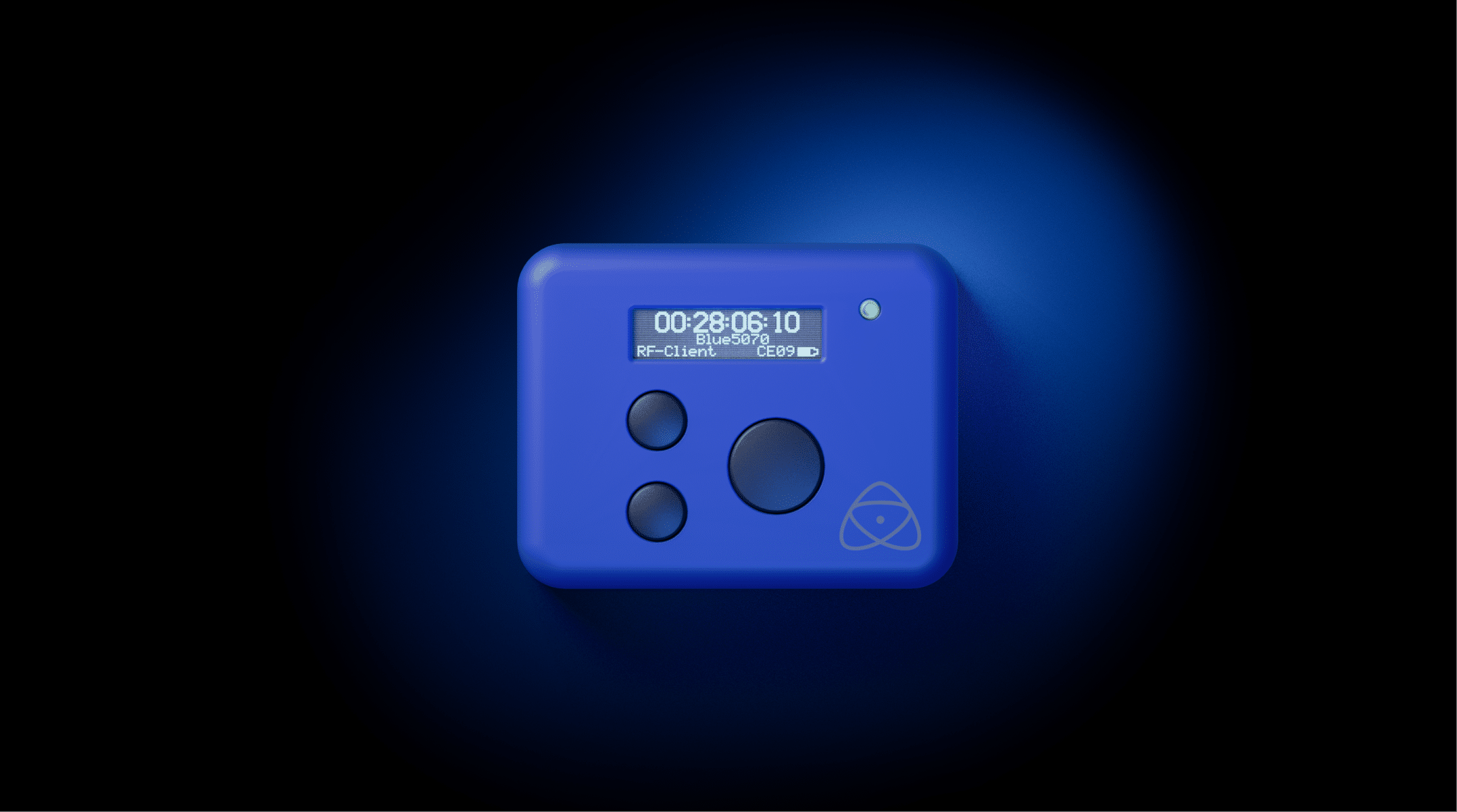

Timecode Systems UltraSync BLUE

OVERVIEW
UltraSync BLUE is a versatile and innovative product from Timecode Systems that uses Bluetooth pairing to connect and synchronize with compatible recording devices. It is currently compatible with the MAVIS professional camera app and Apogee’s MetaRecorder app for iPhone, and has the potential to work with any camera or sound recording device with Bluetooth. The patented timing protocol ensures unparalleled accuracy for the exchange of timecode, which is embedded into the media file and recognized by professional NLEs. With the ability to sync up to four devices over Bluetooth or connect to a Timecode Systems RF network, UltraSync BLUE offers more convenience and versatility for shooting from creative angles with smaller, mobile cameras.

One of the most exciting features of UltraSync BLUE is its compatibility with iPhones, providing a way to sync footage professionally with sub-frame accuracy. The team at Zoom Corporation is also working on updates for their H3-VR Handy Recorder and F8n MultiTrack Field Recorder, which will allow them to receive timecode over Bluetooth from the UltraSync BLUE. It is important to note that UltraSync BLUE does not have a built-in WiFi connection and requires a :pulse master unit in the network to connect to the free BLINK Hub app for status monitoring and control. Overall, UltraSync BLUE offers a convenient and efficient way to sync multiple devices for professional shoots.

INCLUDED IN BOX
1 x Timecode Systems UltraSync BLUE
1x USB-C Charging Cable

About The Timecode Systems UltraSync BLUE
UltraSync BLUE is the first product from Timecode Systems to use Bluetooth® pairing to connect and synchronise compatible recording devices. Once connected, timecode is transmitted wirelessly from the UltraSync BLUE directly into the media file of a connected device. There are no cables and no mounting issues, giving more freedom to shoot from creative angles with smaller, more mobile cameras.

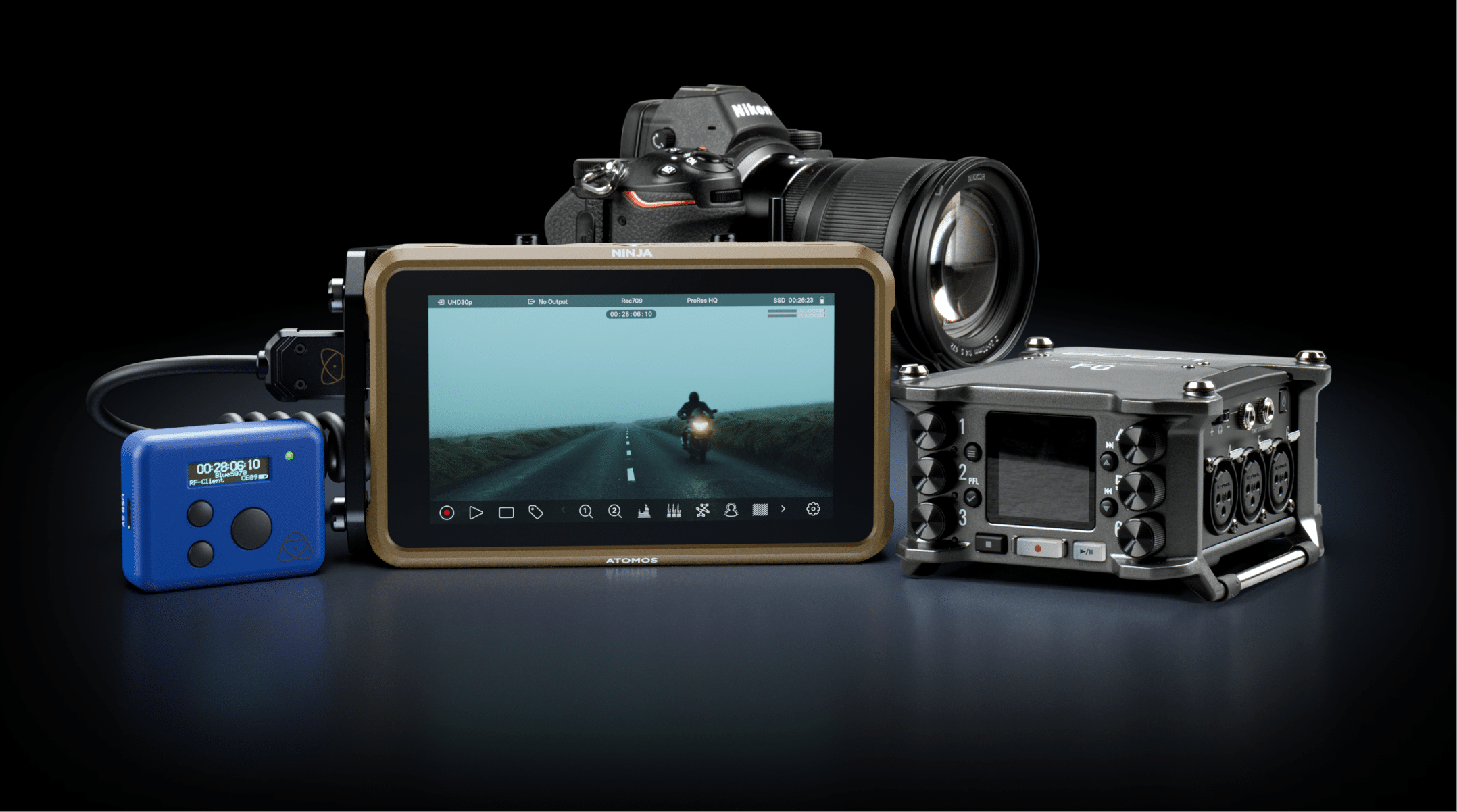

By removing the restrictions of a wired connection, crews not only gain extra convenience, they also get even more versatility to choose how they sync. Use a single UltraSync BLUE unit to sync up to four recording devices shooting in close range over Bluetooth®. Or alternatively, connect the UltraSync BLUE to a Timecode Systems RF network and sync to other camera and audio recorders using Timecode Systems units on the same channel.

It can even sync iPhones, providing an efficient way to integrate iPhone footage into professional shoots. The MAVIS professional camera app and Apogee’s MetaRecorder app (both for iPhone) are fully compatible with UltraSync BLUE. For the first time, there is a way to sync iPhones professionally, with sub-frame accuracy.

The team at Zoom Corporation are currently working on new releases of H3-VR Handy Recorder and F8n MultiTrack Field Recorder. When released later this year, both of these Zoom sound recorders will have the ability to receive timecode over Bluetooth from the UltraSync BLUE.

Please note: The UltraSync BLUE does not have a built in WiFi connection. A :pulse master unit is required in your network to connect to BLINK Hub. When in slave mode to a :pulse, the UltraSync BLUE will appear in the BLINK Hub for status monitoring and control, just like other Timecode Systems’ products.

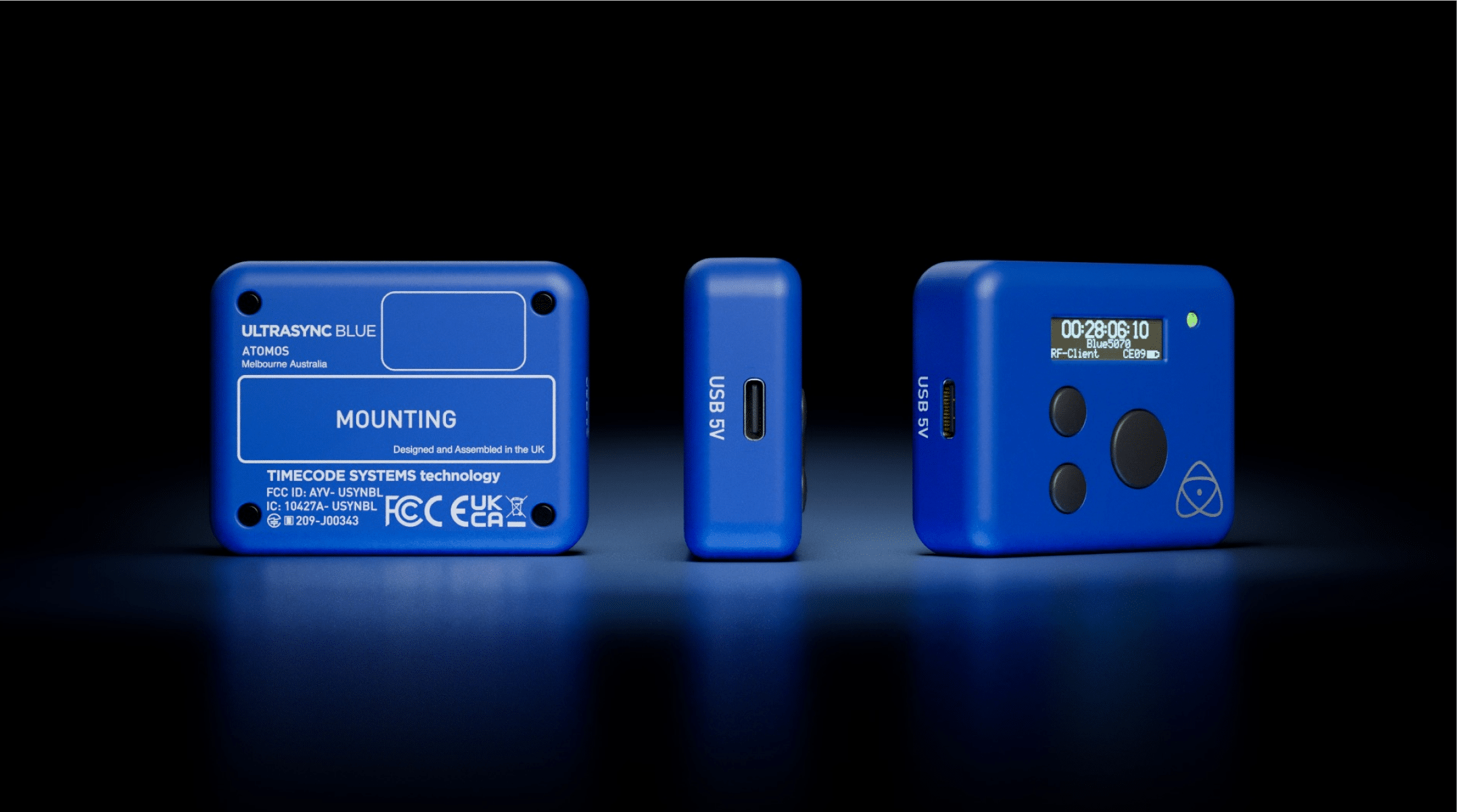

Dimensions 55mm x 43mm x 17mm
Weight 36g
OLED display Blue 128 × 32 Pixels
Battery Life approx. 20 hrs
Charging time approx. 3.5 hrs
External power USB-C (5V DC)
LTC Input / Output Via Bluetooth output only
Sync Output No
Frame rates 23.98, 24.00, 25.00, 30.0D (drop frame), 30.00, 29.97D (drop frame), 29.97
Digital RF network Yes – 865.050 MHz to 923.200 MHz
BLINK Hub Yes
Connectors Bluetooth
Connected External Devices Up to four for LTC
Range approx. 200m
Display 128 x 32 pixels OLED display
BLINK Communication between units over BLINK RF
BLINK Hub Monitor & control from the BLINK Hub app

UltraSync BLUE is currently compatible with the MAVIS professional camera app and Apogee’s MetaRecorder app, both for iPhone.
Designed to work seamlessly with the rest of the Timecode Systems product range.
It has the potential to work with any camera or sound recording device with Bluetooth®. Please check timecodesystems.com for updates on integrations with other hardware and apps.
UltraSync BLUE uses a patented, timing protocol that delivers unparalleled accuracy for the exchange of timecode over Bluetooth®.
Timecode is embedded into the media file and automatically recognised by professional NLEs.
After first set-up, UltraSync BLUE remembers and automatically recognises your device.
Use a :pulse as the timecode master to connect the UltraSync BLUE to the free BLINK Hub app. This unlocks the advanced capability to view, status monitor and control the UltraSync BLUE as part of a Timecode Systems workflow.
