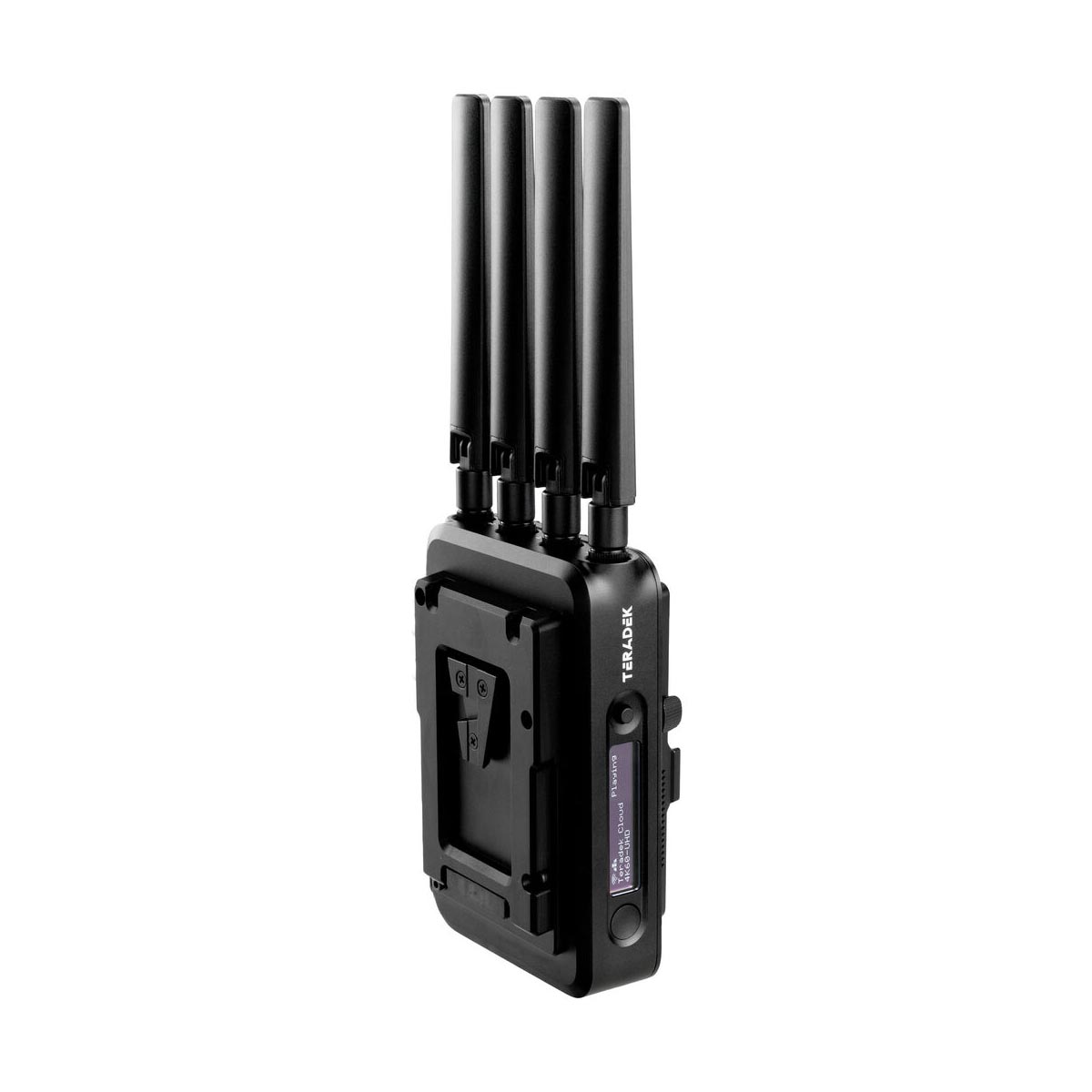

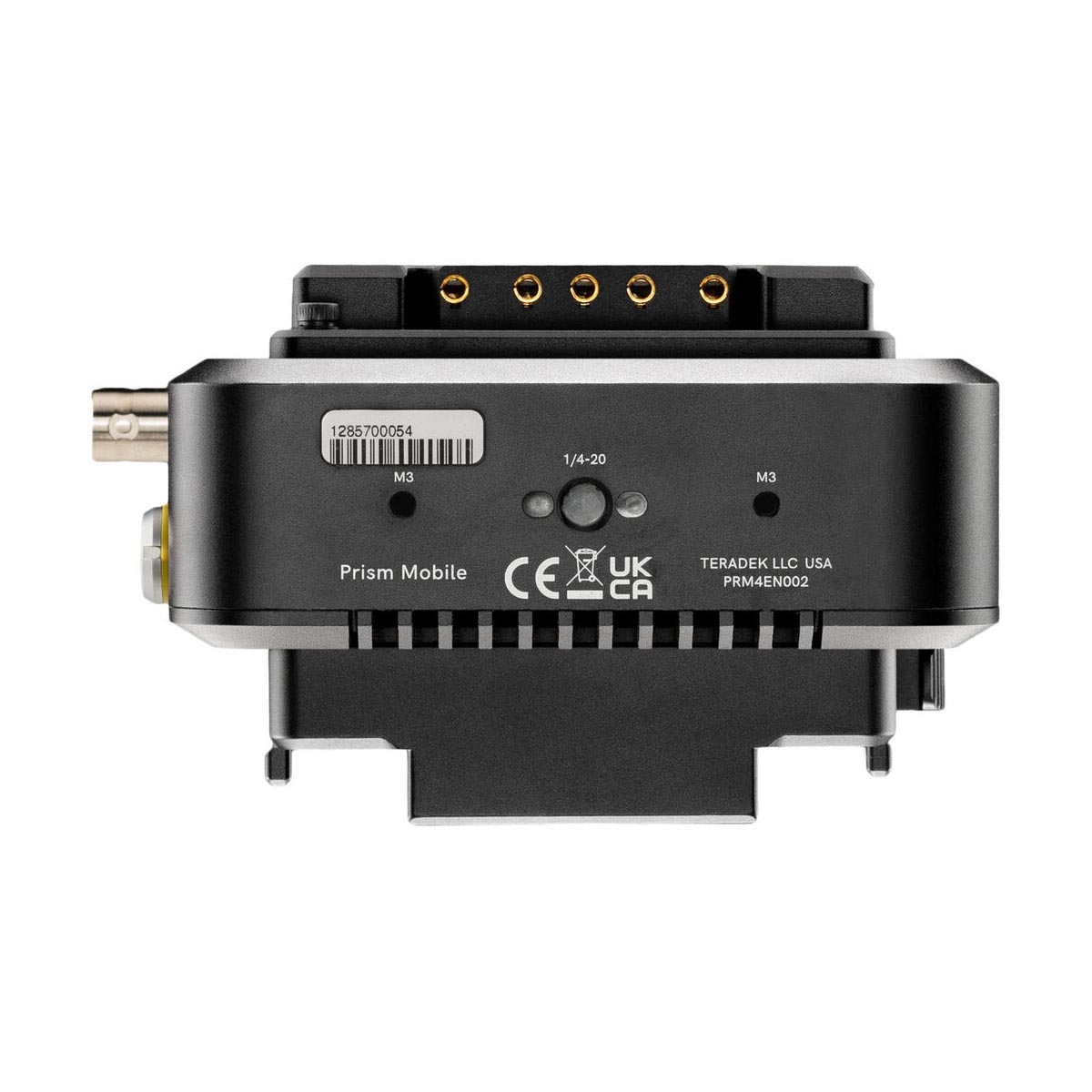

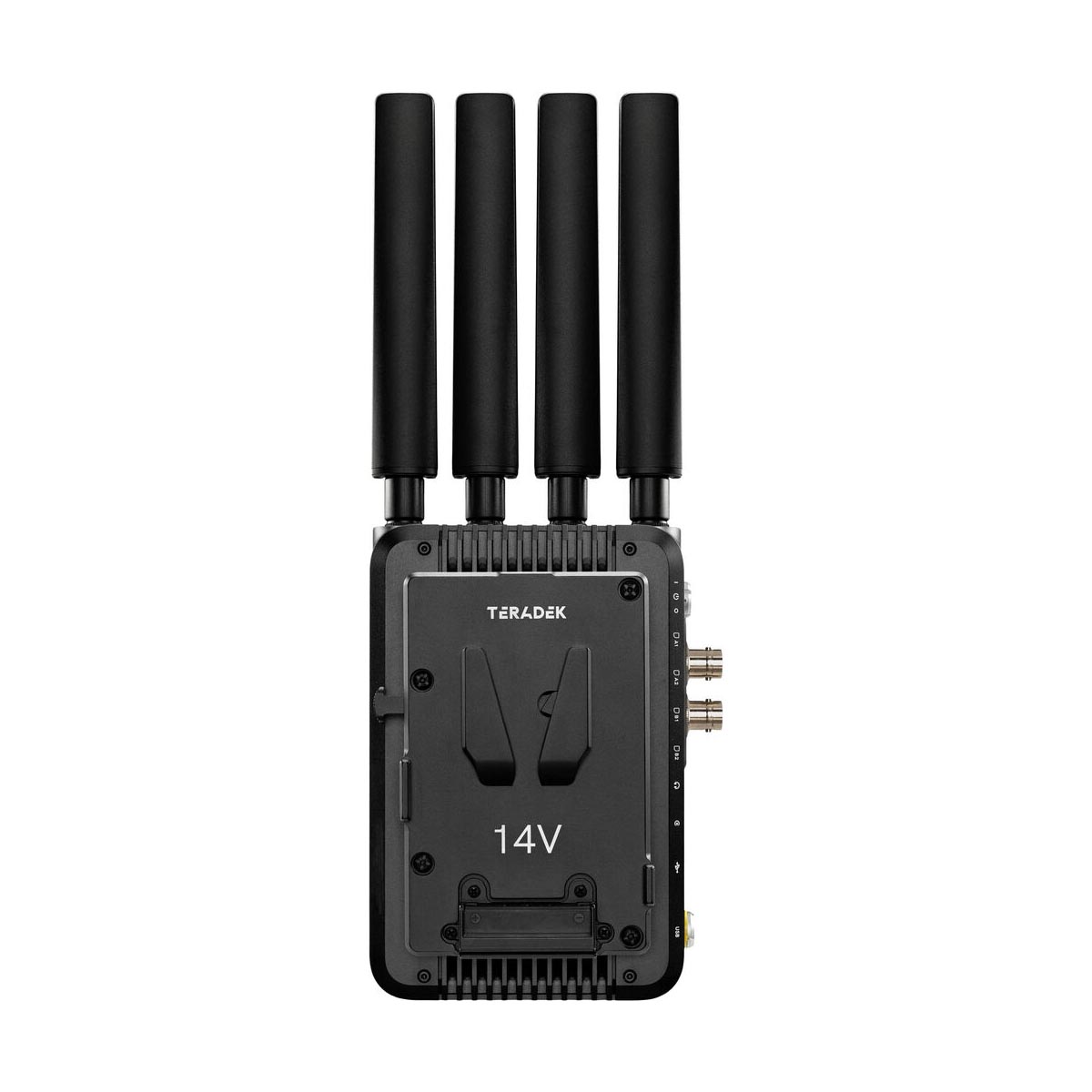

Teradek Prism Mobile Mk II Encoder VM

OVERVIEW
Prism Mobile is a compact and reliable bonded cellular video encoder that is perfect for live coverage on the go and camera-to-cloud workflows. It features two built-in 5G or LTE modems with high-gain antennas, making it ready for CBRS and private mobile networks. With built-in network bonding, HEVC/AVC compression, and 12G-SDI & HDMI I/O, Prism Mobile can deliver up to 4K60 10-bit HDR video with 8 channels of audio and support for multiple protocols. It also has a low-SWaP design, weighing only 864g with battery plates, and offers up to 3 hours of runtime with a Gold Mount battery.

Prism Mobile is compatible with the Core Cloud platform and has a Prism app for iOS and Android devices. It also offers local control SDK and is capable of on-board recording, store and forward, and camera-to-cloud workflows. With its mission-critical network bonding, Prism Mobile can bond up to 9 network connections for maximum redundancy. It is the ultimate contribution encoder for live coverage from the field, offering low latency, multi-track audio, and bonded cellular connectivity. Prism Mobile is available in two models, 5G and Mk II LTE, and supports private mobile networks for the most critical applications.

About The Teradek Prism Mobile Mk II Encoder VM
Stream On The Go Over 5G / LTE Networks – The most resilient bonded cellular codec for live coverage from the field.

Prism Mobile is the most compact bonded cellular video encoder in its class, delivering reliable 4K HDR streaming from the most challenging locations for live coverage on the go and camera-to-cloud workflows.

Mission-Critical Network Bonding: Get exceptional worldwide internet connectivity virtually anywhere with two internal high-throughput Node modems with high-gain antennas uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond* up to 9 network connections across cell phone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) – ensuring your stream never misses a beat.

Achieve Prism’s true potential with Core, Teradek’s streaming media orchestration platform. Core allows you to securely monitor, manage, route, distribute, and archive your live video feeds from anywhere in the world.

The Bonded Cellular Solution

Compact, low profile, and loaded with 5G connectivity, Prism Mobile is the ultimate contribution encoder for live coverage from the field.

Low Latency

As low as 250ms over cellular

Multi-Track Audio

Up to 8 channels

Bonded Cellular

Up to 9x connections

Built-In Modems

2x 5G / LTE

From HD to 4K

4:2:2 | 10-bit HDR

On-Board Recording

Camera to Cloud ready

Portable Connectivity – Mission-Critical Network Bonding

Get exceptional worldwide internet connectivity virtually anywhere you go with two internal high-throughput Node 5G modems uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond* up to nine network connections across Cellphone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) – ensuring your stream never misses a beat.
*Core subscription or Debonding license required.

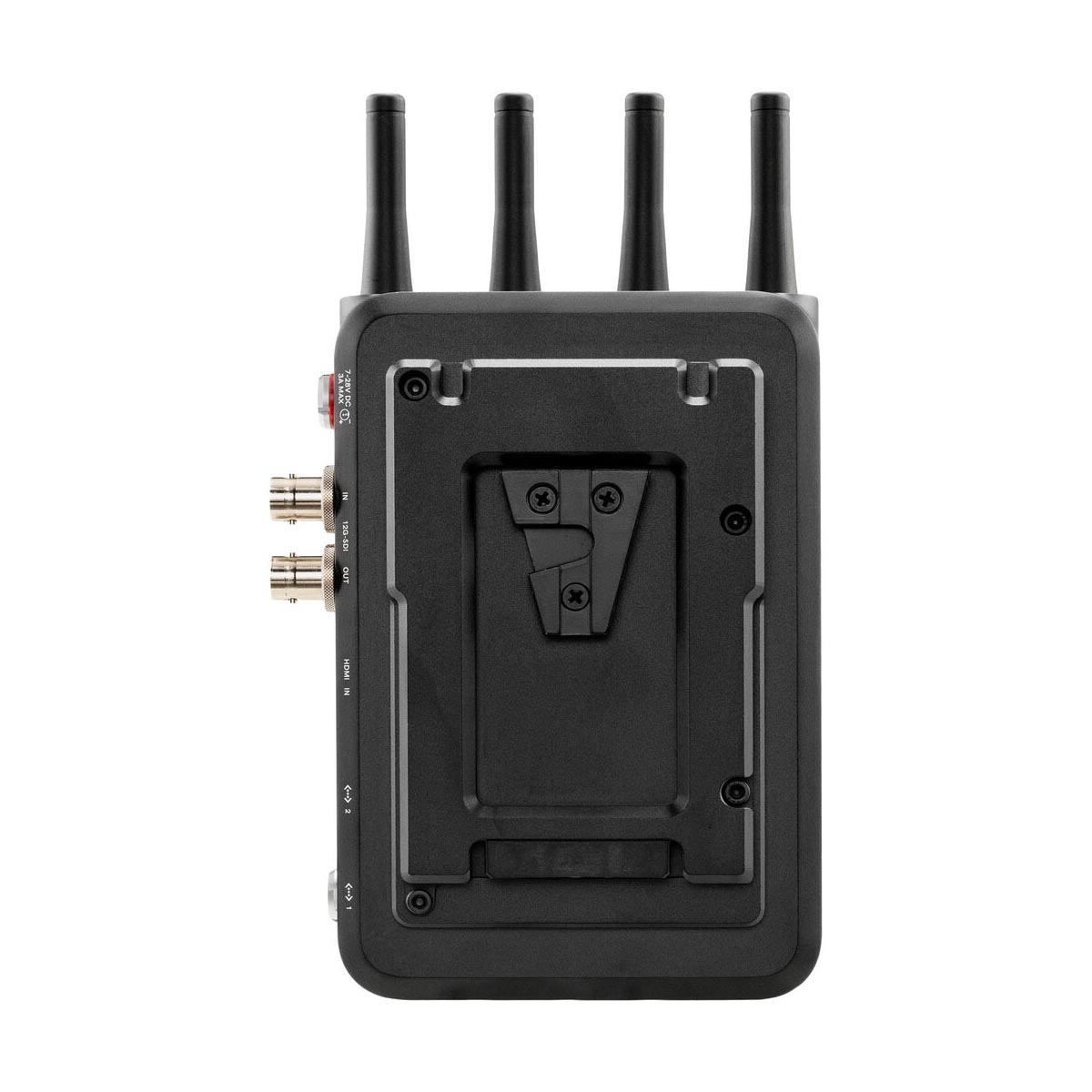

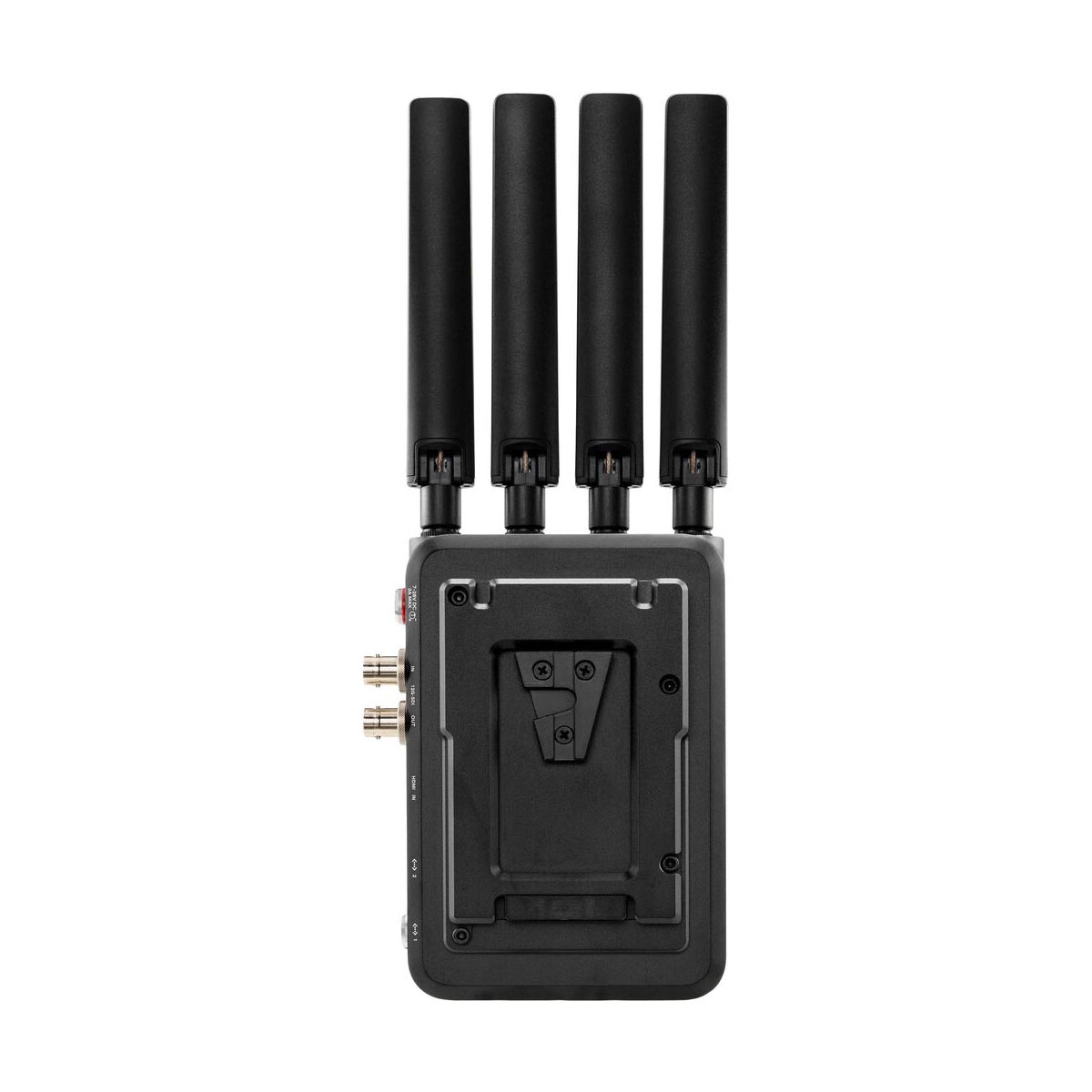

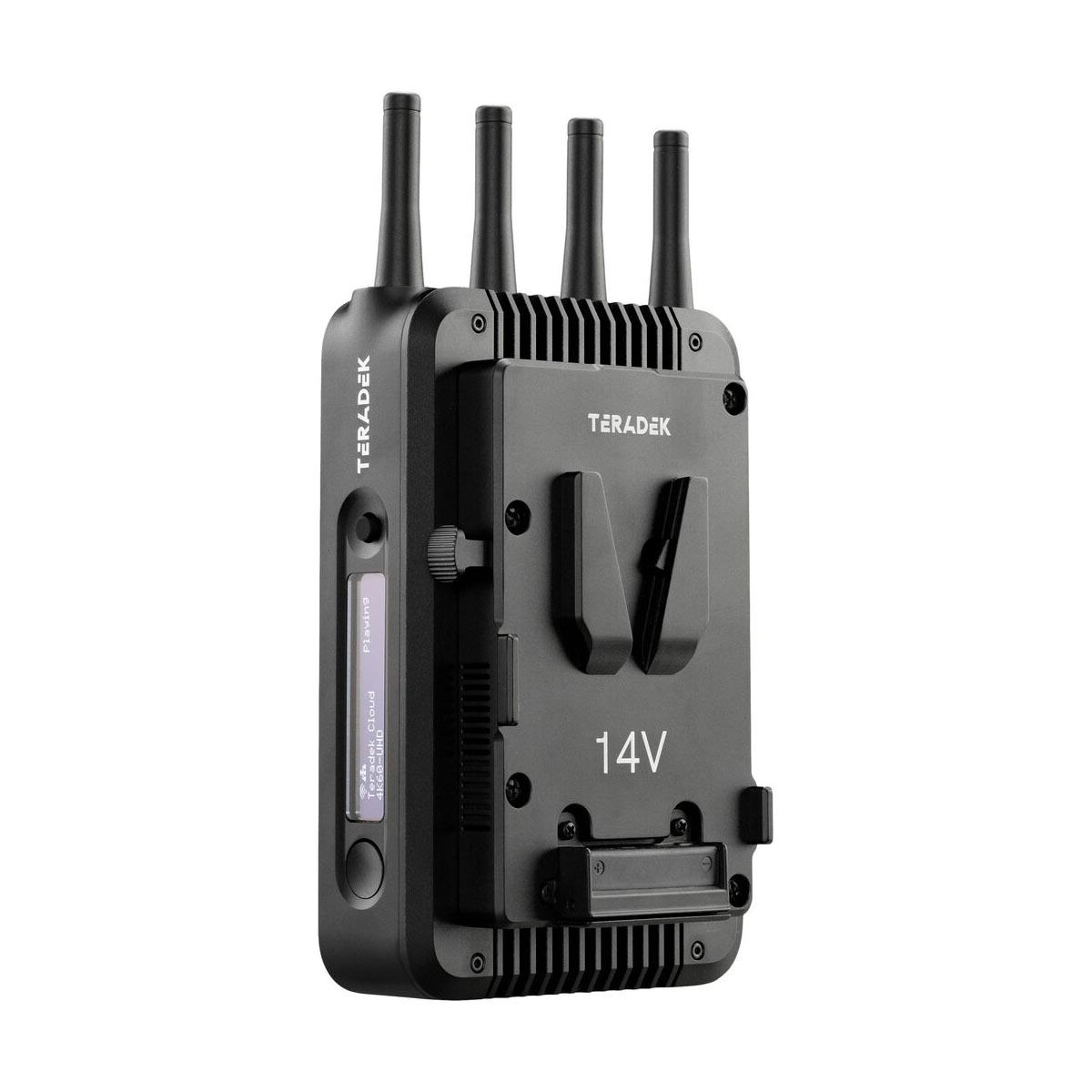

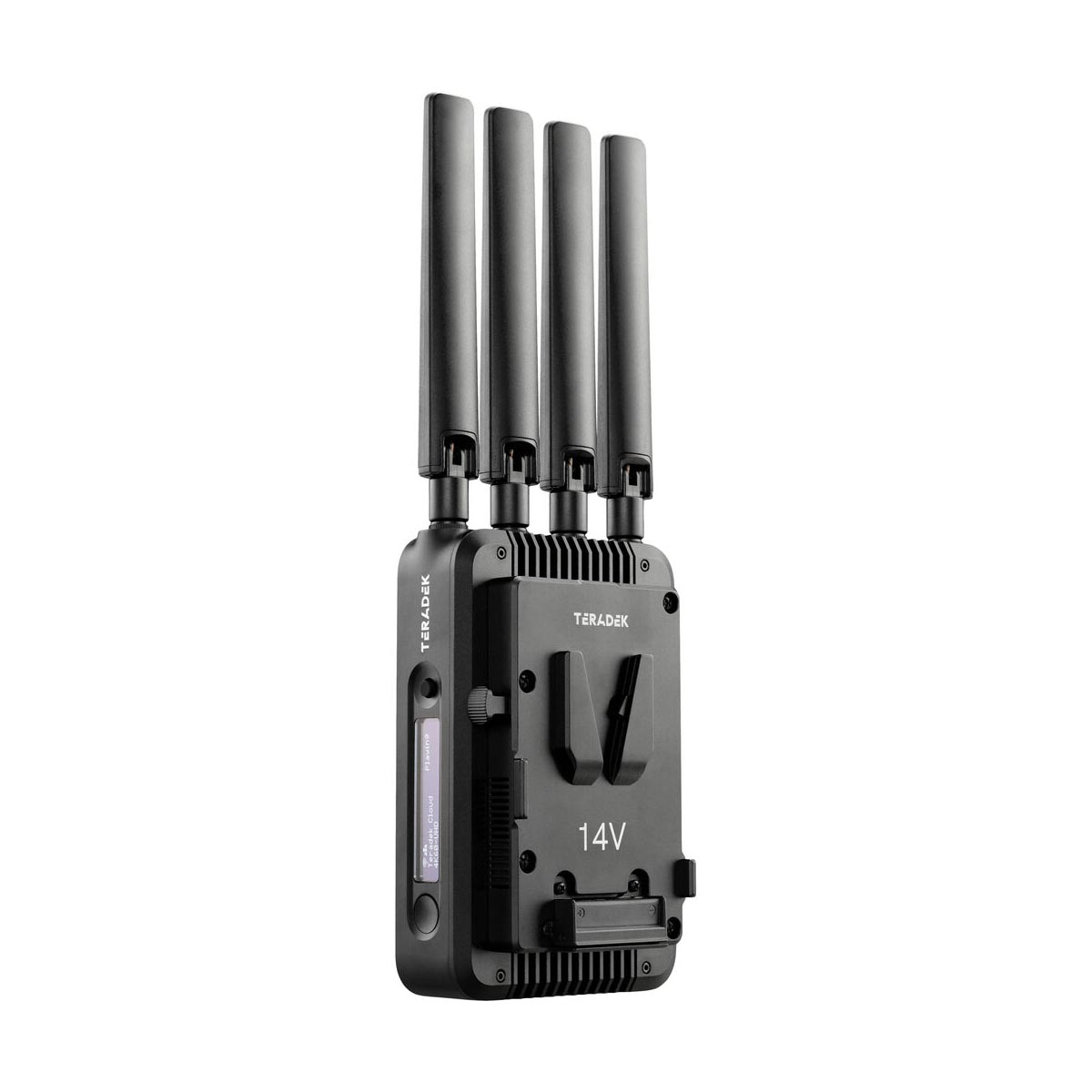

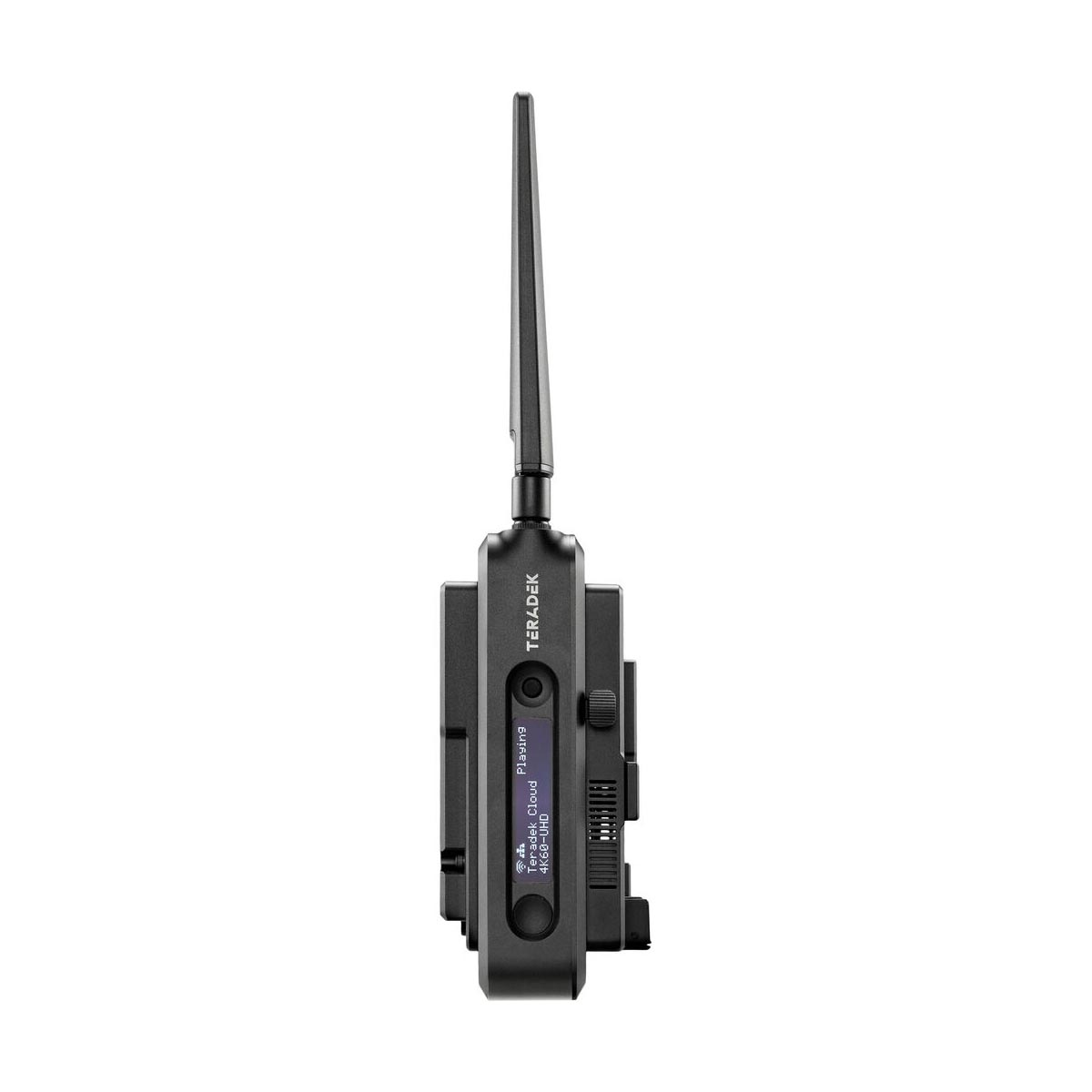

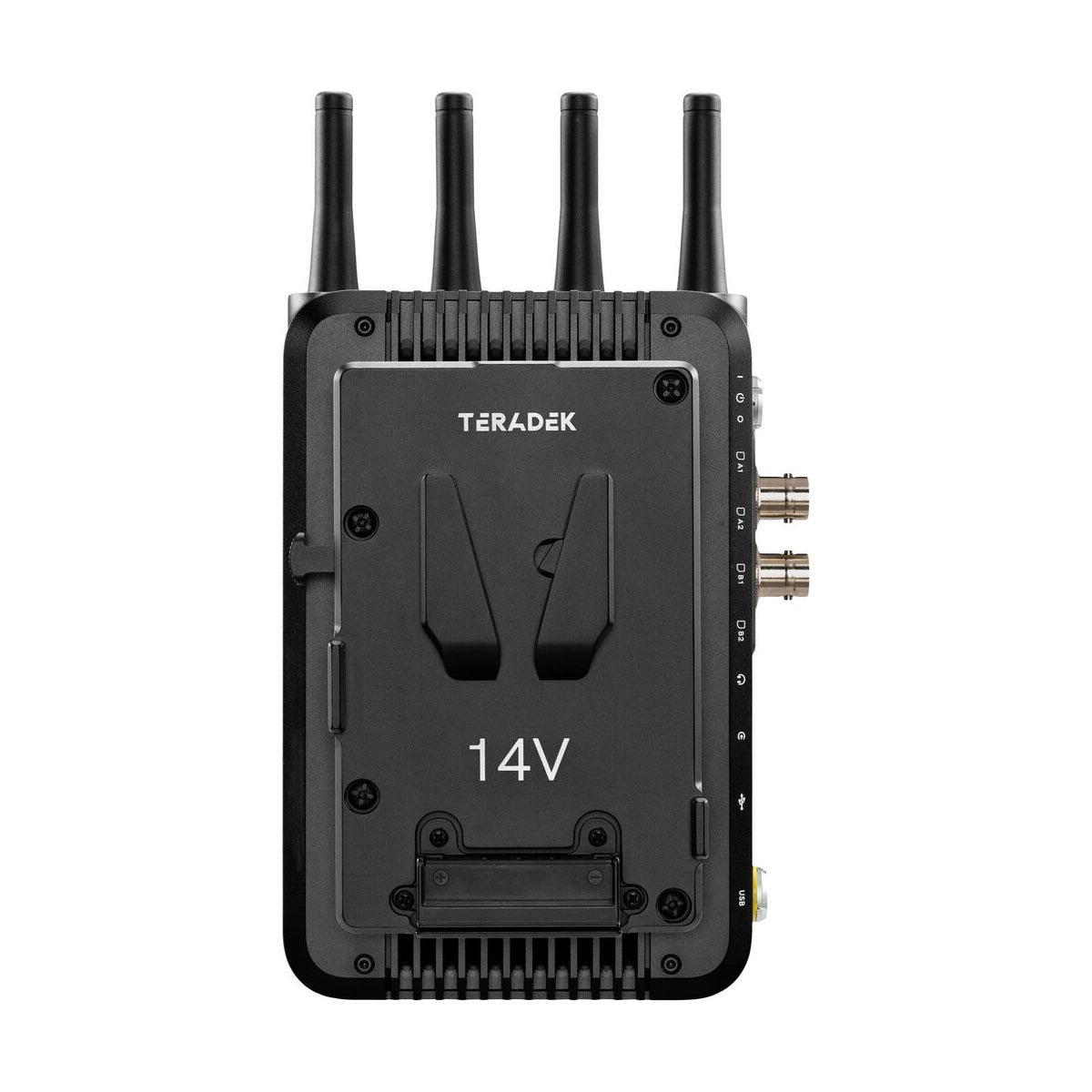

NEW DESIGN – Camera-Back On-The-Go Design

Prism Mobile is available in two models, both capable of operating on private mobile networks: The 5G with dual internal 5G modems, and Prism Mobile Mk II with dual internal LTE modems. For studio or fixed workflows, Prism Mobile is also available as a desktop solution.

High Performance Modems

Prism Mobile’s internal 5G / LTE modems offer dual SIM profiles, global connectivity, and cutting-edge speeds, as well as a set of high gain antennas to maximize connectivity within stadiums and challenging network environments.

5G and LTE Models

Choose between the advanced 5G model or the deep value Mk II LTE version. Both systems provide high- performance cellular connectivity in camera-back or desktop form factors. For additional bandwidth, an extra Node modem can be attached to either unit via a locking USB connector.

Private Mobile Networks

Prism Mobile 5G and Mk II support CBRS and private mobile networks, allowing broadcasters to deliver live video over high availability, highly reliable wireless infrastructure for the most critical applications.

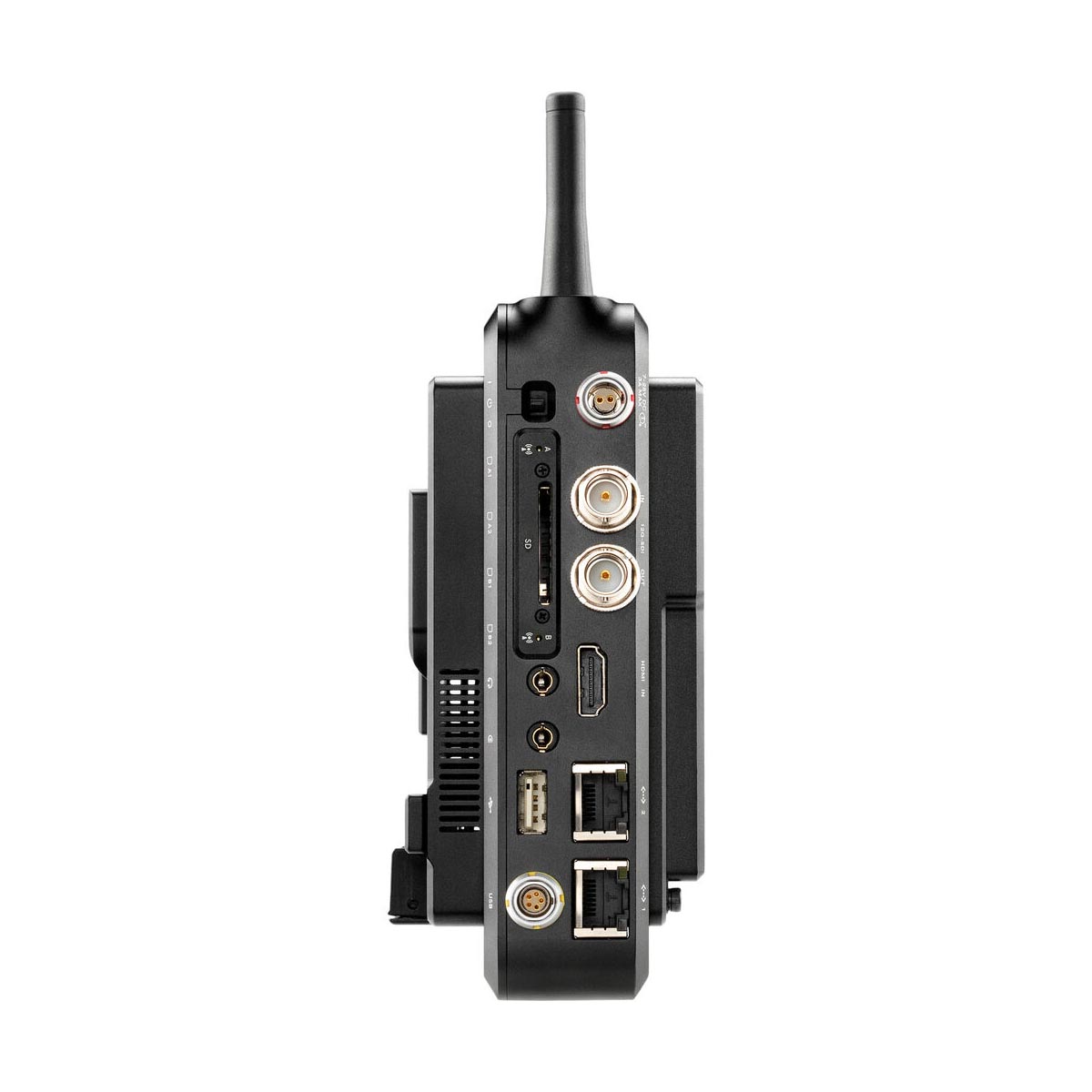

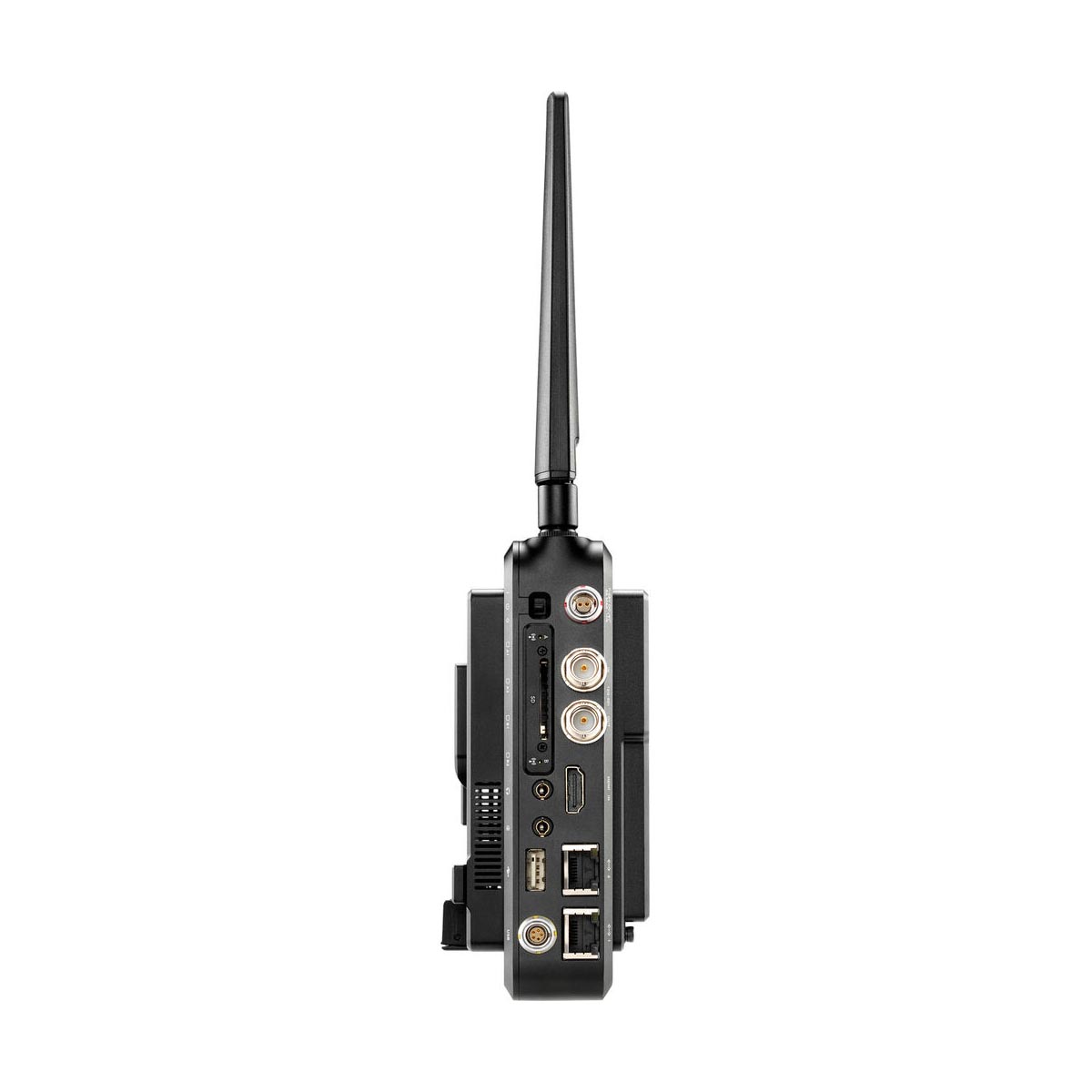

Video Inputs 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1x HDMI 2.0 Type-A receptacle
Video Outputs 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Supported Resolutions 4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i, 480i
AUDIO
Audio Compression AAC-LC
Audio Bitrate 32kbps to 512kbps
Audio Sample Rate 48kHz
Audio Input Embedded over SDI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain
Audio Output 3.5mm Stereo Headphone output
IFB Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A) PROTOCOL SUPPORT Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Supported Video Transport Protocols Teradek Reliable Transport (TRT), Teradek Bonding Protocol, Secure Reliable Transport (SRT), Reliable Internet Stream Transport (RIST), RTMP/RTMPS, MPEG-TS DASH (UDP, TCP, TCP Server, Multicast), RTSP/RTP, HLS Server, Integrated CDNs (YouTube, Facebook, Vimeo), Airmix, WHIP Remote Management Teradek Core Cloud, Private SDK VIDEO PROCESSING Video Compression/Decompression ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 AVC: Baseline, Main, High ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 HEVC: Main Supported Video Bitrate 250 Kbps to 85 Mbps Video Format Conversion Support Built in video scaler and deinterlacer HDR Support Yes (2020-PQ, 2020-HLG, P3D65-PQ) Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) Bonding Teradek Bonding Protocol, Teradek Reliable Transport (TRT) Recording SD Card - Full size, USB Drive, NFS Camera to Cloud Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion, Avid PHYSICAL ATTRIBUTES Dimensions 5.9”W x 3.9”D x 1.3”H [162 x 92 x 35mm] Weight 23.4oz [664g] without plates; 30.5oz (864g) with plates Construction Milled aluminum Mounting Options V Mount Can be mounted using the 1/4” 20 mounting holes Additional Modem Mounting Prism Mobile Node Bracket via 1/4-20 and 2x M3 machine screws. INTERFACES Configuration Interface Core Cloud for remote device management, Feature-rich Web UI for local device management, Intuitive iOS configuration app (Prism App), OLED Status Display w/ Nav control buttons Cellular 2x Internal Node 5G SW modems (CBRS supported) USB Interface Functionality 1x Powered LEMO with Node Modem support 1x Powered USB-A with external storage support Ethernet 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45) Wireless WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration POWER Power Input 2-pin circular locking connector, Gold, Gold 26V and V-Lock Battery Plates Voltage 6-28V DC Nominal Power Consumption 20W Nominal, 36W Max LICENSABLE FEATURES Enable Extra Streams Extra simultaneous destinations Enable Decoding Enabled ability to decode to SDI output Two built-in 5G or LTE modems with high-gain antennas CBRS & Private Mobile Network ready Built-in Network Bonding HEVC / AVC Compression 12G-SDI & HDMI I/O UP TO 4K60 10-bit HDR Video 8 Ch. Audio | 5.1 & 7.1 Surround Sound Licenses for Return Video and Multi-Output. Low-SWaP Design: 864g with Battery Plates Gold Mount: 3hr Runtime** On-Board Recording, Store and Forward and Camera-To-Cloud Ready (Core, Frame.io, Sony C3 Portal, Sony Ci, PIX, AVID) Multiple Protocols: SRT, MPEG-TS, RTMP(S), RTP, RIST, RTSP, TRT, HLS, DASH, WHIP Prism app for iOS and Android Core Cloud compatible, Local Control SDK available *Core subscription or Debonding License required **Tested in ideal conditions with a 90Wh battery.
