Teradek Prism Mobile Backpack MK II 2 X 5G GM




Prism Mobile has recently expanded its capabilities by allowing users to stream from 2 to 6 Node Modems simultaneously. This means that users can now have up to 6 cellular connections for super robust streaming from any location. To learn more about the Node modems, click here.

In addition to the Node modems, Prism Mobile also offers the Prism Mobile Backpack, which can expand the device’s cellular streaming capabilities by up to 4 additional 5G modems. When combined with the built-in cellular connectivity of the Prism Mobile, users can have a total of 6 simultaneous cellular connections for even stronger streaming. The backpacks are compatible with all Prism Mobile devices, making it an essential accessory for anyone looking to enhance their streaming experience.

This text is summarized by AI

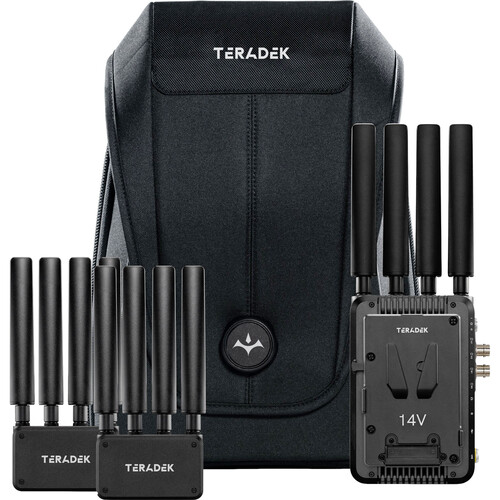

1x Prism Mobile Mk II Gold Mount
1x Backpack Bonding Assembly with Cabling
2x Node 5G
12x Long Multi-band SMA Antenna
4x Short Multi-band SMA antenna
1x 3.0A PTAP power supply

About The Teradek Prism Mobile Backpack MK II 2 X 5G GM
Click here to learn more about our Node modems.

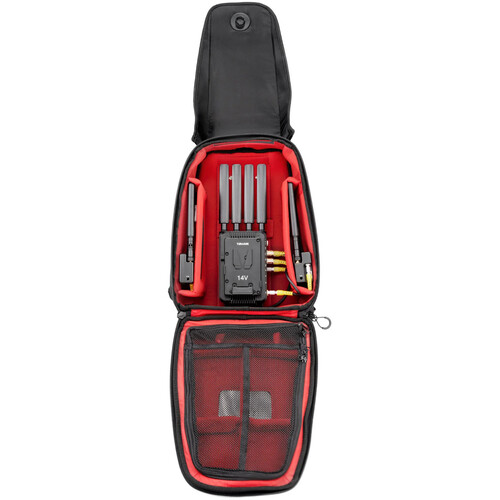

Expand your Prism Mobile’s capabilities with the Prism Mobile Backpack, the essential accessory to expand your cellular streaming by up to 4 additional 5G modems. Combined with Prism Mobile’s built-in cellular connectivity, the backpack provides up to 6 simultaneous cellular connections for super robust streaming from any location. The backpacks are compatible with all Prism Mobiles.

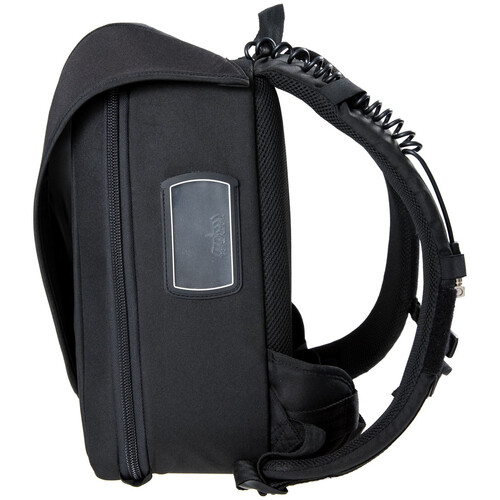

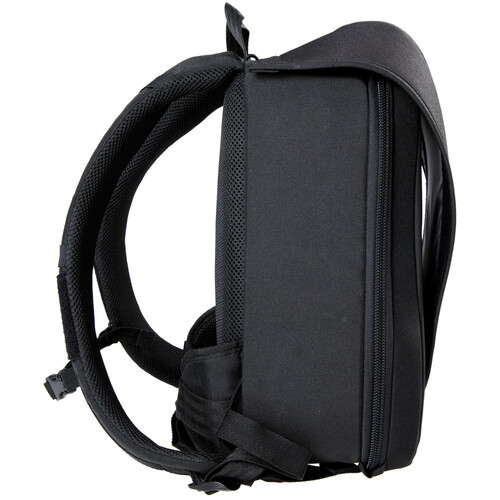

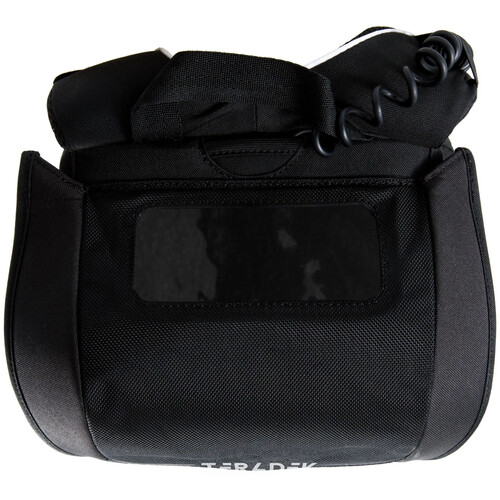

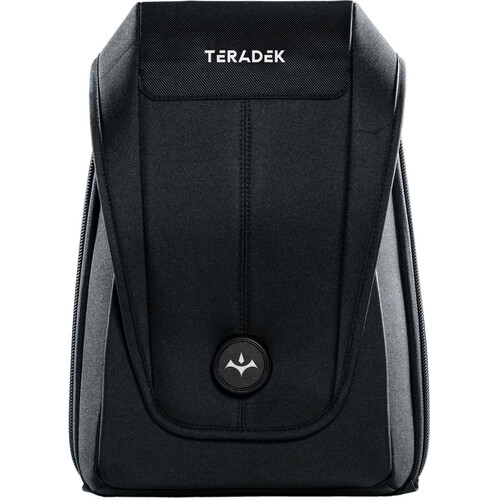

Prism Mobile Backpack
Bonding Support for up to 4 additional Node Modems using 5-pin connectors and external power
Supported Modems Node II
Node 5G
Power Input Requires external power from standard PTAP adapter, Gold, V-Lock Battery Plates NOTE: 26V IS NOT SUPPORTED.
Recommended Battery: Anton Bauer Batteries
Prism Mobile 5G
Video Inputs 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
1 x HDMI 2.0 Type-A
Hdr Support Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Video Outputs 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
Supported Modes Single Encode, Bi-directional Encode/Decode (additional license)
Bonding Teradek Bonding Protocol, Teradek Reliable Transport (TRT)
Supported Resolutions 4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i 480i
Video Compression ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main
Supported Video Bitrate 250 kbps to 85 Mbps
Video Format Conversion Support Built in video scaler and deinterlacer
Number Of Encoder Streams Up to one 4KDCI p60 4:2:2 10bit
Color Correction CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Protocol Support
Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, TLS, IGMP
Supported Video Transport Protocols Teradek Reliable Transport (TRT)
Secure Reliable Transport (SRT)
MPEG-TS, DASH (UDP, TCP, TCP Server, Multicast)
HLS Client
Integrated CDNs (YouTube, Facebook, Vimeo),
Remote Control Teradek Core Cloud, Private SDK
Audio Processing
Audio Compression AAC-LC
Audio Bitrate 32kbps to 512kbps
Audio Input Embedded over SDI
3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Audio Output 3.5mm Stereo Headphone output
Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A) Physical Dimensions 5.9"W x 3.9"D x 1.3"H [162 x 92 x 35mm] Weight 23.4oz [664g] without plates; 30.5oz (864g) with plates Construction Milled Aluminum Mountability Camera-back, Gold, Gold 26V and V-Lock mounts. Can be mounted with 1/4" 20 mounting hole Interfaces Configuration Interfaces Core Cloud for remote device management Feature-rich Web UI for local device management Intuitive iOS configuration app OLED Status Display w/ Nav control buttons Cellular 2x Internal Node 5G - SW Modems (CBRS supported) Recording Storage SD Card - Full size, USB Drive, NFS Cloud Services Native Sync with the following: Core Cloud Frame.io Sony Ci Sony C3 Portal Avid PIX Moxion Usb Interface Functionality 1 x Powered LEMO with Node Modem support 1 x Powered USB-A with Node and external storage support Network Ethernet 2 x 10/100/1000 BASE-T Gigabit Ethernet (RJ45) Wireless WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration Power Power Input 2 Pin Circular Locking Connector Nominal Power Consumption 20W Nominal, 36W Max Auxilary Power Input 6-28V DC Expands Prism Mobile to stream from 2 to 6 x Node Modems simultaneously
