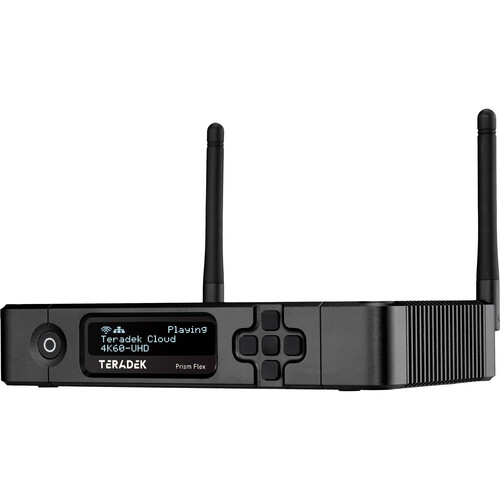

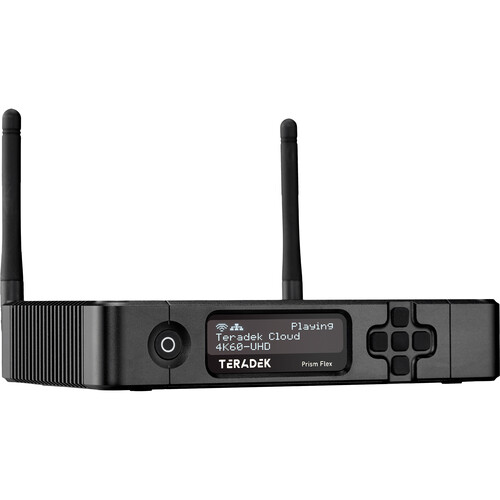

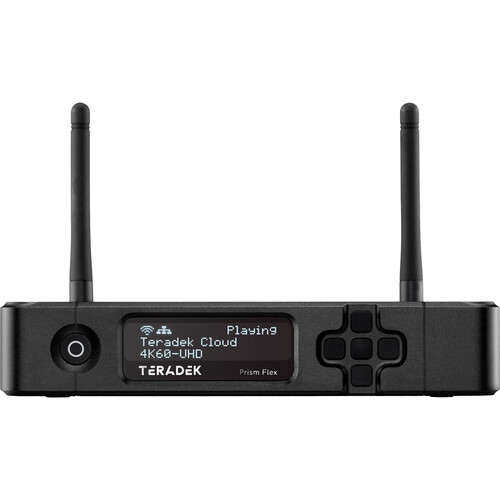

Teradek Prism Flex Mk II

OVERVIEW
With a flexible I/O and compact, low-SWaP design, Prism Flex Mk II easily fits into any workflow. Flex Mk II is perfect for placement on a table top, camera-top, or wedged between your video switcher and audio mixer. Flex Mk II can encode or decode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity. The Prism platform supports many common streaming protocols such as TRT, SRT, MPEG-TS, RTSP/ RTP and RTMP(S), and can be connected to Teradek’s Core Cloud platform for even more flexibility
Ultra HD, Ultra-Low Latency – Secure, reliable, and the best value in hardware IP video codecs.

Secure, reliable, and the best value in 4K HDR streaming, Prism Flex Mk II is the professional’s choice for a live production multi-tool. Flex Mk II gives you ultra-low latency, 4K HDR streaming in a low-SWaP form factor that fits seamlessly into any video workflow.

Achieve Prism’s…

About The Teradek Prism Flex Mk II
With a flexible I/O and compact, low-SWaP design, Prism Flex Mk II easily fits into any workflow. Flex Mk II is perfect for placement on a table top, camera-top, or wedged between your video switcher and audio mixer. Flex Mk II can encode or decode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity. The Prism platform supports many common streaming protocols such as TRT, SRT, MPEG-TS, RTSP/ RTP and RTMP(S), and can be connected to Teradek’s Core Cloud platform for even more flexibility

Ultra HD, Ultra-Low Latency – Secure, reliable, and the best value in hardware IP video codecs.

Secure, reliable, and the best value in 4K HDR streaming, Prism Flex Mk II is the professional’s choice for a live production multi-tool. Flex Mk II gives you ultra-low latency, 4K HDR streaming in a low-SWaP form factor that fits seamlessly into any video workflow.

Achieve Prism’s true potential with Core, Teradek’s streaming media orchestration platform. Core allows you to securely monitor, manage, route, distribute, and archive your live video feeds from anywhere in the world.

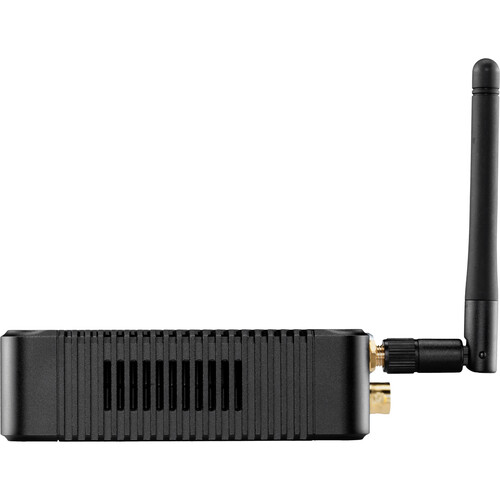

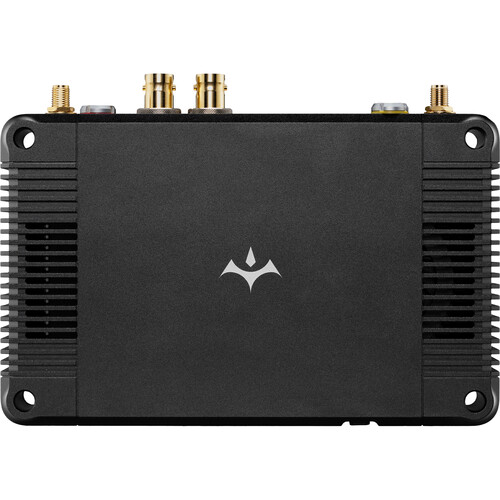

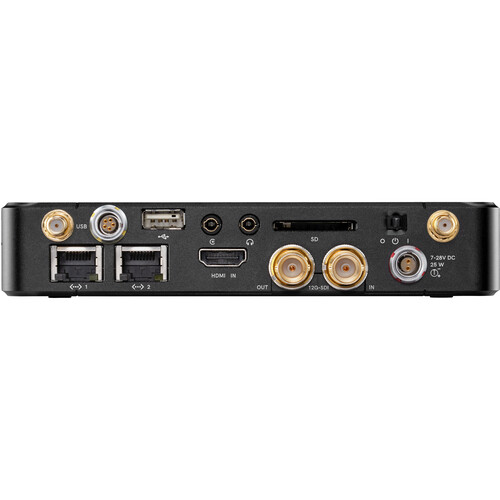

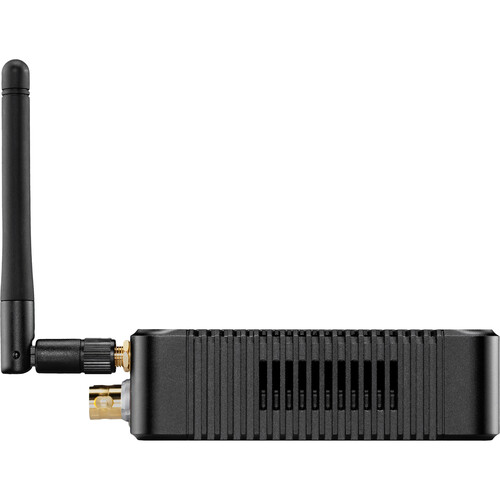

Desktop Design – Hardware Overview

Prism Flex Mk II’s compact, multi-I/O, low-power design can squeeze into small spaces – making it easyto integrate into any workflow.

VIDEO
Video Inputs 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1x HDMI 2.0 Type-A receptacle
Video Outputs 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Supported Modes Single Encode, Bi-directional Encode/Decode (additional license)
Supported Resolutions 4K DCI p23.98/24/25/29.97/30/59.94
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i
AUDIO
Audio Compression AAC-LC
Audio Bitrate 32kbps to 512kbps
Audio Sample Rate 48kHz
Audio Input Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain
Audio Output 3.5mm TRRS Stereo Headphone output, adjustablegain
IFB Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A) LICENSABLE FEATURES Enable Extra Streams Extra simultaneous destinations Enable Decoding Enabled ability to decode to SDI output De-Bonding Decoder N/A VIDEO PROCESSING Video Compression/Decompression ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ ITU H.264 AVC: Baseline, Main, High ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 HEVC: Main Video Bitrate 250 Kbps to 85 Mbps Video Format Conversion Support Built in video scaler and deinterlacer Number of Encoded/Decoded Streams Up to one 4KDCI p60 4:2:2 10bit HDR Support Yes (2020-PQ, 2020-HLG, P3D65-PQ) Colour Correction CDL/1024 1D LUT (supports 10-bit colour) 33x33x33 3D LUT (supports 10-bit colour Bonding Teradek Bonding Protocol, Teradek Reliable Transport (TRT) Recording SD Card - Full size, USB Drive, NFS Camera to Cloud Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion, Avid PROTOCOL SUPPORT Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Supported Video Transport Protocols Teradek Reliable Transport (TRT), Teradek Bonding Protocol, Secure Reliable Transport (SRT), Reliable Internet Stream Transport (RIST), RTMP/RTMPS, MPEG-TS DASH (UDP, TCP, TCP Server, Multicast), RTSP/RTP, HLS Server, Integrated CDNs (YouTube, Facebook, Vimeo), Airmix, WHIP Remote Management Teradek Core Cloud, Private SDK PHYSICAL ATTRIBUTES Dimensions 6.25”W x 3.6”D x 1.4”H [162 x 92 x 35mm] Weight 11.6oz [328.9g] Construction Milled aluminum Mounting Options Desktop, Four 1/4” 20 threaded mounting holes INTERFACES Configuration Interface Feature-rich Web UI for local device management, configuration, and control, OLED Status Display w/Nav Control Buttons USB InterfaceFunctionality 1x Powered 5-Pin Locking Connector with Node Modem support 1x Powered USB-A with Node and external storage support Ethernet 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45) Wireless WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration POWER Power Input 2-pin circular locking connector Voltage 6-28V DC Nominal Power Consumption 18W Desktop design WiFi, Ethernet, & Cellular Built-in Network Bonding HEVC / AVC Compression 12G-SDI & HDMI I/O UP TO 4K60 10-bit HDR Video Licenses for Return Video, Multi-Output and Debonding (Decoder only) 8 Ch. Audio | 5.1 & 7.1 Surround Sound On-board Recording: Store and Forward and Camera-to-Cloud Ready (Core, Frame.io, Sony C3 Portal, Sony Ci, PIX, AVID) Lightweight Chassis 11.6 Ounces Durable Construction: Milled Aluminum Chassis Multiple Protocols: SRT, MPEG-TS, RTMP(S), RTP, RIST, RTSP, TRT, HLS, DASH, WHIP Prism configuration app for iOS and Android Core Cloud compatible, Local Control SDK available
