Teradek Bolt 6 LT 750 Int Ant RX -VM

OVERVIEW

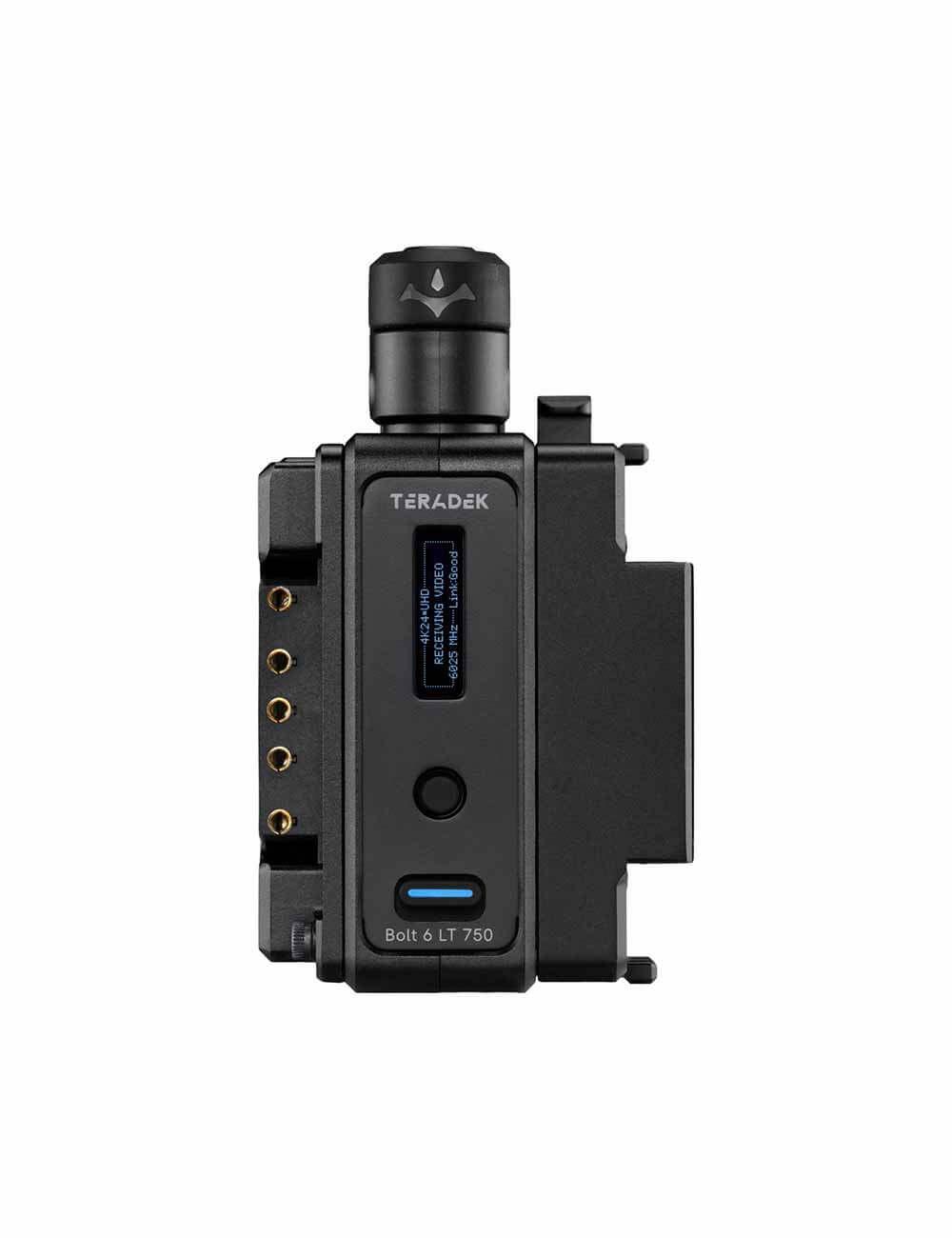

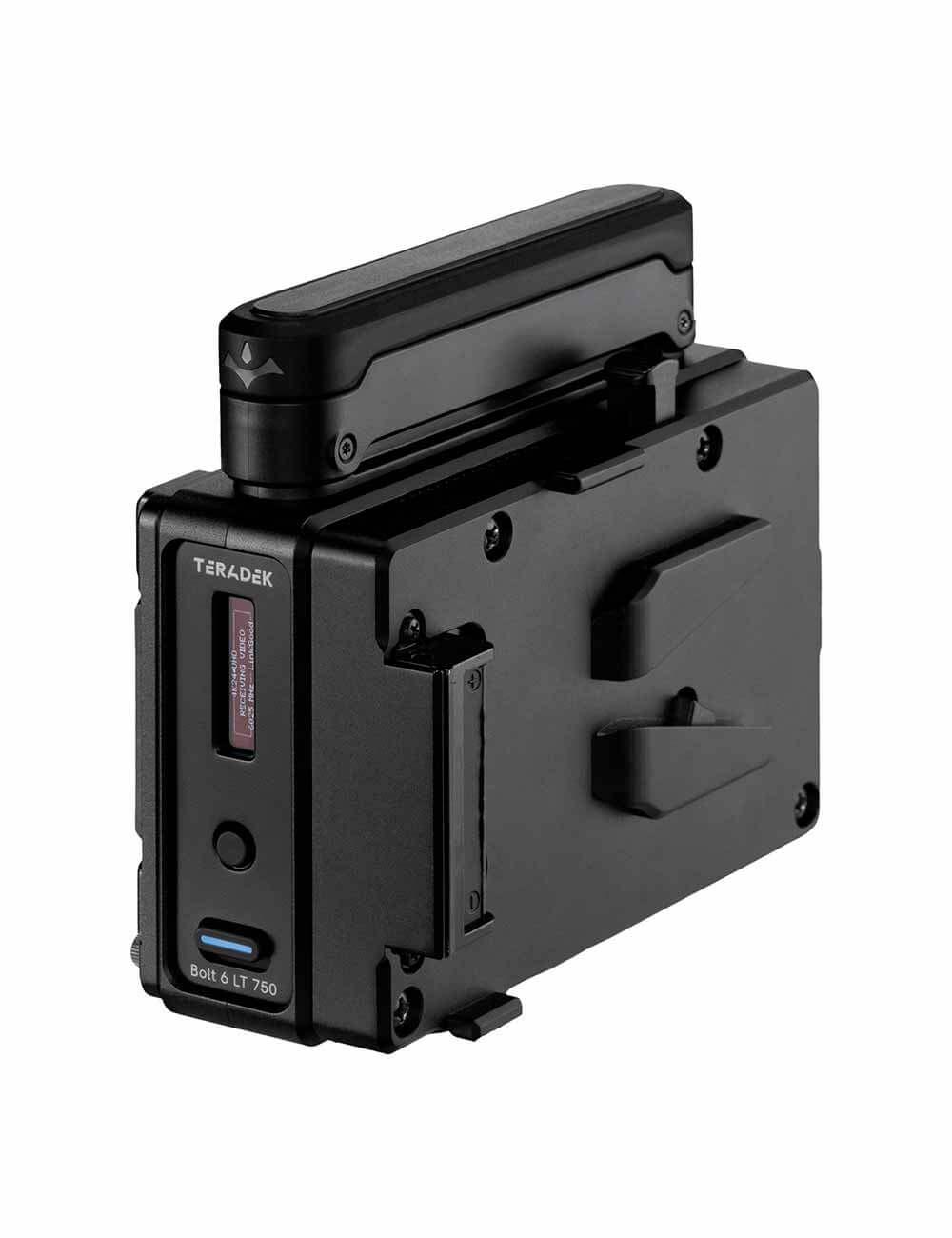

Bolt 6 LT RX is a wireless video receiver that is equipped with a built-in omnidirectional antenna, making it the most compact form factor available. This antenna cannot be removed or changed, ensuring zero hassle and no need for antenna replacements. It uses a smaller V antenna, making it recommended for use with other V+V configurations. However, it has a limited range of up to 750ft.

This receiver supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI, using Teradek’s patented Zero-Delay silicon chip and wireless video transmission over 5GHz and 6GHz radio frequencies. It offers three line-of-sight options – 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft with the optional Array Antenna and Broadcast Mode. The Bolt 6 LT RX is also cross-compatible with the entire Bolt 4K Series, allowing for expansion of workflow requirements. It can link up to 6 receivers to one transmitter or unlimited receivers in Broadcast Mode. The 750 model includes V antennas, while the 1500 and MAX models include both V and H antennas. The 750 model also has the option for internal antennas for a more compact and durable form factor.

This text is summarized by AI
INCLUDED IN BOX
1 x Bolt 6 LT 750 RX Internal Antenna
1 x 2pin to P-Tap Cable, 18in
1 x 2pin to AC Adapter 18W, 6ft
1 x Ultra Thin HDMI Male to Male Cable, 18in
1 x SDI Cable, 10in
1 x USB-C 2.0 Male to Male, 1m

About The Teradek Bolt 6 LT 750 Int Ant RX -VM
Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

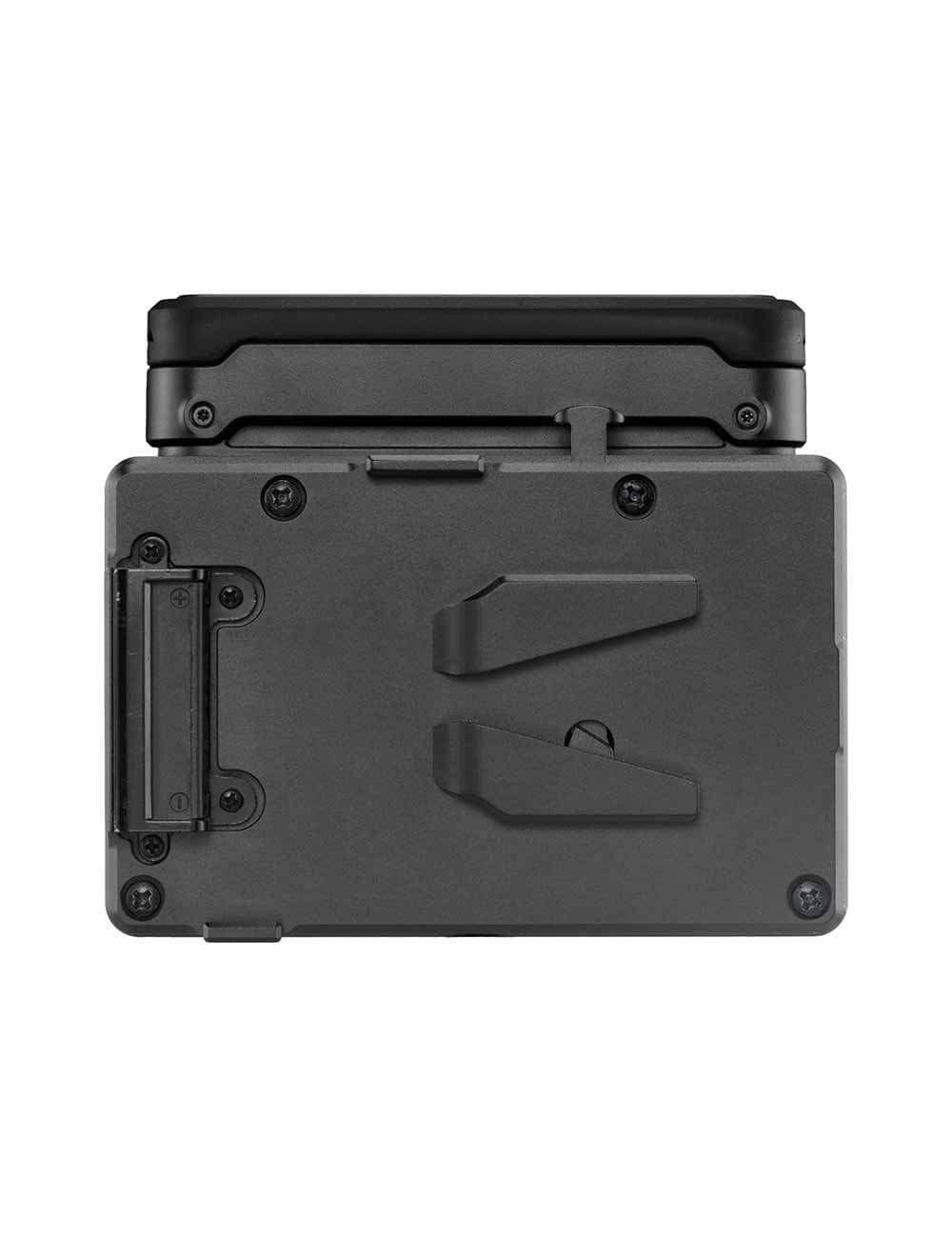

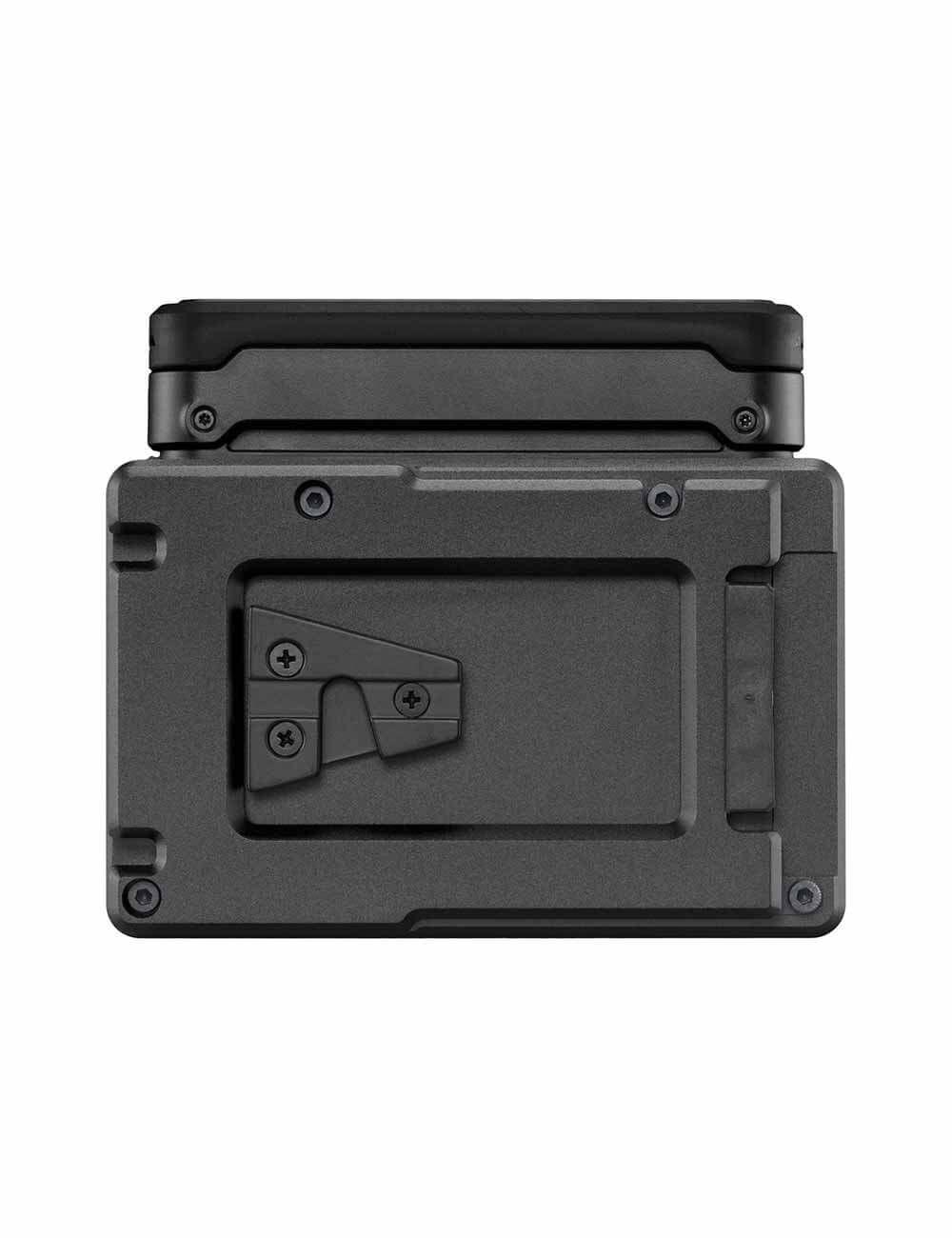

Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

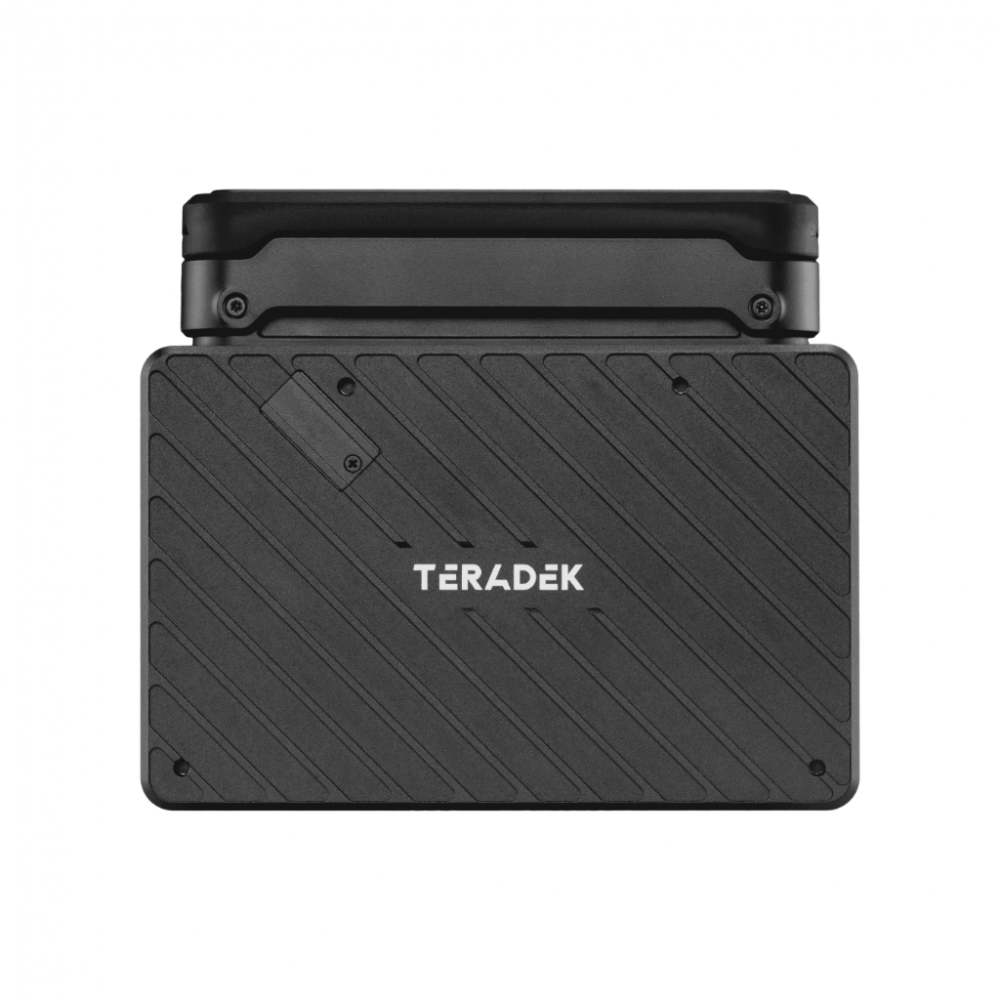

Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Bolt 6 LT 750 Int Ant RX:
Video:

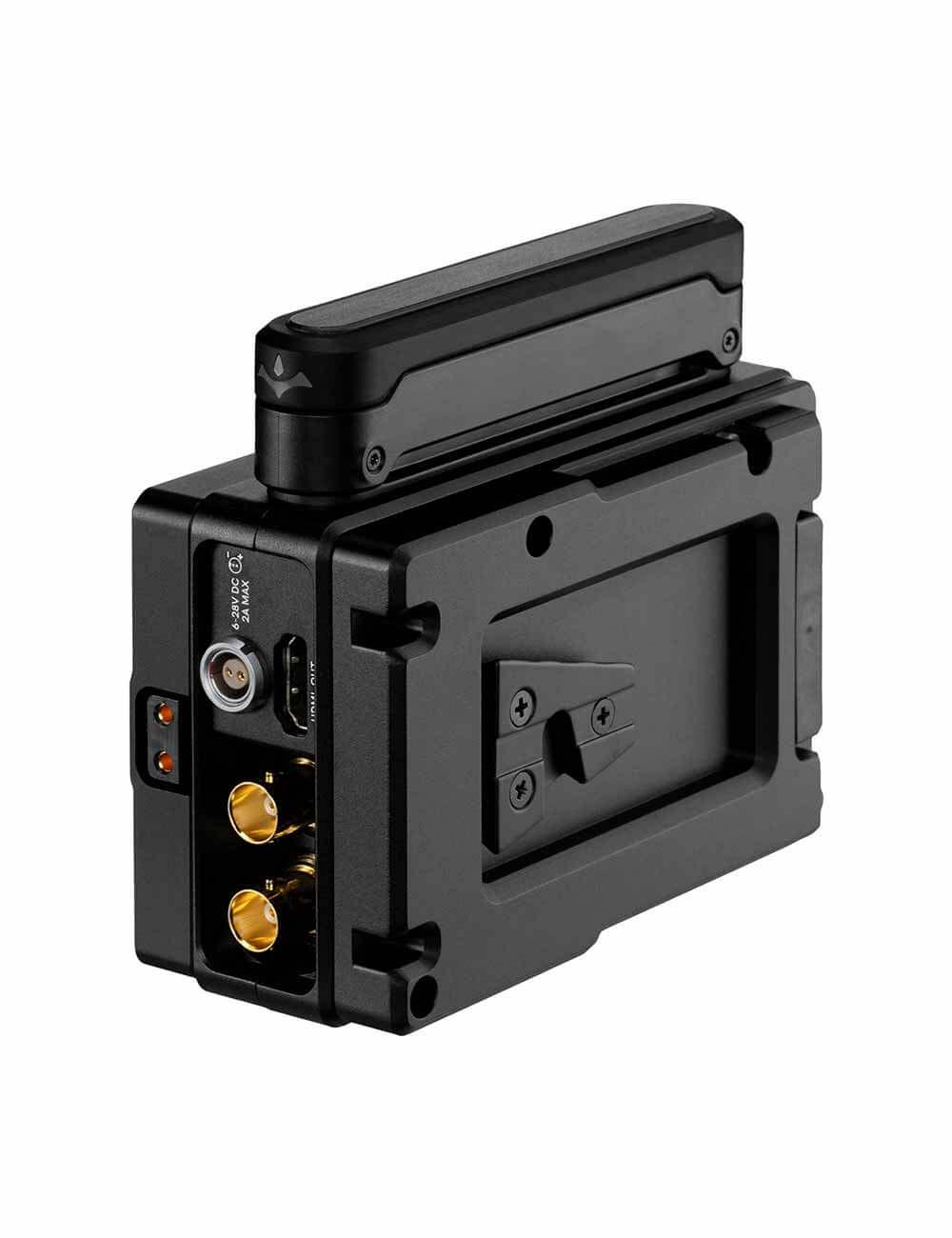

Video Outputs 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx <0.001sec Output Video Scaling No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs) Supported Resolutions: Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 Video Processing: Video Compression Visually Lossless Test Pattern Generator Support Yes Spectrum Analyzer Yes Color Correction None Outputs: Audio Output Embedded SDI/HDMI Audio Input (2 Channel) Physical: Dimensions 4.8" x 4.2" x 1" (122.4mm x 106.2mm x 27.1mm) Weight 10.7 oz (304 g) Construction Milled Aluminum(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 3/8”x16 and 1/4-20” holes Interfaces: Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Network: Antennas 4x Internal 2dBi Antennas Wireless DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Compatibility Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) Power: Power Input 2-Pin Circular locking Connector 6-28 VDC Battery V mount battery plate Nominal Power Consumption 11 Watts Environmental: Operating Temperature 0-40℃ Built-in antenna (cannot ever be removed or changed) Omnidirectional Most compact form factor Zero hassle, never need to replace broken antennas Uses smaller V antenna, therefore recommended to use with other V+V configurations Only works up to 750ft
