Swit WAVE500 Microphone

OVERVIEW
The WAVE500 is a high-quality wireless microphone kit that includes 2 transmitters and 1 receiver. It operates on a 2.4G frequency with a range of 500ft, ensuring zero latency and full synchronization. The compact size of the kit makes it easy to use and transport, and it can be mounted on cameras using the included pocket clip or coldshoe mount. With a 3.5mm mic input and audio output, as well as features like 180Hz low cut and gain control, the WAVE500 offers crystal clear sound and more flexibility for post-production. Both the transmitter and receiver have an LCD display for easy monitoring, and the built-in battery provides 8 hours of continuous use. It can also be quickly charged in just 1.5 hours via USB-C.

In addition to its impressive features, the WAVE500 is also a dual channel wireless microphone, allowing for simultaneous recording of two sound sources in livestreaming. The receiver can be mounted on cameras and output high-quality audio for recording, or connected to smartphones for livestreaming using a certified 3.5mm to lightning adapter. The transmitter has a built-in mic and can also connect to an external mic, with features like one-key mute and low cut to filter out background noise. The receiver has audio gain adjustment for each channel and can be switched between mono and stereo modes. With its long battery life and convenient charging options, the WAVE500 is a versatile and reliable choice for professional audio recording and livestreaming.

SUMMARY
Frequency Band: 2.4 GHz
Frequency Range: 50Hz – 20kHz
Pickup Pattern: Omnidirectional
INCLUDED IN BOX
1x RX Reciever Kit
2x TX Transmitter
1x Carrying Bag
2x Mic Windshield
1x Eject Pin
1x 3-in-1 USB-C Charging Cable
2x External Lac Mic (with Wind Muff)
1x 3.5 TRRS Phone Cable
1x 3.5mm TRS Camera Cable

About The Swit WAVE500 Microphone
Dual Channel Wireless Microphone

WAVE500 is a compact size 2.4G wireless microphone with dual channel Transmitters and 1 stereo Receiver, to simultaneously record two sound sources in livestreaming.

500ft Wireless Receiving

The Receiver could be mounted to cameras by code shoe, output 3.5mm stereo audio of crystal clear broadcast quality to the camera to record with video.
The wireless transmits up to 500ft range, zero latency and full synchronization.

Smart Phone Recording

You can also connect the Receiver 3.5mm audio output to smart phones to make livestreaming. Please use IMF certificated 3.5mm to lightning adaptor, and use 4-section 3.5mm jack to the adaptor, and 3-section 3.5mm jack to the Receiver.

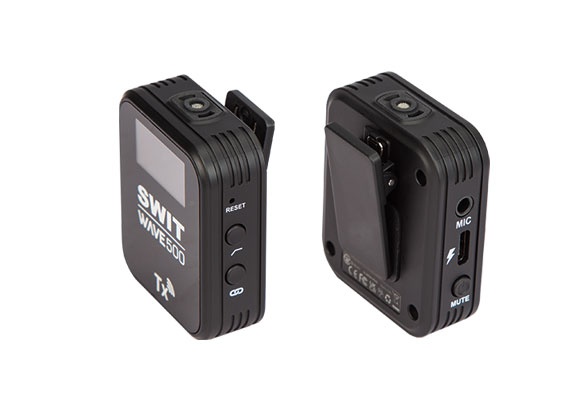

The Transmitter

The Transmitter has a built-in Mic on the top side, and could connect external Mic input. Support one-key mute and one-key low cut function, to filter out ＜180Hz background noise, like air conditioner or computer fans

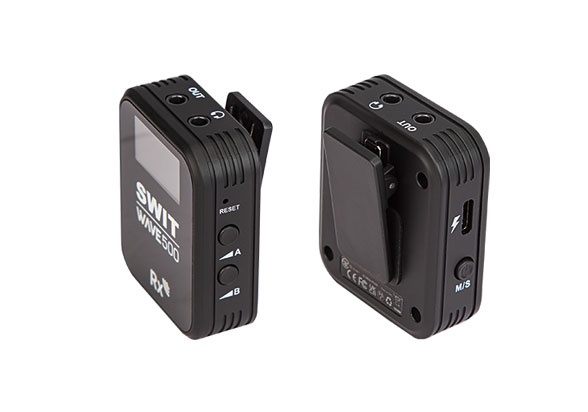

The Receiver

The Receiver has a 3.5mm audio output socket and a 3.5mm headphone monitoring socket on the top side; supports audio Gain adjustment for each channel, and Mono / Stereo switching.

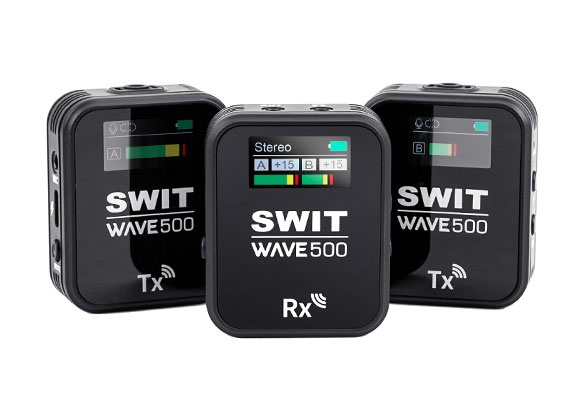

Display Screen on Both Tx and Rx

The Transmitter screen displays channel (A or B), audio meter, mute status, low cut status, and battery status.
The Receiver screen displays audio meters and gain value for both 2 transmitter channels, stereo or mono modes, and battery status.

8 hours Battery, 3-in-1 Charging

Both the WAVE500 Tx and Rx have internal battery, could ensure 8 hours continued working. The package provides a 3-in-1 USB-C charging cable to charge 2x Tx and 1x Rx simultaneously. It takes 1 hours to charge to 80%, and 1.5 hours to fully charged.

TX Transmitter:
Wireless Transmission Digital 2.4GHz
RF Frequency Band 2400-2483.5MHz
Frequency Response 20Hz-20KHz
Working Distance 500ft/150m (LOS)
Mounting Pocket clip and Cold shoe
Audio Input 1/8″ / 3.5mm TRS Mic input
Audio Input Level 1V (0dBV)
Power Consumption 3.3V-4.7V
Inner Battery 400mAh, 8 hours run time
Charging Port USB Type C
Charging Time 1.5 hours
Dimensions 52x42x17mm
Weight 39g
RX Receiver:
Wireless Transmission Digital 2.4GHz
RF Frequency Band 2400-2483.5MHz
RF Sensitivity -81dBm
Working Distance 500ft/150m (LOS)
Mounting Pocket clip and Cold shoe
Audio Channels 2 channels
Audio Output 1/8″ / 3.5mm TRS Mic output
1/8″ / 3.5mm TRS Headphone output
Gain 0-5 level
Audio Output Level Line out: 1V; Headphone out: 25-30mW
Power Consumption 3.3V-4.7V
Inner Battery 400mAh, 8 hours run time
Charging Port USB Type C
Charging Time 1.5 hours
Dimensions 52x42x17mm
Weight 39g
Microphone:
Form Factor Built-in / External Mic
Sound Field Mono
Polar Pattern Omnidirectional
Frequency Range 50Hz-20KHz
Sensitivity -40dB (±3dB, re 1V/Pa at 1KHz)
Maximum SPL 135dB SPL (at 1KHz)
2x Transmitter 1x Receiver Kit
2.4G wireless, 500ft receiving
Zero latency and full synchronization
Compact size, built-in Mic or Lav beltpack
Pocket clip and Coldshoe mounting
3.5mm Mic input and audio output
180Hz low cut and Gain control
SPL 110dB, more space for post production
LCD display for both Tx and Rx
8 hours run time built-in battery
1.5 hours quick charging via USB-C
