Swit TD-R210S Light Stand Power Adaptor

OVERVIEW
The TD-R210S is a compact and portable solution for powering high power cine lights. It can be easily mounted on a C-stand and can output regulated 24V or 48V DC power using 2x V-mount batteries. It is capable of supporting high power lights such as the ARRI Skypanel S60-C / S120-C at 100% output.

The TD-R210S uses Neutrik XLR connectors and can handle a maximum load of 240W with normal 14.4V batteries or 500W with SWIT 14.4V/28.8V Bi-voltage batteries. It is recommended to use the same model and capacity batteries for optimal performance. The TD-R210S is a perfect power solution for the Skypanel S60-C / S120-C, providing a compact and balanced solution with reliable and safe Neutrik XLR sockets.

INCLUDED IN BOX
1x 24V/48V Light Stand Power Adaptor (TD-R210S)

About The Swit TD-R210S Light Stand Power Adaptor
For High Power Cine Lights

The high power lights usually use 24V or even 48V high voltage input.The TD-R210S is a solution to drive these high power lights with only 2x V-mount batteries, outputs regulated 24V or 48V, high load, portable and easily to be mounted on C-stand.

Max 48V 500W Load

Installed with 2x V-mount batteries, the TD-R210S can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Skypanel S60-C / S120-C 100% light output.

Battery Type, Outlet Voltage, Max Load

SWIT 14.4V/28.8V Bi-Voltage Batteries:

3-pin XLR (Neutrik), 48V regulated, 500W
4-pin XLR (Neutrik), 24V regulated, 240W

Normal 14.4V V-mount Batteries

3-pin XLR (Neutrik), 48V regulated, 240W
4-pin XLR (Neutrik), 24V regulated, 240W

The Max Load should be no more than 2 batteries Max Load sum-up;
Recommend to use same model, same capacity batteries to power.

SkyPanel Power Solution

SkyPanel S60-C / S120-C consume 430W power, and can output 100% light only input 48V DC. Use 2x SWIT high load bi-voltage PB-H260S with the TD-R210S adaptor, will output 48V 500W for Skypanel S60-C / S120-C.

Compact & Balanced

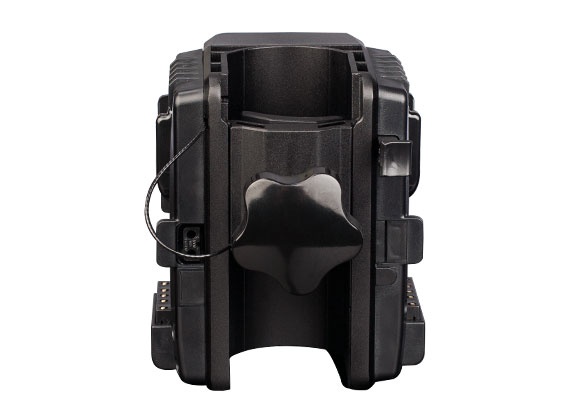

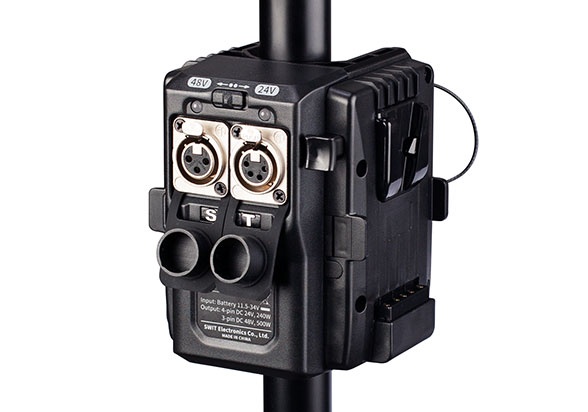

TD-R210S has extremely compact size without fans, and fits on 25mm-45mm diameter light stand – all most all stands. It’s balanced with 2 batteries and reliable locker.

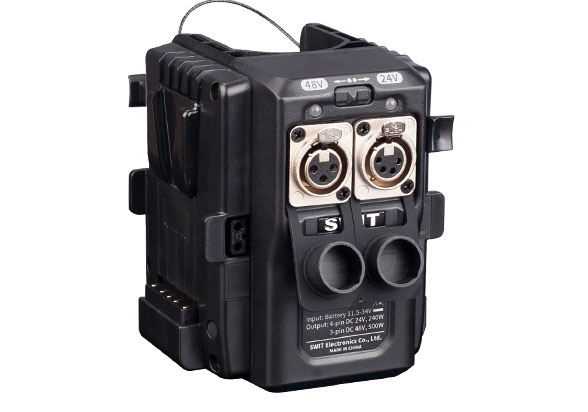

Neutrik XLR Socket

To ensure stable high current output, the TD-R210S adaptor uses Neutrik 3-pin & 4-pin XLR sockets, reliable and safe.

Model TD-R210S
DC output 3-pin XLRx1; 4-pin XLR x1
Battery type 2x V-mount batteries
Max Load (by 2x 28.8V batteries) 3-pin XLR: 48V/10.4A, 500W
4-pin XLR: 24V/10A, 240W
Max Load (by 2x 14.4V batteries) 3-pin XLR: 48V/5A, 240W
4-pin XLR: 24V/10A, 240W
Working temp -20°C – 40°C
Dimensions 127×104×93mm
Weight Net 0.9kg; With package 1.2kg

Install 2x V-mount batteries
4pin Regulated 24V out, Max 240W
3pin Regulated 48V out, Max 500W
500W by SWIT Bi-voltage batteries
For Skypanel S60/S120 100% output
Neutrik XLR connectors
25-45mm light stand install
