Swit S-8D62 Battery

OVERVIEW

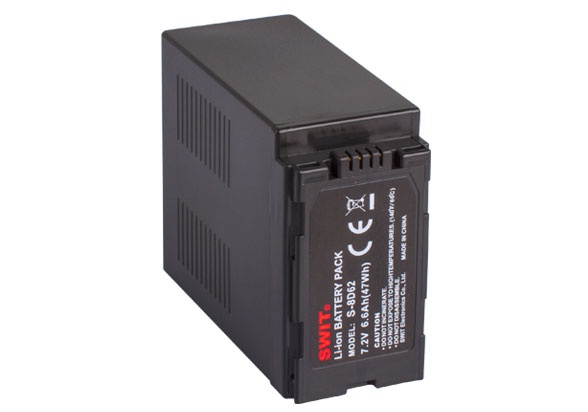

S-8D62 is a 7.2V, 47Wh Li-ion DV battery compatible with Panasonic CGA series D54S/D28S batteries. It has a 7.2V/5.5mm pole DC output socket and a 4-level LED power indicator, displaying the remaining power in percentage. This battery also has an intelligent circuit with multiple protections for abnormal current, voltage, and temperature.

The S-8D62 can be charged on SWIT Dual channel charger S-3602P, taking approximately 4 hours and 30 minutes to charge from empty to 100%. Alternatively, you can use SWIT S-3010D Portable Pole-tap Charger for S-8D62, which takes 7 hours to fully charge.

SUMMARY
Battery Capacity: 47Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: Panasonic CGA
Battery Technology: Li-ion
Voltage: 7.2v
INCLUDED IN BOX
1x Swit Electronics S-8D62 Battery

About The Swit S-8D62 Battery
S-8D62 is a 7.2V, 47Wh Li-ion DV battery compatible with Panasonic CGA series D54S/D28S batteries. It has a 7.2V/5.5mm pole DC output socket which allows to power camera and other devices simultaneously.

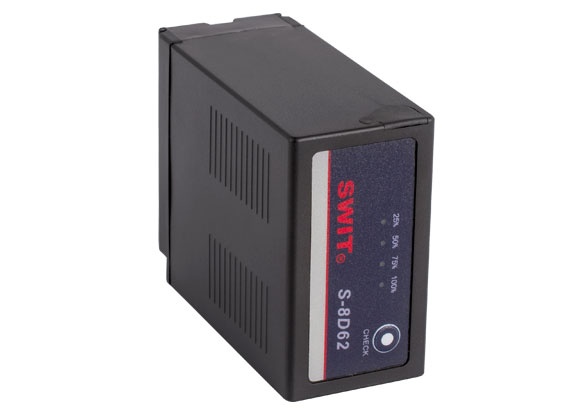

S-8D62 also has a 4-level LED indicator to give you a view of remaining power before mounting to camera. The build-in intelligent circuit has multiple protections of abnormal current, voltage and temperature.

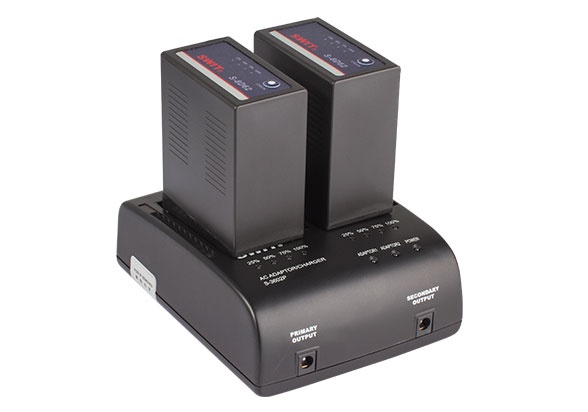

The S-8D62 can be charged on SWIT Dual channel charger S-3602P. It takes about 4 hours and 30 minutes to charge from empty to 100%. And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8D62. It will take 7 hours to fully charge.

Nominal Voltage 7.2V
Capacity 47Wh,6.6Ah
Max output power
Total 45W,6A
Pins 30W,4A
Pole-tap 25W,3.5A
Applicable camera Panasonic AG-HVX200/201
Panasonic AG-HPX250
Panasonic AG-DVX100
Net weight Approx 300g
Dimensions 66×37×82mm

7.2V, 47Wh capacity
Compatible with Panasonic CGA series batteries
4-level LED power indicator, display remaining power in percentage
Build-in 7.2V/5.5mm pole DC output socket
