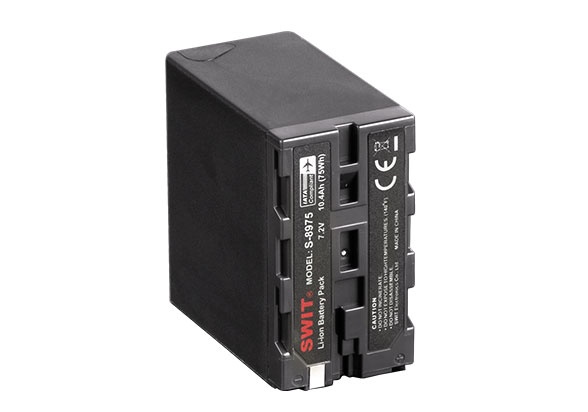

Swit S-8975 7.2V Battery NP-F 75Wh




The S-8975 is a 7.2V nominal voltage Li-ion battery that is comparable to the SONY L series. It is a high capacity battery with a capacity of 75Wh / 10.4Ah and has a 4-level LED power indicator to display the remaining power. It also has a 7.2V pole-tap DC output and multiple circuit protections. This battery can be used as a replacement for the SONY NP-F970 and is compatible with cameras such as SONY HVR-V1/Z1/Z7, DSR-PD190, and HD1000E. It can exchange digital information with the cameras and display the remaining power info on the camera viewfinder.

The S-8975 also has a built-in D-tap DC output socket, allowing for simultaneous power supply to on-camera LED lights, monitors, or wireless transmitters. It has a maximum power output of 30W and 4A. This battery can be charged on SWIT Dual channel charger S-3602F and SONY original charger, taking approximately 5 hours and 50 minutes to charge from empty to 100%. With its high capacity and convenient features, the S-8975 is a reliable and easy-to-use option for powering your camera equipment.

Battery Capacity: 75Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Sony NP-F
Battery Technology: Li-ion
Voltage: 7.2v
1 x Swit 7.2V 75Wh/10.4Ah F-Type DV Battery (S8975)

About The Swit S-8975 7.2V Battery NP-F 75Wh
SONY L series Replacement battery

Similar battery as SONY NP-F970
Display remaining power info

S-8975 is the replacement battery for SONY NP-F970, compatible with SONY HVR-V1/Z1/Z7, DSR-PD190, HD1000E, etc. S-8975 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder.

75Wh / 10.4Ah High Capacity

With 7.2V nominal voltage, the S-8975 has 75Wh / 10.4Ah capacity.

Build-in D-tap DC Output Socket

A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8975 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.The Max power from the pole-tap is 30W, 4A.

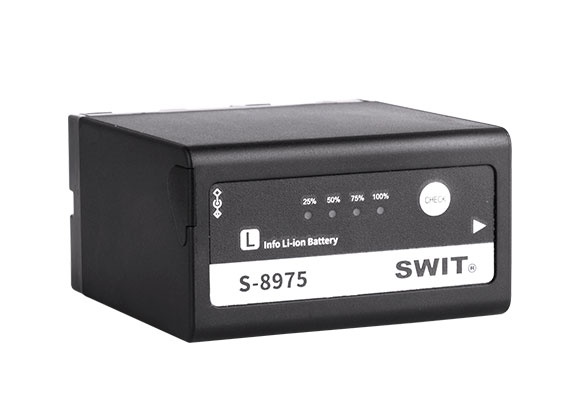

4-level LED Power Indicator

The S-8975 battery has the 4-level LED power indicators to checkthe battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

The S-8975 can be charged on SWIT Dual channel charger S-3602F and SONY original charger. It takes about 5 hours and 50 minutes to charge from empty to 100%.

Nominal Voltage 7.2V
Capacity 75Wh, 10.4Ah
Max output power Total 30W, 4A
Pins 30W, 4A
Pole-tap 30W, 4A
Applicable camera SONY HVR-Z1/Z5/Z7/V1;
SONY DSR-PD150/170/190;
SONY NEX-FS100/700/EA50;
SONY NXR-MC2000/HD1000;
Net weight Approx 334g
Dimensions 71×39×70mm

7.2V nominal voltage Li-ion battery
Comparable to SONY L series
Display remaining power info on camera viewfinder
75Wh / 10.4Ah capacity
4-level LED power indicator
7.2V Pole-tap DC output
Multiple circuit protections

Adopted high quality Lithium cells

Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted.The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

Strong and Durable Housing

The S-8972 housing is made of high-impact ABS material, and the advanced plastic welding technical ensures the strong and durable structure.

Multiple Safety Protection Design

The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.

Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

Cell balance adjustment

After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimise the imbalanced cells, to prolong the battery life.
