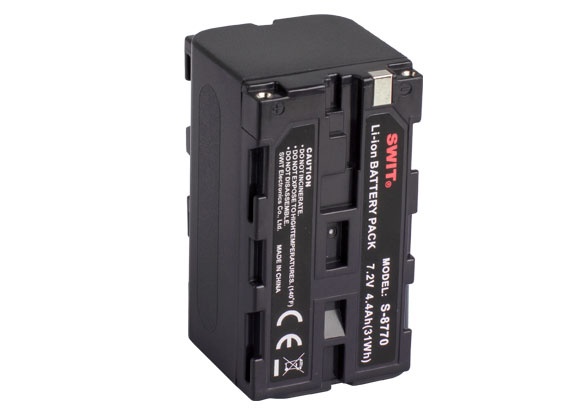

Swit S-8770 NP-F Battery

OVERVIEW
The S-8770 is a Li-ion battery pack with a nominal voltage of 7.2V. It is compatible with SONY L series DV batteries and can be used as a replacement for the SONY NP-F770. This battery pack has a capacity of 31Wh / 4.4Ah and features multiple circuit protections. When used with cameras such as SONY HVR-V1/Z1/Z7, DSR-PD190, and HD1000E, the S-8770 can display remaining power information on the camera’s viewfinder. It can run for approximately 3.5 hours on a SONY HVR-Z1 camcorder when the LCD monitor is on.

The S-8770 can be charged using the SWIT Dual channel charger S-3602F or the SONY original charger. It takes about 2 hours and 50 minutes to fully charge from empty. SWIT has been a leading brand of broadcast camera batteries for over 15 years, thanks to their use of high-quality Lithium cells. These cells have a long life, are durable, and have very little difference between them, ensuring high performance of the battery pack. The battery also features an MCU to measure and record real-time data, and has multiple safety features such as over-voltage, under-voltage, over-current, high-temperature, and low-temperature protection. The battery housing is made of high-impact ABS material with a waist design and non-slip tread for secure handling. Additionally, the specially designed circuit can optimize imbalanced cells to prolong the battery’s life.

SUMMARY
Battery Capacity: 31Wh
Battery Capacity: 0-50Wh
Battery Indicator: No
Battery Mount / Type: Sony NP-F
Battery Technology: Li-ion
Voltage: 7.2v
INCLUDED IN BOX
1x Swit S-8770 NP-F Battery

About The Swit S-8770 NP-F Battery
S-8770 is the replacement battery for SONY NP-F770, compatible with SONY HVR-V1/Z1/Z7, DSR-PD190, HD1000E, etc. S-8770 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder. With 7.2V nominal voltage, the S-8770 has 31Wh / 4.4Ah capacity, and can run approx 3.5 hours on SONY HVR-Z1 camcorder when LCDmonitor is on.

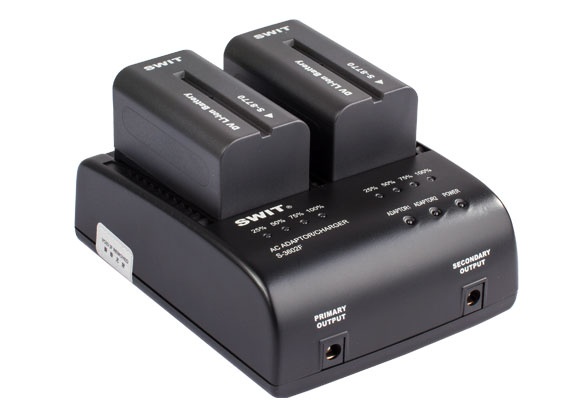

The S-8770 can be charged on SWIT Dual channel charger* S-3602F and SONY original charger. It takes about 2 hours and 50 minutes to charge from empty to 100%.

Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells.

The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.

Moreover, the cells that are used, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.

Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.

* Does not include S-3602F charger. Must be purchased separately

Nominal Voltage 7.2V
Capacity 31Wh,4.4Ah
Max output power 30W, 4A
Applicable camera SONY HVR-Z1/Z5/Z7/V1;
SONY DSR-PD150/170/190;
SONY NEX-FS100/700/EA50;
SONY NXR-MC2000/HD1000;
Net weight Approx 190g
Dimensions 71×39×40mm
Li-ion battery pack of 7.2V nominal voltage
Comparable to SONY L series DV batteries
Display remaining power info on camera viewfinder
31Wh / 4.4Ah capacity
Multiple circuit protections
