Swit S-8192A Gold Mount Battery

319.00

S-8192A

Compare
Category:

OVERVIEW

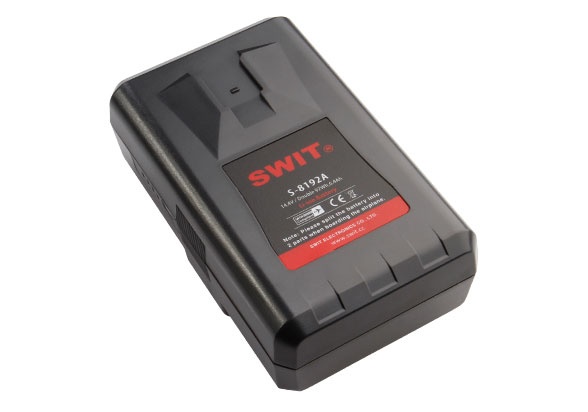

SWIT has developed a patented dividable battery design that allows their S-8192A battery to be divided into two parts, each with a capacity of 92Wh. This design complies with IATA air transportation regulations, which restrict the transportation of Li-ion battery packs over 100Wh. When assembled, the S-8192A has a total capacity of 184Wh, making it a high capacity option for powering ENG cameras. It also features a D-tap output socket, a 4-level LED power indicator, and a Gold mount type connection. Multiple circuit protections are in place to ensure safety and longevity of the battery.

In addition to its capacity and features, the S-8192A is also built with high quality Lithium cells that have a long life and minimal differences in performance. The battery housing is durable and designed to protect the cells and circuit board. Multiple safety protections are in place, including an MCU that monitors and cuts off power in case of over-voltage, under-voltage, over-current, or extreme temperatures. The battery also has cell balance adjustment capabilities to optimize performance and prolong its lifespan.

SUMMARY
Battery Capacity: 92Wh
Battery Capacity: 50-98Wh
Battery Indicator: No
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1 x S-8192A 92+92Wh Dividable Gold Mount Battery Pack

About The Swit S-8192A Gold Mount Battery
Large Capacity Battery, Complied with IATA

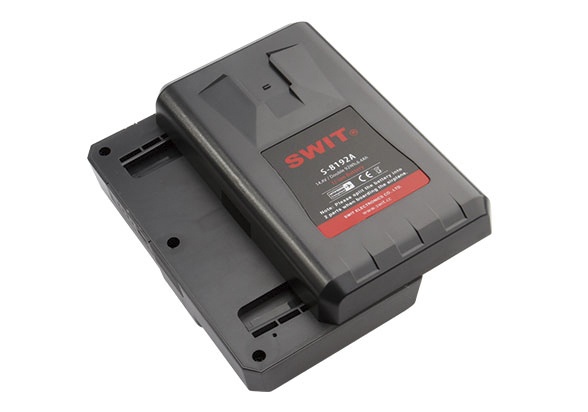

Patented dividable battery design
The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs:

Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8192A can be divided into 2 parts, and each part contains 92Wh capacity, not restricted by air transportation. And when using S-8192A, just assemble the 2 parts, you can get a Li-ion battery pack of 184Wh large capacity.

184Wh / 12.8Ah High Capacity
When assembled, the S-8192A consists of 20pcs 18650 battery cells, and reaches 184Wh / 12.8Ah high capacity.S-8192A can run approx 6 hours for normal 30W ENG cameras, and has no problem to fly with.

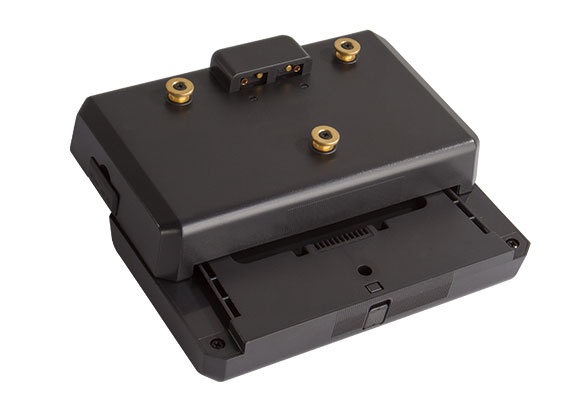

AntonBauer Gold Mount Connection
S-8192A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8192Abattery, for DC14.4V (Nominate) connection, such as on-cameralights, monitors, wireless transmitter, etc.The Max Power from D-tap is 100W, 8A.

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted. The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack. Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

Strong and Durable Housing
Adopt the thicker and wider nickel slice to solder the cells, minimize the voltage drop, dissipate heating, and enhance the assembly intensity. The cells are arranged as triangular structure in the battery pack, stable and anti-shock. The cell holder inside can protect the cells pack, and separate the circuit board from the cells, to keep the boards away from internal pressure and ensure a stable working.

Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected. Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimizethe imbalanced cells, to prolong the battery life.

Nominal Voltage 14.4V
Capacity 92+92Wh/6.4+6.4Ah
Max output power 100W
Max output current 8A
Mount Type Gold mount
Operation Temperature 0-40°C
Net weight Approx 1.2kg
Dimensions 168×101×65mm

Divide into 2 parts of 92Wh capacity each (Patent)
Not restricted by IATA air transportation regulations
Li-ion, 14.4V, 92+92Wh capacity
D-tap output socket
4-level LED power indicator
Gold mount type connection
Multiple circuit protections
