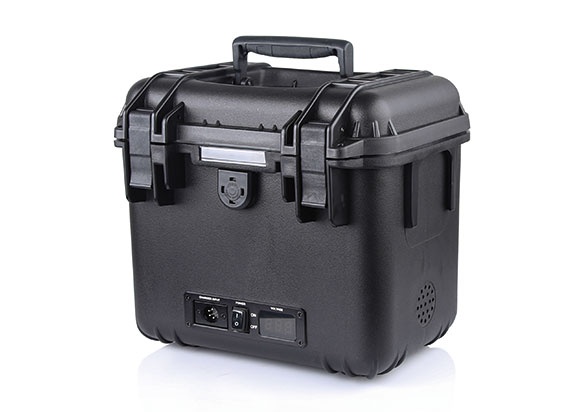

Swit S-4030 Dual 24V Power Box




The S-4030 power station box is a durable and strong solution for powering high draw devices. It can hold up to 4 V-mount batteries, providing longer power supply time compared to a single Li-ion battery. This makes it ideal for use with cine cameras, lighting for film and television, and mobile studios. The box is made of PP+ fibre glass, making it highly resistant to high temperatures and tough enough to withstand heavy use.

In addition to its durability, the S-4030 also offers convenience and flexibility. It can be powered by 1-4 V-lock batteries, which are widely available and easy to find. The box features 2-ch 3-pin XLR DC output sockets, allowing for simultaneous output of up to 15A of power. It also has a LED panel that displays real-time voltage and provides a low voltage warning. The box can be charged without having to remove the batteries, and it is equipped with multiple circuit protections for safety. With a cooling fan and a charging time of around 11.5 hours, the S-4030 is a reliable and efficient power solution for any high draw device.

1x Swit S-4030 Dual 24V Power Box
1x 5A Charger

About The Swit S-4030 Dual 24V Power Box
Long-lasting power solution for high draw devices

S-4030 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.

PP+ Fibre glass case, strong and durable

S-4030 adopts PP+ Fibre glass case which is high intensity, high toughness and high temperature resistant.

Power with 4 V-lock batteries, portable and usable

Considering the size, weight, power effeciency, and usability, S-4030 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.

The following SWIT V-mount batteries will fit in the box: S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.

Auto-balanced circuit design

With auto-balanced circuit, S-4030 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output.

2-ch 3-pin XLR DC output

With 2-ch 3-pin XLR output sockets, S-4030 is capable of outputing 2-ch 22-33.6V, max 15A power simultaneously.

And S-4030 is designed with multiple circuit protections, such as over load, over voltage, and etc.

LED panel display status

With a LED panel, S-4030 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batterie.

Charging without taking out batteries

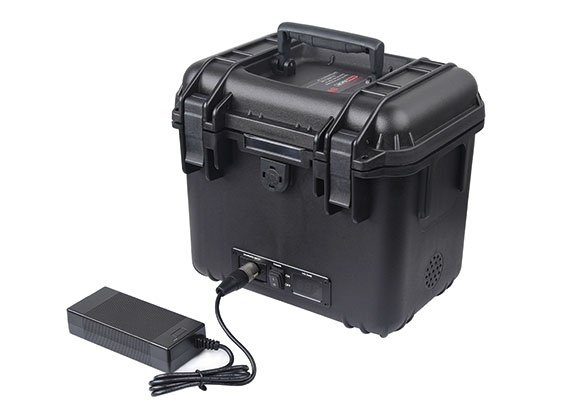

With the supplied 5A charger, user can charge the batteries in the S-4030 directly, without taking out of them.

Cooling fan design

The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.

Charging/discharging time

With 4PCS of fully discharged 160wh batteries, S-4030 will take around 11.5 hours to fully charge these batteries with the supplied power adaptor and the charging current is uniform distribution.

With 4PCS of fully charged 160wh batteries, S-4030 can power 85W power consumption Cine camera for around 7.5hours.

Input DC 16.8V 5A (Charging)
Output DC 22-33.6V 15A(360W)
Working temperature: 0°C~+40°C
Working humidity: 10%~90%
Storage temperature: -15℃~﹢60℃
Dimensions 290mm x 221mm x 278mm
Net weight 3.45Kg

PP+ Fibre glass case, strong and durable

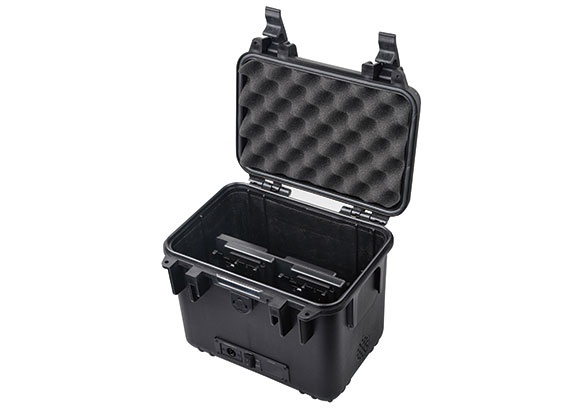

Install 4 x V-mount batteries
Dual 24V 3-pin XLR DC output
LED panel to display real-time voltage and low voltage warning
Charging without take out batteries by provided 4-pin XLR DC charging socket
Intelligent protective circuit design, safe and reliable
