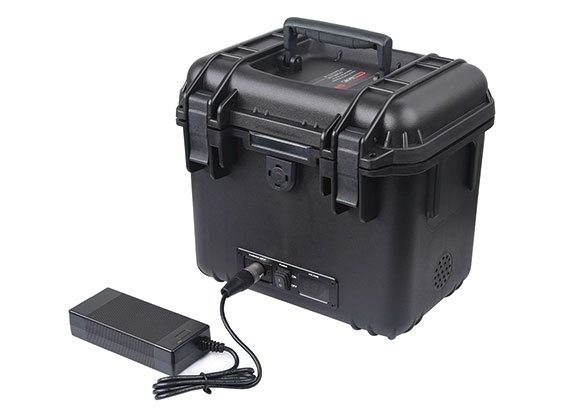

Swit S-4010 Dual 12V Power Box




The S-4010 power station box is a reliable and durable solution for powering high draw devices. Made with a strong and heat-resistant PP+ Fibre glass case, it can hold up to 4 V-mount batteries, providing a longer power supply time compared to a single Li-ion battery. This makes it perfect for cine cameras, film and television lighting, and mobile studios. The intelligent protective circuit design ensures safety and reliability for users.

The S-4010 also features a LED panel that displays real-time voltage and warns when the battery is running low. It can be charged using the provided 4-pin XLR DC charging socket, eliminating the need to remove the batteries. With a cooling fan and multiple circuit protections, it can withstand high temperatures and provide a stable power output. It can also be powered by 1-4 V-lock batteries, making it portable and easy to use. However, when using less than 4 batteries, the max output power will be limited by the battery’s maximum output draw.

1x Swit S-4010 Dual 12V Power Box
1x 5A Charger

About The Swit S-4010 Dual 12V Power Box
Long-lasting power solution for high draw devices

S-4010 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.

PP+ Fibre glass case, strong and durable

S-4010 adopts PP+ Fibre glass case which is high intensity, high toughness and high temperature resistant.

Power with 4 V-lock batteries, portable and usable

Considering the size, weight, power efficiency, and usability, S-4010 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.

The following SWIT V-mount batteries will fit in the box: S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.

Auto-balanced circuit design

With auto-balanced circuit, S-4010 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output.

2-ch 4-pin XLR DC output

With 2-ch 4-pin XLR output sockets, S-4010 is capable of outputing 2-ch 11-16.8V, max 15A power simultaneously.

And S-4010 is designed with multiple circuit protections, such as over load, over voltage, and etc.

LED panel display status

With a LED panel, S-4010 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batterie.

Charging without taking out batteries

With the supplied 5A charger, user can charge the batteries in the S-4010 directly, without taking out of them.

Cooling fan design

The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.

Charging/discharging time

With 4PCS of fully discharged 160wh batteries, S-4010 will take around 11.5 hours to fully charge these batteries with the supplied power adaptor and the charging current is uniform distribution.

With 4PCS of fully charged 160wh batteries, S-4010 can power 85W power consumption Cine camera for around 7.5hours.

Attention for less than 4 batteries powering

S-4010 can be used with 1-4 batteries. When only 1 battery is installed, the max output power of S-4010 will be limited by battery max output power. Please be aware of the power requirements and the battery max output draw, to avoid damage of the battery.

Input DC 16.8V 5A (Charging)
Output DC 11-16.8V 15Ax2(180Wx2)
Working temperature: 0°C~+40°C
Working humidity: 10%~90%
Storage temperature: -15℃~﹢60℃
Dimensions 290mm x 221mm x 278mm
Net weight 3.45Kg

PP+ Fibre glass case, strong and durable

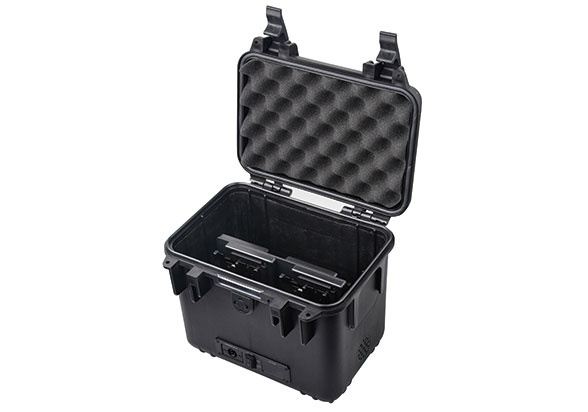

Install 4 x V-mount batteries
2-ch 4-pin XLR DC output
LED panel to display real-time voltage and low voltage warning
Charging without take out batteries by provided 4-pin XLR DC charging socket
Intelligent protective circuit design, safe and reliable
