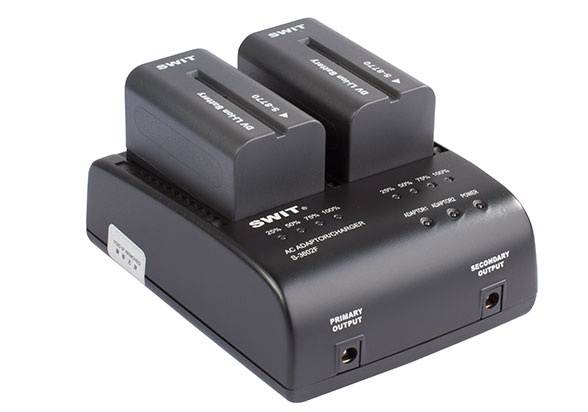

Swit S-3602F Dual Charger

OVERVIEW
S-3602F is a charger specifically designed for Sony L series DV batteries. It has dual charging channels, each with a charging output of DC 8.4V, 1.8A, allowing for simultaneous charging of 2 batteries. The charger also features 4-level LED indicators that display the real-time charging capacity of each channel.

In addition to charging, S-3602F also has 2x 5.5mm/2.1mm pole sockets for DC adapting output, providing a total output of DC 8.4V, 3.5A. An optional accessory, the S-7500F dummy SONY L series battery adaptor, can be used to adapt SONY DV cameras or other equipment with SONY L series battery mounts. However, it should be noted that the AC adapter is not compatible with the Sony HVR-HD1000E model.

SUMMARY
Battery / Mount Compatibility: Sony NP-F
Charging Ports: 2
INCLUDED IN BOX
1 x Swit S-3602F Dual Charger

About The Swit S-3602F Dual Charger
S-3602F is a dual channel sequential charger of S-8972, S-8970, S-8770 and compatible with Sony L series DV batteries.

Dual Channel Simultaneous Charging

S-3602F has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

AC-DC Adapting Output

S-3602F has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500F dummy SONY L series battery adaptor for adapting SONY DV cameras that use L series batteries, or the equipments with SONY L series battery mounts.

*Note – The AC adapter is not compatible with the Sony HVR-HD1000E.

Input AC 100V-240V 50/60Hz
Charging Output DC 8.4V, 2Ax2
Adapting Output DC 8.4V, 4A
Applicable Battery Swit S-8972, S-8970, S-8770 & Sony L Series NP-F770/970/960/950
Applicable Camera Sony HVR-V1E, HVR-Z1E/Z7E
Dimension 136x110x47mm
Weight 036kg
