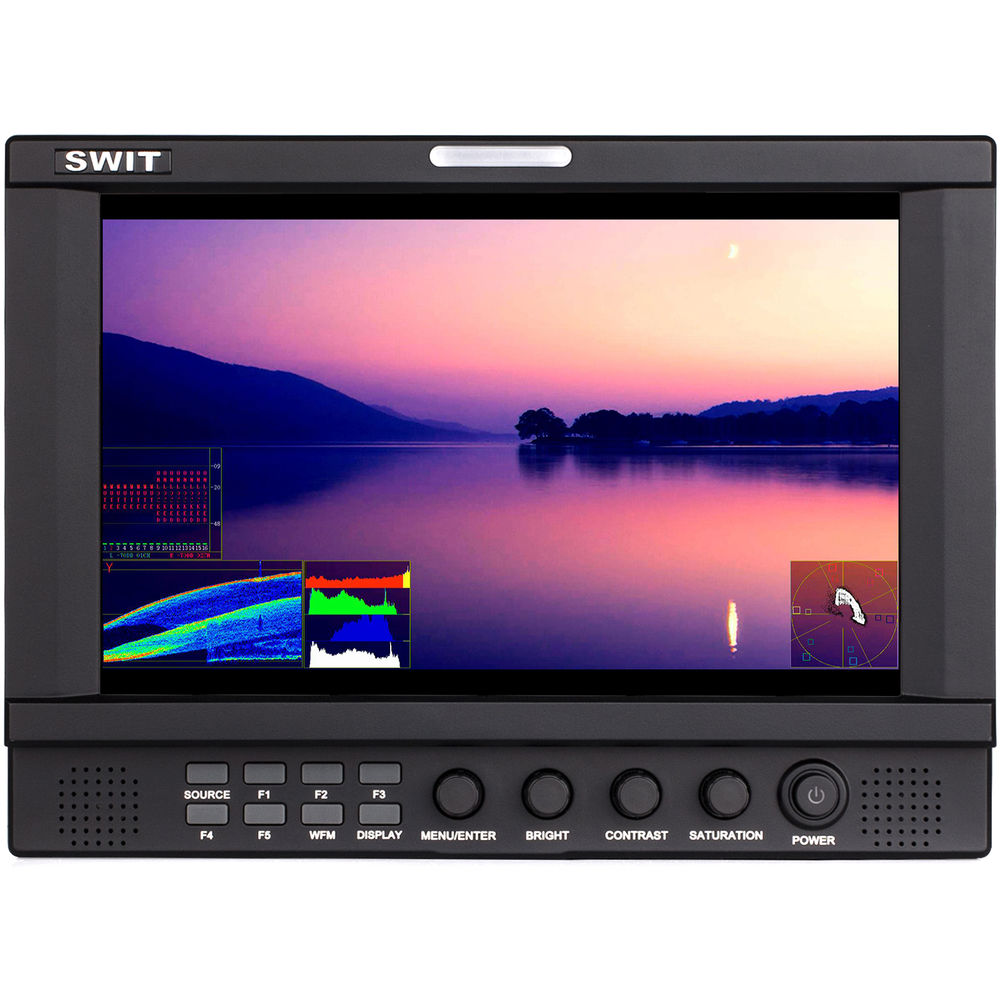

Swit S-1093F 9-Inch Monitor

1,242.00

Compare
OVERVIEW
Swit Electronics S-1093F (S1093F) 9-inch Full HD Waveform LCD Monitor swit_s-1093f_9-inch_hd_monitor / S-1093F. 9-inch Full HD LCD
IPS panel with LED backlight
The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
LCD Protective Glass
The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.
Input/Output Interfaces
SDI / HDMI / CVBS / Analog Audio
S-1093F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (…
SUMMARY
Screen Size: 9 Inch
Video Resolution: HD 1080
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Panel Type: LCD
Inputs:

3.5mm Jack
3G-SDI
HD-SDI
HDMI
SD-SDI
Outputs:

3.5mm Jack
3G-SDI
HD-SDI
HDMI
SD-SDI
Monitor Location: Field
INCLUDED IN BOX
  • 1x  Monitor
  • 1 x Cold shoe / Screw Articulating Arm trestle
  • 1 x Sun hood
  • 1 x 4-pin XLR power adaptor (A-PA03)

    About The Swit S-1093F 9-Inch Monitor

    9-inch Full HD LCD
    IPS panel with LED backlight

    The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

    LCD Protective Glass
    The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

    Input/Output Interfaces
    SDI / HDMI / CVBS / Analog Audio

    S-1093F monitor supports:

    2K/3G/HD/SD-SDI input × 2

    2K/3G/HD/SD-SDI loop output × 2

    HDMI input × 1

    HDMI loop output × 1

    CVBS input × 1

    CVBS loop output × 1

    3.5mm analog audio input × 1

    3.5mm analog audio output × 1

    Video Analysis Assistant Pattern
    Waveform / Vector scope / Histogram

    S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

    Embedded audio monitoring
    Up to 16-ch meters with alert and select output

    S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

    UMD and Text-Tally Display
    TSL 3.1 / 4.0 Protocol

    S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

    • 9” IPS LCD, 1920×1200, H/V 170°viewing
    • Built-in LCD protective glass
    • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
    • 16-ch Embedded audio meters with alert
    • Select any 2 audio channels to output
    • Waveform Y/Cb/Cr/R/G/B and single line
    • Vector scope, histogram R/G/B/Y
    • AFD, H/V delay, R/G/B/Mono, False color
    • TSL UMD and text TALLY display
    • Zebra stripes, Peaking focus assist
    • SDI timecode display
    • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
    • Front / Rear TALLY light and GPI control
    • V-mount, Gold mount or snap-on DV mount
    • USB firmware upgrade
