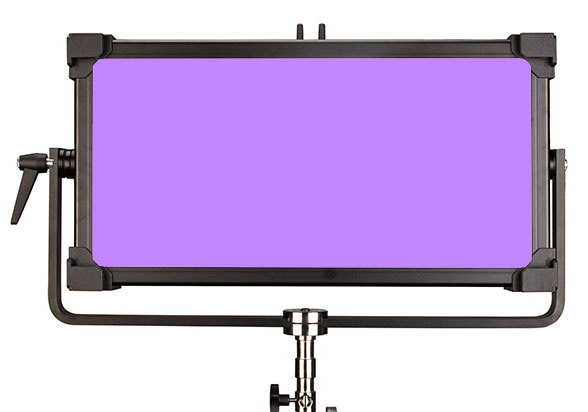

Swit RGBW LED Panel Light 400W




The S-2840 is a powerful RGBW 2:1 panel LED light with 560pcs SMD LEDs, producing a 400W light output and 10000Lux @ 1 meter. It has a colour temperature range of 2800-10000K and offers CCT mode with G/M adjustment, as well as HIS, CIE, and RGB colour modes. The light also comes with 20x Rosco and 20x Lee Gels, has a CRI of 95 and TLCI of 93, and can be controlled via 8-ch DMX or IOS/Android APP.

The S-2840 also features a control panel on the rear side and can be operated through the Smart Phone App, available for both IOS and Android. The light offers a CCT mode with G/M adjustment, RGB mode with HSI, CIE, and RGB colour picking options, and a GEL mode with built-in Rosco and Lee Gels. It can be powered through AC or V-mount DC, with recommended SWIT high load batteries for optimal performance.

Type: Single Light
1x Swit Professional 400W RGBW LED Light (S-2840)

About The Swit RGBW LED Panel Light 400W
400W RGBW 1:1 Panel

560pcs SMD LEDs

S-2840 is an RGBW 2:1 panel LED light, adopts 560pcs SMD LEDs, 400W power output, 10000Lux @ 1 meter.

Smart Phone APP control

IOS and Android

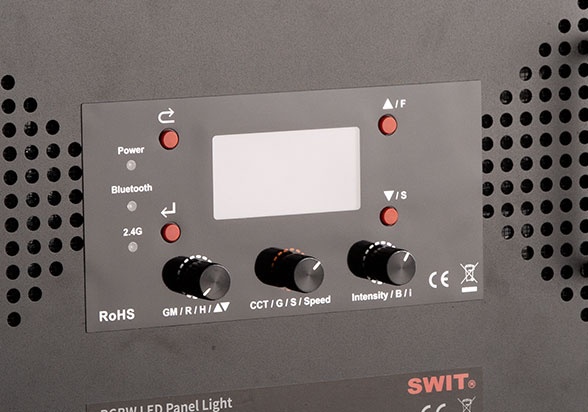

S-2840 has a control panel on the rear side, and can also be operated by Smart Phone App.

IOS App: App Store, search “RGB Panel”

Android App: Download the APK from Swit’s website.

CCT Mode

2800K-10000K, G/M adjustment

The colour temperature mode achieves 2800K-10000K continuous adjustment and Green / Magenta ±1.00 adjustment.

RGB Mode

HSI, CIE and RGB pick

Support HSI mode, CIE mode, RGB mode to pick colours, by rear control panel value setting or smart phone App.

GEL Mode

Built-in Rosco and Lee Gels

S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone App.

Power Input

AC, V-mount DC

S-2840 supports SpeakOn AC power input and 4-pin XLR DC 14.8-26V input. Provides with standard V-mount plate and recommended to use SWIT high load battery S-8183S, PB-R290S, PB-H290S or PB-H260S to power.

(The output power will be limited to 200W if using DC-IN or V-mount battery)

Model S-2840
Colour Temperature 2800K-10000K
G/M adjustment ±1.00
Luminance 10000Lux @ 1meter
Beam Angle 70°
Colour rendering CRI 95; TLCI 93
Input voltage AC 100-240V, 50/60Hz; DC 14.8-26V
Power output AC-IN 400W; DC-IN 200W
Dimension 629mm × 331mm × 195mm
Weight 14.4kg

560pcs RGBW SMD LEDs
400W light output
10000Lux @ 1 meter
2800-10000K colour temperature
CCT mode with G/M adjustment
HIS / CIE / RGB colour mode
20x Rosco and 20x Lee Gels
CRI 95, TLCI 93
8-ch DMX control
IOS/Android APP control
