OVERVIEW
The PL-S150D is a powerful LED panel light with 1152 ultra bright, long-life SMD LEDs and a 64° wide beam angle. It has a 150W power output and can produce 5500Lux of light at 1 meter. The light also features smooth index dimming, adjustable color temperature, and high color rendering and consistency ratings. It can be controlled via DMX512 and has a LCD display for easy monitoring. The light can be powered by V-mount batteries or an AC adaptor and comes with 4-leaf metal barn doors and a yoke bracket. An optional 40° honeycomb is also available for purchase.
The PL-S150D is designed for both broadcast studio and field setups, with its high intensity and non-linear dimming curve providing smooth light output. It operates silently with no fan or louver and has a wide color temperature range of 2700K-6500K. The light has a 5-pin DMX in and out, as well as a 5V USB-A port for wireless DMX receivers. It can be powered by DC input or V-mount batteries, and an optional honeycomb can be added for more focused lighting. The light also has a control display for easy monitoring and setting adjustments.
INCLUDED IN BOX
1x Swit PL-S150D LED Light
2x Safety rope
1x AC-DC Adaptor
1x Barn door kit
About The Swit PL-S150D
150W Ultra Bright Panel Light
PL-S150D is a 2:1 size 150W Bi-color SMD LED panel light with high intensity, smooth dimmer curve, high CRI/TLCI/SSI, for both broadcast studio and field setup.
5500Lux@1m Super Bright
PL-S150D provides 150W light output and as high as 5500Lux at 1 meter illuminance, twice brighter than regular 100W LED panels with the same size, works perfectly in broadcast studio setup especially the large 4K studios that request brighter panel lights comparing to HD studios, to reproduce more HDR details.
Non-linear Dimming Curve
To produce smooth light output when dimming at low intensity range, PL-S150D provides a non-linear index dimming curver, and the 1% dimmer equals to only 0.3% of the full intensity, to match with the sensitivity of human eyes.
No Fan, No Noise
The active cooling system of PL-S150D ensures 150W high bright output with no fan or louver, to provide a silent video production environment.
2700K-6500K Continuously Adjustment
PL-S150D consists of 150W of 2700K LED and 150W of 6500K LED, and outputs 150W power at any color temperature from 2700K to 6500K.
CRI 97; TLCI 99
PL-S150D adopts high end surface mounted LEDs with super high Colour Rendering Index (CRI) Ra 97, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colours exactly under the light.
SSI 73 (D55)
SSI (Academy Spectral Similarity Index) is an evaluation of light colour rendering in 4K broadcast studios, by comparing the spectral power distributions of a test light fixture with a reference light source. PL-S150D CIE D55 (comparing with sunlight) SSI scores 73, a high score to the LED light.

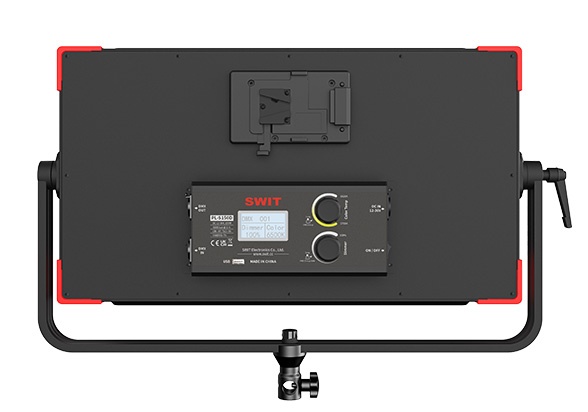

Control Info Display
The rear LCD screen can display dimmer percentage, color temperature, DMX address and Group channel.
Long press dimmer knob to set DMX address, and long press color temp knob to switch between DMX consoler mode and Group interactive control mode.
5-pin DMX IN & OUT
PL-S150D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.
The DMX address n= dimmer, n+1=colour temp
DC and Battery Power
PL-S150D supports 3-pin XLR DC 12-36V wide range input, and an on-board V-mount plate to power by batteries. The standard package provides an AC-DC adaptor and can be fixed to the V-mount plate.
Optional Honeycomb
The standard barndoors can be easily disassmbled from the light and exchanged to a 40° honeycomb LA-GS150, optional purchase.
LED 1152pcs SMD LEDs
Illuminance 5500Lux @ 1m
Beam angle 64° half peak
Colour Temperature 2700K ～ 6500K
CRI 97
TLCI 99
SSI (D55) 73
Power 150W
Working voltage DC12V～36V
Dimension 543×301×58mm
Lighting area 484×242mm
Weight 5.8kg with metal barndoor
1152pcs ultra bright long-life LEDs
SMD Surface mounted LED technology
64° half peak wide beam angle
150W power, 5500Lux @ 1meter
Smooth index dimming curve
2700K-6500K continuously adjustable
Colour rendering CRI 97, TLCI 99, SSI(D55)73
DMX512 controlled colour and dimmer
LCD display color and dimmer value
Power by V/Gold mount battery or AC adaptor

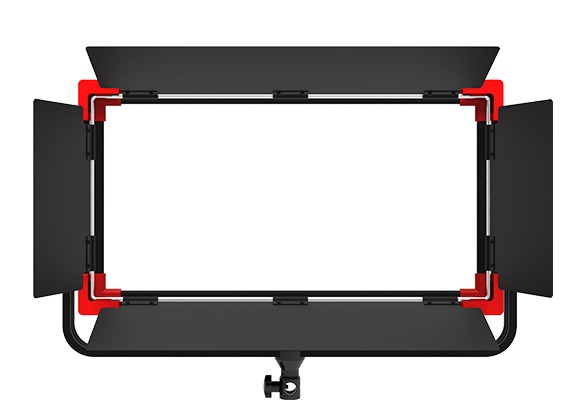

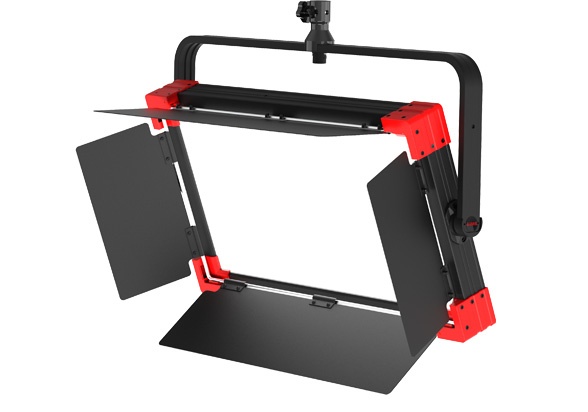

4-leaf metal barn doors and Yoke bracket
Optional 40° honeycomb
