Swit PL-E90 Bi-Colour LED Light

OVERVIEW

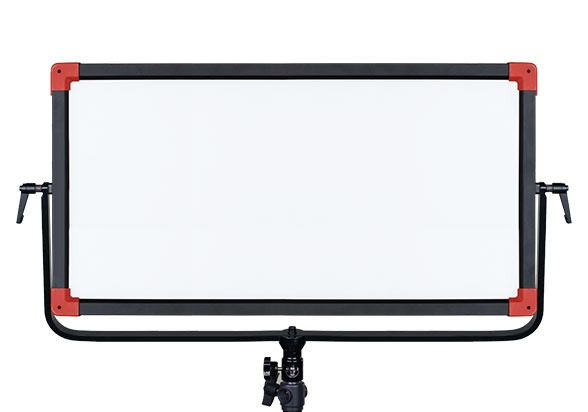

The PL-E90 is a powerful and versatile LED light, featuring 480pcs edge mounted SMD-LEDs and SWIT’s unique 90° light guide technology. With a 90W power output and 2200Lux luminance at 1 meter, this light is perfect for portable field lighting applications. Its slim and portable design makes it a great choice for interviews and video productions on the go.

Unlike traditional edge mounted LED lights, the PL-E90 utilizes innovative technology to minimize light loss and deliver a bright, soft, and evenly spread light. It boasts a high CRI of 98 and TLCI of 99, ensuring accurate color rendering. The LCD display provides information on dimmer percentage, color temperature, and battery life, and the light also supports quick adjustments of brightness and color temperature. With a wide input voltage range and the option to use V-mount or Gold mount batteries, the PL-E90 is a reliable and versatile lighting solution.

SUMMARY
Type: Single Light
INCLUDED IN BOX
1x PL-E90 light
1x AC-DC power adaptor
1x Carrying bag

About The Swit PL-E90 Bi-Colour LED Light
PL-E90 is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame and with SWIT unique 90° light guide technology the PL-E90 can output bright, soft and equally spread light. The main body is slim and portable, which makes it an ideal light source for interview kit and field video productions.

The traditional edge mounted LED lights are not always bright enough, because half of the light will go to the backside – even with a reflection board present a significant loss of light occurs. SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots and output 90° to the front with minimum light lost, which ensures high brightness of the slim edge mounted light.

PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor with a max value of 100. The normal LED light has approximately 80-85 CRI or TLCI, while PL-E90 offers super high CRI at 98 and TLCI at 99, and will not lose the object’s original colours.

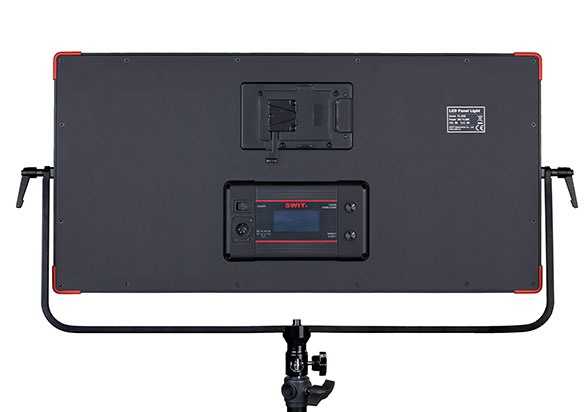

The rear LCD screen can display the current dimmer percentage, colour temperature value, and remaining battery indications. The PL-E90 also supports quick adjustments of brightness and colour temperature.
PL-E90 supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount battery plate (V-mount is default).

LED 480pcs SMD LEDs
Illuminance 2200Lux @ 1m
Beam angle 70°(50% bounded)
Colour Temperature 2700K～6500K
CRI 98
TLCI 99
Power Approx. 90W
Working voltage DC11V～36V
Dimension 650×403×48mm
Lighting area 526×257mm
Weight 4.75kg
480pcs edge mounted SMD-LEDs
Unique 90° light guide technology
90W power, 2200Lux @ 1meter
0-100% flick-free dimming
70° effective wide beam angle
2700K-6500K continuously adjustable
Super high CRI Ra 98, TLCI 99
LCD display color, dimmer and battery info
DC 11-36V wide input voltage
Power by V-mount / Gold mount battery
Strong all-metal housing with U-stand
