Swit PL-E60P Panel And 2x PB-R290S

2,358.96

PL-E90P+PB-R290S+-2 IP54 LIGHT KIT

Compare
Category:

OVERVIEW
The PL-E90P is a 90W IP54 waterproof SMD panel LED light that features 480pcs edge mounted SMD-LEDs and unique 90° light guide technology. It has a 90W power and can produce 2200Lux at 1 meter. The light also has flick-free dimming, a wide beam angle of 70°, and can adjust the colour temperature from 2700K to 6500K. With a high CRI of 98 and TLCI of 99, it provides accurate colour rendering. The light also has a LCD display for colour, dimmer, and battery information, and can be powered by a V-mount or Gold mount battery. It is also certified as IP54 waterproof and can be controlled via DMX512 or interaction control.

The PB-290S+ is a heavy duty 290Wh IP54 battery that is water and dust proof and can withstand a drop of 1.5 meters. It has a 14.4V capacity, 250W high load, and supports fast charging. The battery also has a digital power indicator, D-tap power output socket, and can be connected via V-mount. It has multiple circuit protections and is suitable for field applications. Both the PL-E90P and PB-290S+ can be purchased as a portable 3-light kit for convenience.

INCLUDED IN BOX
1x Swit 90W IP54 Waterproof SMD Panel [PL-E90P]
2x Swit 290Wh Heavy Duty IP54 Battery V-mount [PB-R290S+]

About The Swit PL-E60P Panel And 2x PB-R290S
Portable Bi-colour SMD Panel LED light – Waterproof (480 pcs, 90W, DMX) with 2x 290Wh Heavy Duty Digital Battery Pack Water/Dust Proof.

480pcs Edge Mounted LEDsSuper thin, area light, soft and glareless

PL-E90 is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for inter- view kit and field video productions.

Laser Dots 90° Light Guide High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

2200 Lux @ 1 meter 0-100% flick-free dimming

PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-colour Temperature 2700K-6500K continuously adjustable

PL-E90 alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Render Index: CRI Ra 98; TLCI 99

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while PL-E90 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

LCD Screen DisplayDimmer / colour / DMX channel, battery info

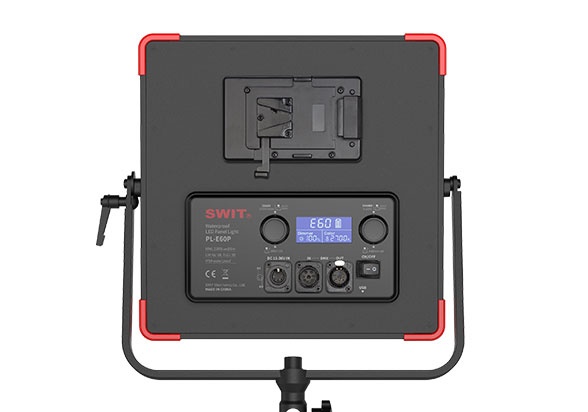

The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

Quick Adjust Mode by pressing the adjusting knob

PL-E90 supports quick adjusting brightness and colour temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

11-36V Wide Input Voltage. By V-mount/Gold mount battery or 4-pin XLR

PL-E90 supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.(The default battery plate is V-mount.)

Barn Door / Honeycomb – Optional accessories, each sold separately. Easy to assemble

PL-E90 has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble. Barn door (Model # LA-HE90) and Honeycomb (Model # LA-GE90) are optional purchased.

PB-R290S+ Batteries

Heavy Duty Battery: High load & IP54 waterproof

PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.

IP54 Waterproof 1.5 meters drop-off proof

PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.

290Wh / 20.1Ah Capacity

Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity.Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras – 250W / 20A constant load

PB-R290S+ provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

LED|480pcs SMD LEDs illuminance|2200Lux @ 1m Beam angle|70°(50% bounded) Colour Temperature|2700K~6500K CRI|98 TLCI|99 Power|Approx. 90W Working voltage|DC11V~36V Dimension|650×403×48mm Lighting area|526×257mm weight|4.75kg

PL-E90P 90W IP54 waterproof SMD Panel LED Light

480pcs edge mounted SMD-LEDs
Unique 90° light guide technology
90W power, 2200Lux @ 1meter
0-100% flick-free dimming
70° effective wide beam angle
2700K-6500K continuously adjustable
Super high CRI Ra 98, TLCI 99
LCD display colour, dimmer and battery info
DC 11-36V wide input voltage
Power by V-mount / Gold mount battery
Strong all-metal housing with U-stand
Provide portable 3-light kit
IP54 certificated waterproof
DMX512 control and Interaction control

PB-290S+ 290Wh Heavy Duty IP54 Battery

IP54 water/dust proof
Strong 1.5m drop off proof
14.4V, 290Wh capacity
250W, 20A constant high load
6A fast charging support
8-LED digital power indicators
SONY/RED viewfinder power info display
D-tap power output socket
V-mount connection
Multiple circuit protections
