Swit PL-E60D Bi-Colour 3-Light Kit

OVERVIEW
PL-E60D is a unique LED light with 320pcs edge mounted SMD-LEDs, using SWIT’s innovative 90° light guide technology to output bright, soft and equally spread light. It has a slim and portable design, making it ideal for field portable lighting applications such as interviews and field video productions. With a high efficiency and super bright laser dots 90° light guide, it can output 1500Lux luminance at 1-meter distance, and supports 0-100% flick-free dimming. It also offers a bi-colour temperature range of 2700K-6500K, with a high CRI of 98 and TLCI of 99, ensuring the original colours of objects are not lost. The LCD screen display shows dimmer and colour temperature values, as well as battery information. It also has a quick adjust mode for easy and quick adjustments, and supports DMX512 control for dimming and colour temperature adjustments.

PL-E60D has a wide input voltage range of 11-36V, and can be powered by V-mount or Gold mount batteries. Optional accessories such as a 4-leaf barn door and 40° honeycomb can be purchased separately for easy assembly. It also has an interaction control mode, allowing multiple lights to be controlled together without a DMX controller. With its strong all-metal housing and U-stand, it provides a portable 3-light kit for convenient use. Overall, PL-E60D is a versatile and powerful LED light that is suitable for various lighting needs in the field.

SUMMARY
Type: Single Light
INCLUDED IN BOX
3x PL-E60D lights
3x AC-DC power adaptors
3x Lighting tripods (49-200cm)
1x Trolley case

About The Swit PL-E60D Bi-Colour 3-Light Kit

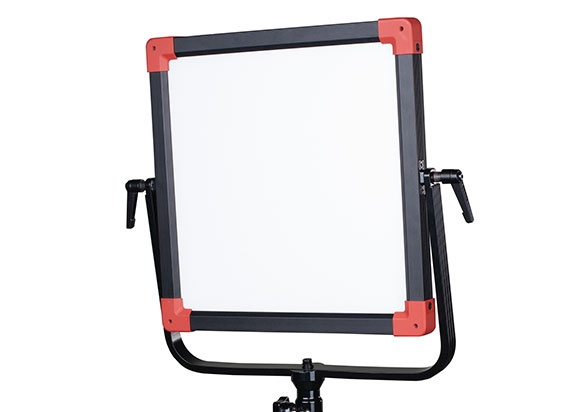

320pcs Edge Mounted LEDs

Super thin, area light, soft and glare less

PL-E60D is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide

High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 meter

0-100% flick-free dimming

PL-E60D outputs 60W power, feeds 1500Lux luminance at 1-meter distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-colour Temperature

2700K-6500K continuously adjustable

PL-E60D alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High colour Reveal Ability

CRI Ra 98; TLCI 99

CRI (colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

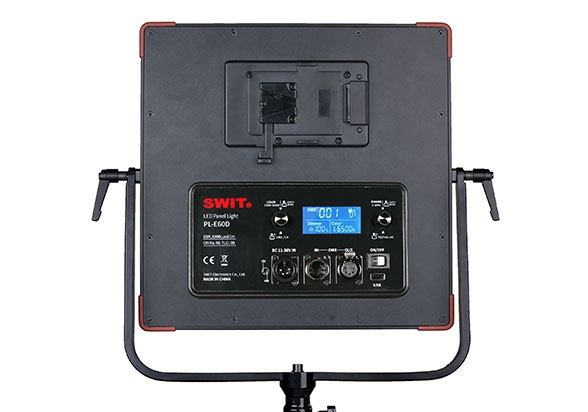

LCD Screen Display

Dimmer / colour temperature value, battery info

The rear LCD screen can display the current dimmer percentage, colour temperature value, and remaining battery indications.

Quick Adjust Mode

By pressing the adjusting knob

PL-E60D supports quick adjusting brightness and colour temperature:

Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;

Press colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

DMX512 control

Dimmer and colour temperature

PL-E60D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller.

The dimmer and colour temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512.

Interaction Control Mode

Control the lights each other without a DMX controller

Press and hold colour temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows “CH” indicating that the communication control mode currently is interaction control mode. In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.

Press and hold dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512.

Interaction Control Mode Demonstration

Set the corresponding “CH” address for the PL-E60D which are in the same network to the requirement

Operate any of the CH 001 light, all the other CH 001 lights can be controlled together.

Max 512 CH addresses can be set.

11-36V Wide Input Voltage

By V-mount/Gold mount battery or 4-pin XLR

PL-E60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.

(The default battery plate is V-mount.)

Barn Door / Honeycomb

Optional purchase, Easy to assemble

PL-E60D has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble.

Barn door (Model # LA-HE60) and Honeycomb (Model # LA-GE60) are optional purchased.

LED 320pcs SMD LEDs
Illuminance 1500Lux @ 1m
Beam angle 70° (50% bounded)
colour Temperature 2700K～6500K
CRI 98
TLCI 99
Power Approx. 60W
Working voltage DC11V～36V
Dimension 382 x 403 x 48mm
Lighting area 257 x 257mm
Weight 3.2kg

320pcs edge mounted SMD-LEDs
Unique 90° light guide technology
60W power, 1500Lux @ 1meter
0-100% flick-free dimming
70° effective wide beam angle
2700K-6500K continuously adjustable
Super high CRI Ra 98, TLCI 99
LCD display colour, dimmer and battery info
DC 11-36V wide input voltage
Power by V-mount / Gold mount battery
DMX512 control and Interaction control
Strong all-metal housing with U-stand
Provide portable 3-light kit
Optional 4-leaf barn door and 40° honeycomb
