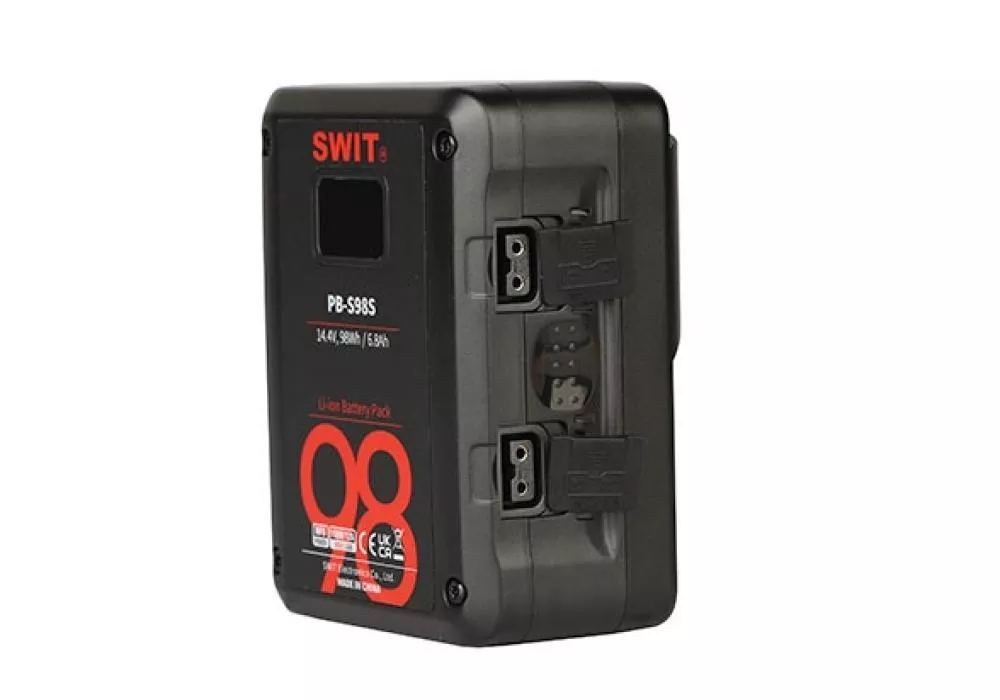

Swit PB-S98S Battery – VM

OVERVIEW
The PB-S series camera batteries are designed in a square shape, specifically for Cine-cameras. They have a maximum load of 100W and 8A, with 2 D-tap output sockets (max 100W/8A in total) and 1 USB 5V/2A power output socket. The LCD display accurately shows the remaining run time and power information for both SONY and RED cameras. It also has multiple circuit protections to ensure safety.

The PB-S98S battery is compact and shorter than normal V/Gold mount batteries, making it a perfect match for most Cine-cameras. It consists of 12 high-quality 18650 battery cells with a nominal voltage of 14.4V and a capacity of 98Wh / 6.6Ah. It can run for approximately 3 hours on normal ENG cameras. Additionally, it has 2 D-tap DC output sockets with a maximum output current of 8A and 100W, as well as 1 USB 5V/2A output for charging other devices. The build-in LCD displays important information such as remaining power percentage, working time, low power warning, and battery cycle times. It also supports viewfinder info display on both SONY and RED DSMC2 cameras.

SUMMARY
Battery Capacity: 98Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x Battery Pack

About The Swit PB-S98S Battery – VM
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras. Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. Can run approx 3 hours for normal ENG cameras.

PB-S98S is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W. PB-S98S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED DSMC2 cameras.

Battery plate V-mount
Nominal voltage 14.4V
Capacity 98Wh,6.8Ah
Max output
Electrodes 100W,8A
D-TAP 100W,8A
USB 10W,5V/2A
In total 100W
Dimension 121×95×59mm
Net weight 0.809kg
Max charging current 3A
D-TAP socket number 2
USB socket number 1
Square shape design for Cine-cameras
Max 100W, 8A load
2× D-tap output sockets (Max 100W/8A in total)
1× USB 5V/2A power output sockets
LCD display accurate remaining run time
Display power info in both SONY & RED
Multiple circuit protections
