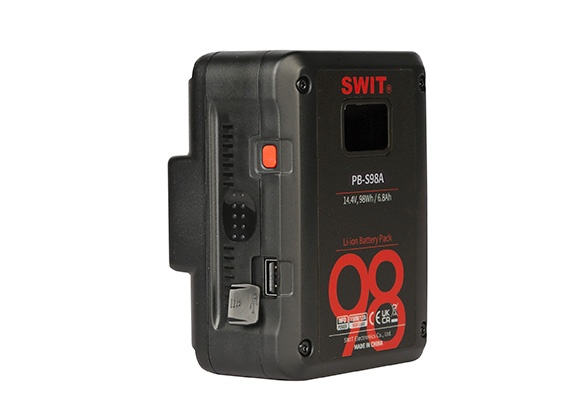

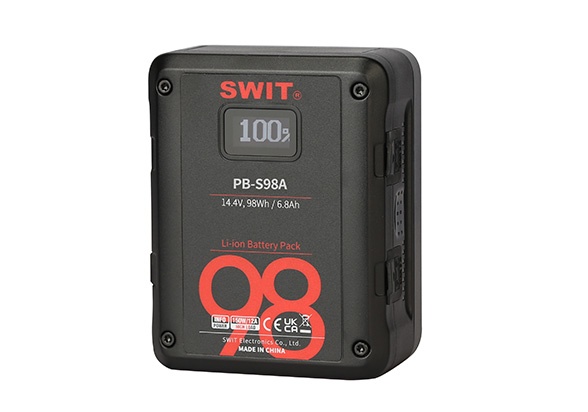

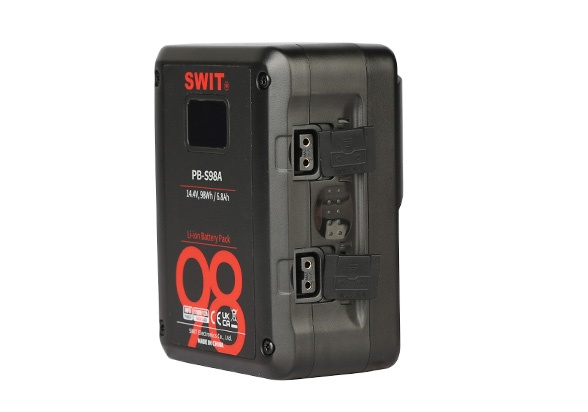

Swit PB-S98A Battery – Gold Mnt

OVERVIEW
The PB-S series camera batteries are designed in a square shape specifically for Cine-cameras. They have a maximum load capacity of 100W and 8A. The batteries have 2 D-tap output sockets, each with a maximum output of 100W/8A. Additionally, there is 1 USB 5V/2A power output socket. The LCD display accurately shows the remaining run time and power information for both SONY and RED cameras. The batteries also have multiple circuit protections to ensure safety.

The PB-S98A model is compact and shorter than normal batteries, making it a perfect match for most Cine-cameras. It consists of 12 high-quality 18650 battery cells and has a nominal voltage of 14.4V. With a capacity of 98Wh/6.6Ah, it can run for approximately 3 hours on normal ENG cameras. This model also has 2 D-tap DC output sockets with a maximum output current of 8A and 100W, as well as 1 USB 5V/2A output for charging other devices. The built-in LCD display provides information on remaining power, working time, low power warning, and battery cycle times, and can display viewfinder information for both SONY and RED cameras.

SUMMARY
Battery Capacity: 98Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x PB-S98A Battery – Gold Mount

About The Swit PB-S98A Battery – Gold Mnt
PB-S series camera batteries are compact designed, shorter than normal batteries, and match perfectly with most of the Cine-cameras. Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. Can run approx 3 hours for normal ENG cameras.

PB-S98A is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W. PB-S98A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery plate Gold-mount
Nominal voltage 14.4V
Capacity 98Wh,6.8Ah
Max output
Electrodes 100W,8A
D-TAP 100W,8A
USB 10W,5V/2A
In total 100W
Dimension 121×95×59mm
Net weight 0.809kg
Max charging current 3A
D-TAP socket number 2
USB socket number 1

Square shape design for Cine-cameras
Max 100W, 8A load
2× D-tap output sockets (Max 100W/8A in total)
1× USB 5V/2A power output sockets
LCD display accurate remaining run time
Display power info in both SONY & RED
Multiple circuit protections
