OVERVIEW
PB-S series camera batteries are designed in a square shape specifically for Cine-cameras. They have a larger capacity of 146Wh and 10.1Ah, making them perfect for high load situations. With at least 200W and 16A constant high load, these batteries can power multiple devices at once through their 2 D-tap output sockets and 1 USB 5V/2A power output socket. The LCD display accurately shows remaining run time and power information for both SONY and RED cameras. These batteries also have multiple circuit protections to ensure safe and efficient use.
PB-S146S batteries are compact and shorter than normal V/Gold mount batteries, making them a perfect fit for most Cine-cameras. They have a high capacity of 146Wh and 10.1Ah, providing approximately 5 hours of power for normal 30W cameras. With a high load of at least 200W and 16A, these batteries are able to drive high power Cine-cameras and on-camera devices together. The LCD display also shows warning codes for common battery protections, such as over-voltage, over-current, and temperature protection. In case of a more serious error, the battery should not be disassembled and the manufacturer should be contacted for repair.
SUMMARY
Battery Capacity: 146Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x 146Wh Multi-sockets Square Digital Battery Pack

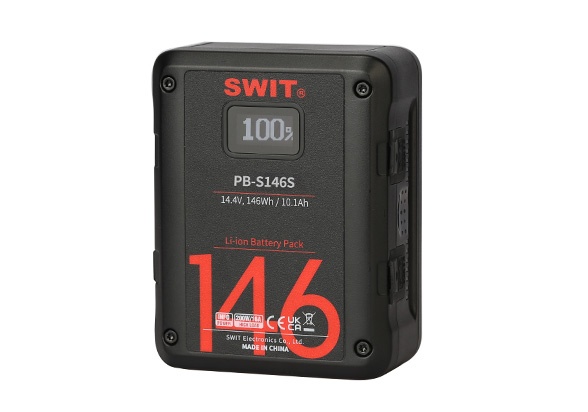

About The Swit PB-S146S 146Wh Multi-Sockets Battery Pack
Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
146Wh /10.1Ah Capacity
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras.
High Load for Cine Cameras
At least 200W / 16A load.
PB-S146S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A.

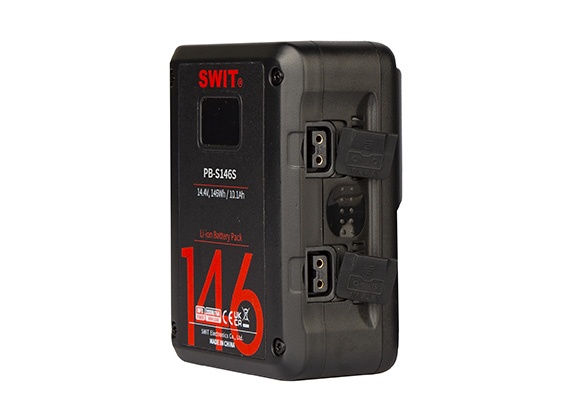

2× D-tap, 1× USB
PB-S146S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
Digital Power Info
LCD display accurate remaining run time.
The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
LCD warning codes description
P01 – P13: The battery trigger protection function and it can be recovered;E01 – E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery.When the battery rests over 10 days or runs out of power, it will enter sleep mode and the LCD will not display.
Common battery protection codes:
P01: Run out of power, please charge the battery asap. P02: Over-voltage when charging, please remove the battery, discharge the battery to decrease voltage to recover. P03: Over-current when charging, please remove the battery, and it will recover after 30 seconds. P05-07: The load is too heavy, please remove the battery, and it will recover after 30 seconds. P08-09: Battery short circuit, please remover the battery and make sure electrodes are clean, and it will recover after 30 seconds. P10-13: Temperature protection, please remove the battery and place at room temperature to recover.
Battery plate V-mount
Nominal voltage 14.4V
Capacity 146Wh, 10.1Ah
Max output In total: 200W
Electrodes: 200W,16A
USB:10W, 5V/2A
D-tap: 120W / 10A
Dimension 121×95×59mm
Net weight 0.878kg
Max charging current 5A
D-TAP socket number 2
USB socket number 1
Square shape design for Cine-cameras
146Wh, 10.1Ah larger capacity
At least 200W, 16A constant high load
2× D-tap output sockets (120W/10A in total)
1× USB 5V/2A power output sockets
LCD display accurate remaining run time
Display power info in both SONY & RED
Multiple circuit protections
