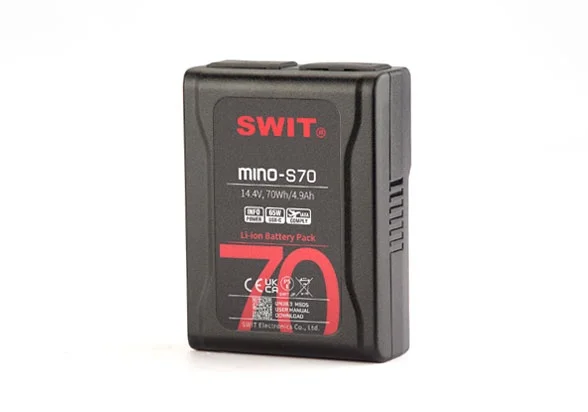

Swit Mino-S70 Pocket V-Mount Battery

240.83

MINO-S70

Compare
Category:

OVERVIEW
The MINO-S70 is a compact V-mount battery that is designed to easily fit into your pocket. It is specifically designed to support the RED V-Raptor installation and has a high capacity of 70Wh/4.9Ah. With a constant power load of 100W/8A, this battery also features a D-tap output and charging input, a USB-A 5V/2A output, and a USB-C 35W input and 65W output. It also has a 4-step LED power indicator and provides power information for both SONY and RED cameras. With its innovative wire-free internal technology, this battery offers multiple circuit protections and is suitable for use with various camera gears.

The MINO-S70 is a tiny-sized V-mount battery that is only 37mm thick and weighs just 419g, making it perfect for handheld cameras and other camera gears. It has 4 high capacity cells that provide a 70Wh/4.9Ah capacity and can support a constant high load output of 100W/8A. This battery also features a D-tap, USB-A, and USB-C ports, with the USB-C port offering both charging input and power output capabilities. With a charging input of 35W, the MINO-S70 can be fully charged within 2.5 hours and also has a power output of 65W, making it suitable for powering laptops on film sets. Its wire-free internal technology ensures a stable, safe, and reliable circuit, making it a versatile and efficient choice for all your power needs.

SUMMARY
Battery Capacity: 70Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x Swit 70Wh Pocket V-Mount Battery Pack

About The Swit Mino-S70 Pocket V-Mount Battery
Tiny Size 70Wh V-mount

MINO-S70 is a pocket fit tiny size V-mount battery for handheld cameras, monitors and other camera gears. It powers RED V-raptor for at least 1 hour and offers minimum weight for stablizer installation.

Thinner and Light Weight

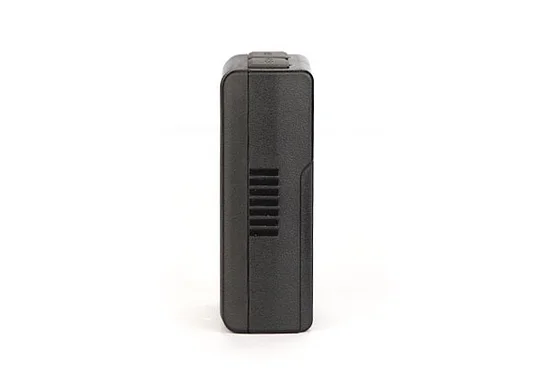

The MINO-S70 is 37mm thickness, standard V-mount connector, and only 419g light weight for handheld camera gears.

70Wh, 100W/8A Load

MINO-S70 consists of 4 high capacity cells, with 70Wh/4.9Ah high capacity, and support at least 100W/8A constant high load output.

D-tap, USB-A and USB-C

The tiny size MINO-S70 didn’t compromize on DC sockets.
D-tap x1 – 100W/8A load (Support charging input)
USB-A x1 – 5V/2A output
USB-C x1 – 65W output and 35W charging input

USB-C 35W Charging Input

MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging input, which means you can fully charge the 70Wh battery within 2.5 hours.

USB-C 65W Power Output

You can power laptop via USB-C by MINO-S70 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

Wire-Free Internal Tech

MINO-S70 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

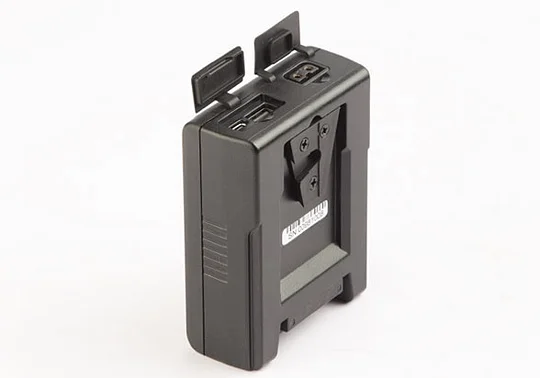

Battery plate V-mount
Nominal voltage 14.4V
Capacity 70Wh, 4.9Ah
Power IN&OUT:
Electrodes 100W 8A out, 16.8V 3A in
D-tap 100W 8A out, 16.8V 3A in
USB-A 10W, 5V/2A out
USB-C Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 35W in, 5V/9V/12V/15V/20V(Max) 1.75A
Dimension 105×79.6×37mm (Fit RED Raptor)
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight 419g

Tiny V-mount battery, Pocket fit
Support RED V-Raptor install
70Wh/4.9Ah high capacity
100W/8A constant power load
1x D-tap output & charging input
1x USB-A 5V/2A output
1x USB-C 35W input & 65W output
4-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections
