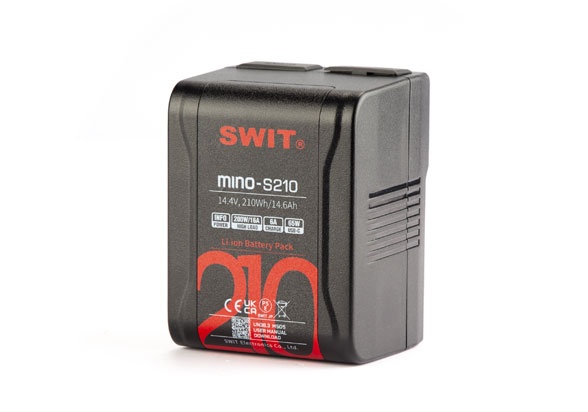

Swit Mino-S210 Pocket V-Mount Battery

390.00

MINO-S210

Compare
Category:

OVERVIEW
The MINO-S210 is a compact V-mount battery with a high capacity of 210Wh/14.6Ah. It is specifically designed to support the installation of the RED V-Raptor and can provide a constant high load of 200W/16A. With ultra-fast charging capabilities of 100W/6A, it is equipped with a D-tap output and charging input, as well as a USB-A 5V/2A output and a USB-C 48W input and 65W output. The battery also features a 4-step LED power indicator and provides power information for both SONY and RED devices. It utilizes wire-free internal technology and has multiple circuit protections for safety and reliability.

The MINO-S210 is the smallest 210Wh V-mount battery available, making it perfect for use with cine range cameras, lights, and other film equipment. Despite its large capacity, it has a compact handheld size of 105×79.6×73.8mm and weighs only 1.02kg, making it easy to carry in your pocket. It can power the RED V-raptor for at least 3 hours and is compatible with various film gears. With 12 high capacity cells, it can support a high load of 200W/16A, making it suitable for high power cine cameras and lights. The battery also features multiple DC sockets, including a D-tap, USB-A, and USB-C, and can be charged via USB-C with a PD charger for fast charging. It also has a USB-C 65W power output, making it possible to power laptops on film sets with various protocols supported.

SUMMARY
Battery Capacity: 210Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x Swit 210Wh Pocket V-mount Battery Pack

About The Swit Mino-S210 Pocket V-Mount Battery
The Smallest 210Wh V-mount Battery

MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

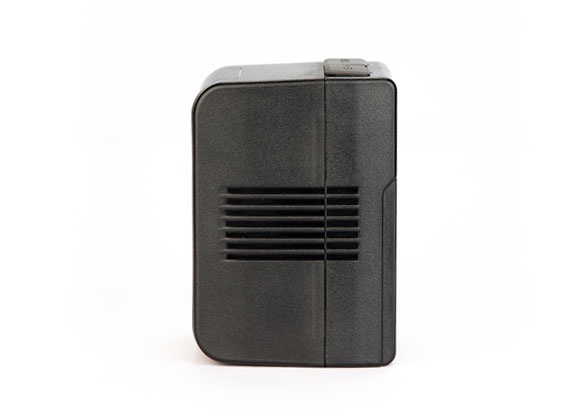

Compact Handheld Size

As a 210Wh large capacity battery, the MINO-S210 has 105×79.6×73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.

210Wh, 200W High Load

MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights..

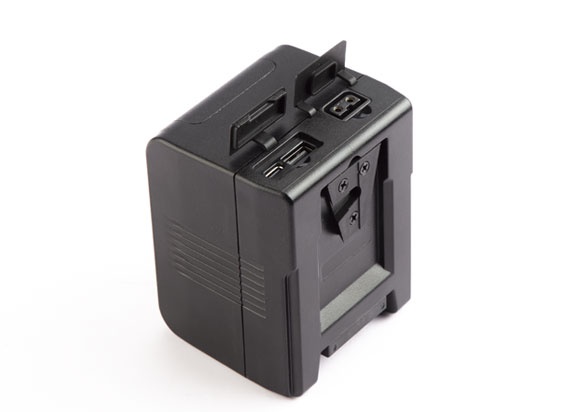

D-tap, USB-A and USB-C

The MINO-S210 provides various DC sockets:
D-tap x1 – 200W/16A load (Support charging input)
USB-A x1 – 5V/2A output
USB-C x1 – 65W output and 48W charging input

USB-C 48W Charging Input

MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.

USB-C 65W Power Output

You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

Wire-Free Internal Tech

MINO-S210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Battery plate V-mount
Nominal voltage 14.4V
Capacity 210Wh, 14.6Ah
Power IN&OUT:
Electrodes 200W 16A out, 16.8V 6A in
D-tap 200W 16A out, 16.8V 6A in
USB-A 10W, 5V/2A out
USB-C Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A
Dimension 105×79.6×73.8mm (Fit RED Raptor)
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight 1.02kg

Pocket fit compact V-mount battery
Support RED V-Raptor install
210Wh/14.6Ah high capacity
200W/16A constant high load
100W/6A ultra fast charging
1x D-tap output & charging input
1x USB-A 5V/2A output
1x USB-C 48W input & 65W output
4-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections
