Swit M-1073H Dual 7-Inch LCD Monitor

OVERVIEW
The M-1073H is a high-quality monitor designed for professional use. It features dual 7-inch non-glaring LCD panels with LED backlight and a native resolution of 1920×1200. The monitor can be mounted on a 19-inch 3U rack and rotated up to ±30°. It offers multiple input and output options, including 2K/3G/HD/SD-SDI and HDMI 2.0, and supports 16-ch embedded audio meters with alert. Users can also import their own 3DLUT cube files and use features like zebra stripes, false color, and timecode display.

The M-1073H also has built-in camera logs to Rec.709 conversion LUTs and supports on-screen TALLY display. It can be easily upgraded through a USB port and comes with a DC power input socket and an AC-DC adaptor. This 3U height monitor is perfect for professional settings and offers various features to enhance the viewing experience.

SUMMARY
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
3G-SDI
HD-SDI
HDMI
RS485
SD-SDI
USB
Outputs:
3.5mm Jack
3G-SDI
HD-SDI
HDMI
SD-SDI
Recording: No
INCLUDED IN BOX
1 x Swit M-1073H (M1073H) Dual 7-inch FHD Rack LCD Monitor

About The Swit M-1073H Dual 7-Inch LCD Monitor

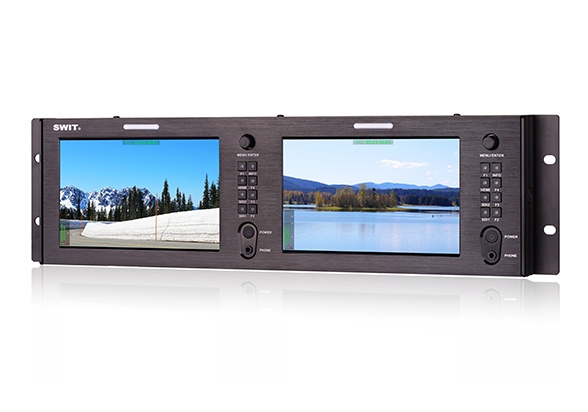

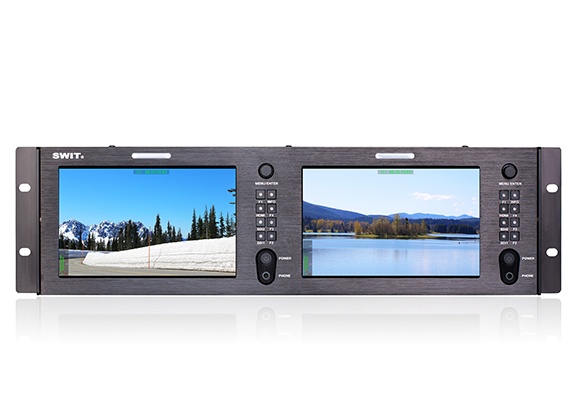

The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°.

Each LCD of M-1073H supports: 2K/3G/HD/SD-SDI input × 2, 2K/3G/HD/SD-SDI loop output × 1, HDMI 2.0 (4K60p) input × 1, HDMI 2.0 (4K60p) loop output × 1, 3.5mm SDI/HDMI embedded audio output.

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.

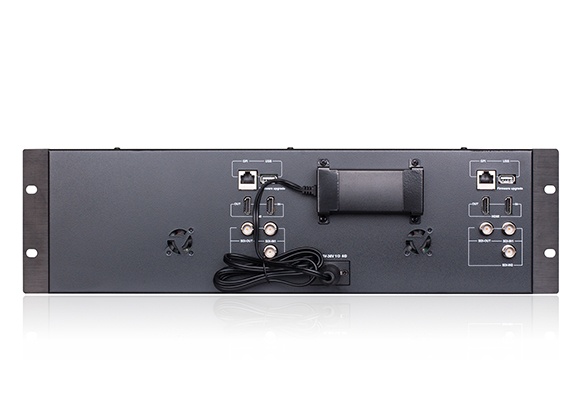

M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor. M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.

Size 7 inches
Display area 151.2×94.5mm
Resolution 1920×1200
Aspect ratio 16:9 (4:3 adjustable)
Brightness 400cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 160°; Vertical: 160°
Input(Each LCD) BNC×2: 2K/3G/HD/SD-SDI input
HDMI ×1: HDMI 2.0 input
USB ×1: Firmware upgrade
RS485 ×1: GPI (Tally) input
Output(Each LCD) BNC ×1: 2K/3G/HD/SD-SDI loop output
HDMI ×1: HDMI 2.0 loop output
3.5mm ×1: SDI, HDMI embedded audio output
Video Format – SDI SMPTE 2048-2: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048×1080i (60 / 59.94 / 50）
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 /23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
Video Format – HDMI 4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 /59.94/50)
720p (60/59.94 /50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
Working voltage DC battery 6.5V-36V
Power consumption 18-26W
Working temperature -10°C～+50°C
Working humidity 10%～90%
Storage temperature -15°C～+60°C
Storage humidity 10%～90%
Dimensions 485×130×82mm
Net weight (main body) 2.4kg

Dual 7” non-glaring LCD, 1920×1200
19-inch 3U rack mount, ±30° rotatable
2K/3G/HD/SD-SDI input & loop output
HDMI 2.0 (4K60p) input & loop output
16-ch embedded audio meters with alert
Select any 2 audio channels to output
9 steps quick zoom-in and mapping
Focus assist with precision adjustment
Build-in multi-camera logs to Rec.709
User 3DLUT cube file import by USB
On-screen TALLY display and GPI
Zebra stripes, False color, R/G/B/Mono
H/V delay, AFD, Timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
USB firmware upgrade
