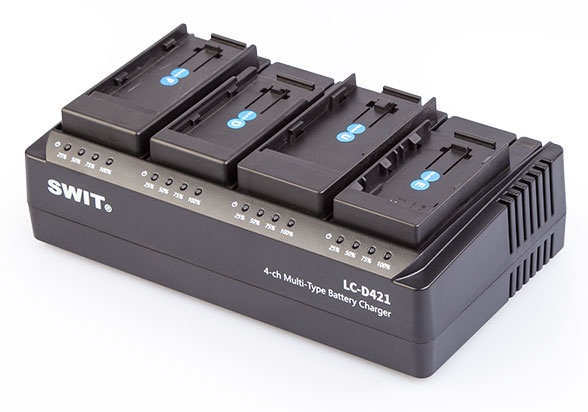

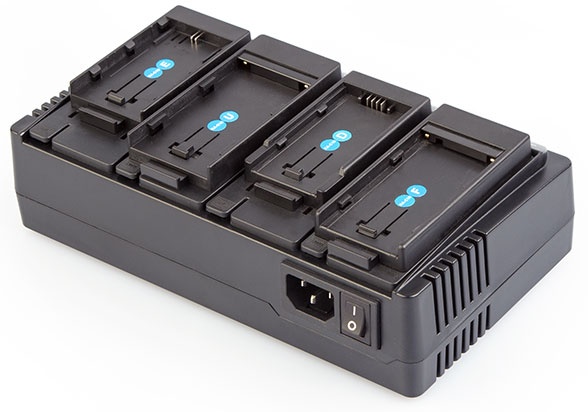

Swit LC-D421 W/Panasonic VBG Plate X4

OVERVIEW
The LC-D421 is a 4-channel DV charger that supports simultaneous charging of up to four batteries. Each channel has a 2A charging current, making it a fast and efficient option for charging multiple batteries at once. The charger also features snap-on exchangeable DV plates, allowing it to support a variety of DV battery types.

With the ability to charge different types of DV batteries at the same time, the LC-D421 offers convenience and versatility. It supports U, F, D, B, C, I, V, and E plates, making it compatible with a wide range of battery makes and models. The charger also has 4 LED indicators for each channel, providing real-time updates on the battery capacity level. In case of any issues, simply check the battery and plate connections and restart the charger.

SUMMARY
Battery / Mount Compatibility: Panasonic VBG
Charging Ports: 4
INCLUDED IN BOX
1x 4-ch Multi-type DV Charger (LC-D421)
4x Battery plates (KA-C10B)

About The Swit LC-D421 W/Panasonic VBG Plate X4
4-channel DV Charger

2A per channel

LC-D421 can charge 4 DV batteries simultaneously, with 2A charging current per channel. Users can exchange different types of battery plate to charge different types of DV batteries together.

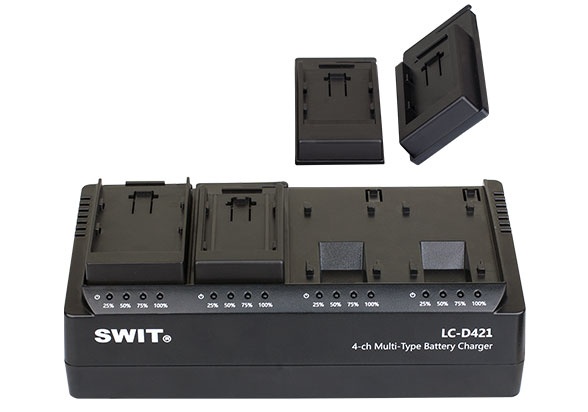

Exchangeable DV Plates

Snap-on type quick exchangeable DV battery plates enable support for various battery makes and models.

LED Charging Indicators

LC-D421 charger has 4-LED indicators for each charging channel, and display the real-time battery capacity level.In case of the 4 LEDs are all flashing or all off, please check the connection condition of the batteries and plates, and restart the charger.

Input 100～ 240VA, 50/60Hz
Max input power 100W
Charging output DC 8.4V, Max 2A×4-ch
Working temperature 0°C～+40°C
Working humidity 10%～90%
Dimensions 220mm×125mm×69.3mm
Weight Approx. 713g
Compatible Plate models Applicable batteries
KA-C10U SONY BP-U series, SWIT S-8U65, S-8U95
KA-C10F SONY NP-F series, SWIT S-8972, S-8970, S-8770
KA-C10D Panasonic VBD/CGA series；SWIT S-8D98, S-8D58, S-8D62
KA-C10B (included) Panasonic VBG series, SWIT S-8BG6
KA-C10C Canon BP series, SWIT S-8945, S-8845
KA-C10I JVC SSL series, SWIT S-8I75, S-8I50
KA-C10V JVC BNV series, SWIT S-8823
KA-C10E Canon LP-E6, SWIT S-8PE6

4-ch simultaneous charging
2A charging current per channel
Snap-on exchangeable DV plates
Mixed types of DV batteries charging
U/F/D/B/C/I/V/E plates supported
4-LED charging indicators
