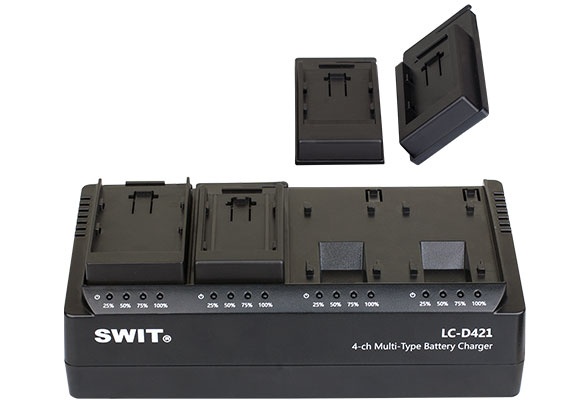

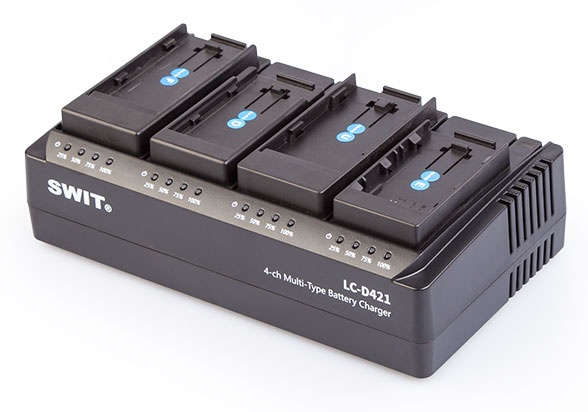

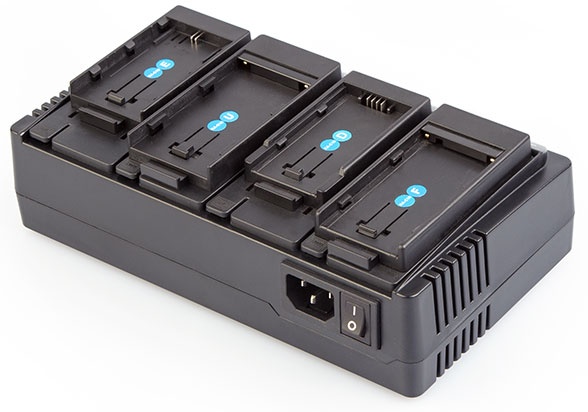

Swit LC-D421 W/Canon LP-E Plate X4




The LC-D421 is a 4-channel DV charger that allows for simultaneous charging of up to four DV batteries. Each channel has a charging current of 2A, ensuring efficient and fast charging. The charger also supports various types of DV batteries, thanks to its snap-on exchangeable DV plates.

With the ability to switch between U/F/D/B/C/I/V/E plates, users can easily charge different types of DV batteries together. The charger also features 4 LED charging indicators, one for each channel, to display the real-time battery capacity level. In case of any issues, users can easily check the connection condition of the batteries and plates and restart the charger.

Battery / Mount Compatibility: Canon LP
Charging Ports: 4
1x 4-ch Multi-type DV Charger (LC-D421)
4x Battery plates (KA-C10E)

About The Swit LC-D421 W/Canon LP-E Plate X4
4-channel DV Charger

2A per channel

LC-D421 can charge 4 DV batteries simultaneously, with 2A charging current per channel. Users can exchange different types of battery plate to charge different types of DV batteries together.

Exchangeable DV Plates

Snap-on type quick exchangeable DV battery plates enable support for various battery makes and models.

LED Charging Indicators

LC-D421 charger has 4-LED indicators for each charging channel, and display the real-time battery capacity level.In case of the 4 LEDs are all flashing or all off, please check the connection condition of the batteries and plates, and restart the charger.

Input 100~ 240VA, 50/60Hz
Max input power 100W
Charging output DC 8.4V, Max 2A×4-ch
Working temperature 0°C~+40°C
Working humidity 10%~90%
Dimensions 220mm×125mm×69.3mm
Weight Approx. 713g
Compatible Plate models Applicable batteries
KA-C10U SONY BP-U series, SWIT S-8U65, S-8U95
KA-C10F SONY NP-F series, SWIT S-8972, S-8970, S-8770
KA-C10D Panasonic VBD/CGA series;SWIT S-8D98, S-8D58, S-8D62
KA-C10B Panasonic VBG series, SWIT S-8BG6
KA-C10C Canon BP series, SWIT S-8945, S-8845
KA-C10I JVC SSL series, SWIT S-8I75, S-8I50
KA-C10V JVC BNV series, SWIT S-8823
KA-C10E (included) Canon LP-E6, SWIT S-8PE6

4-ch simultaneous charging
2A charging current per channel
Snap-on exchangeable DV plates
Mixed types of DV batteries charging
U/F/D/B/C/I/V/E plates supported
4-LED charging indicators
