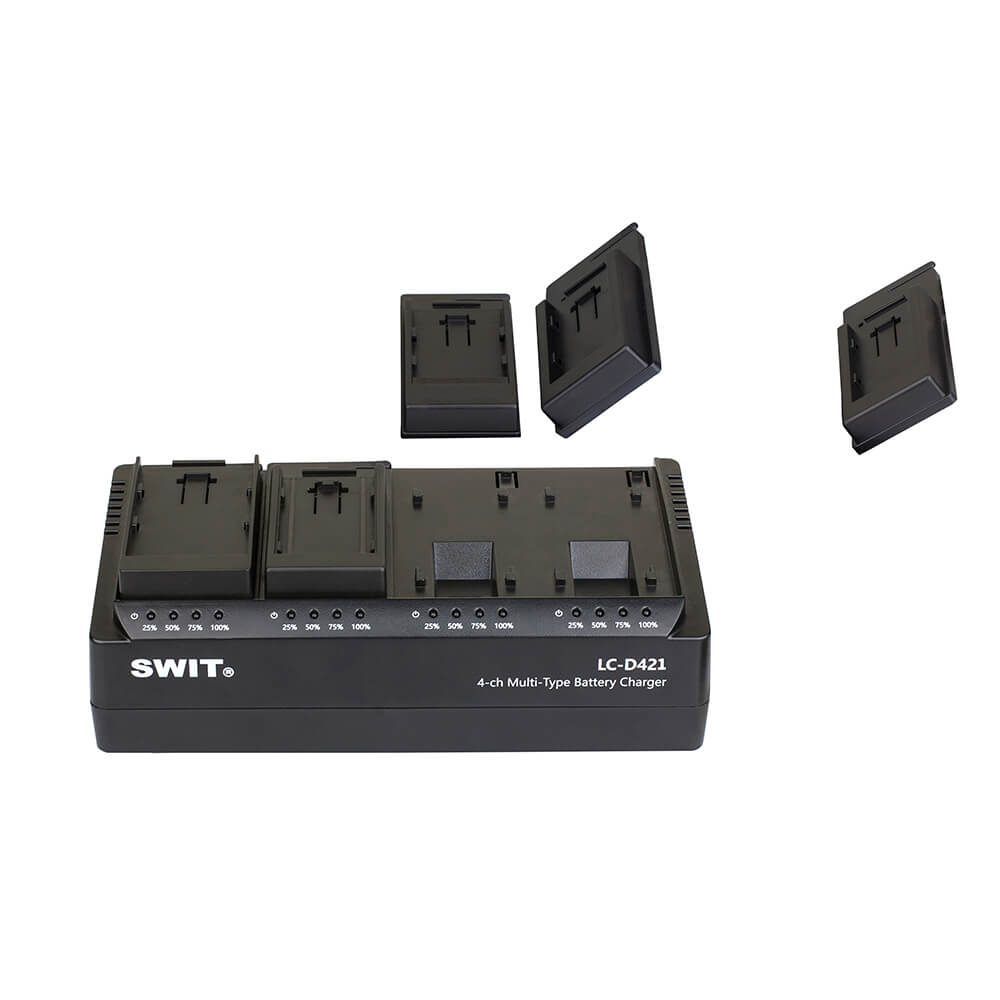

Swit LC-D421 W/Canon BP Plate X4

OVERVIEW
The LC-D421 is a 4-channel DV charger that allows for simultaneous charging of up to 4 DV batteries. Each channel has a charging current of 2A, providing efficient and fast charging for multiple batteries at once. The charger also features snap-on exchangeable DV plates, making it compatible with different types of DV batteries.

Users can mix and match different types of DV batteries for charging, as long as they are supported by the U/F/D/B/C/I/V/E plates. The LC-D421 also comes equipped with 4-LED charging indicators for each channel, displaying the real-time battery capacity level. In the event that all 4 LEDs are flashing or off, it is recommended to check the connection of the batteries and plates and restart the charger.

SUMMARY
Battery / Mount Compatibility: Canon BP
Charging Ports: 4
INCLUDED IN BOX
1x 4-ch Multi-type DV Charger (LC-D421)
4x Battery plates (KA-C10C)

About The Swit LC-D421 W/Canon BP Plate X4
4-channel DV Charger

2A per channel

LC-D421 can charge 4 DV batteries simultaneously, with 2A charging current per channel. Users can exchange different types of battery plate to charge different types of DV batteries together.

Exchangeable DV Plates

Snap-on type quick exchangeable DV battery plates enable support for various battery makes and models.

LED Charging Indicators

LC-D421 charger has 4-LED indicators for each charging channel, and display the real-time battery capacity level.In case of the 4 LEDs are all flashing or all off, please check the connection condition of the batteries and plates, and restart the charger.

Input 100～ 240VA, 50/60Hz
Max input power 100W
Charging output DC 8.4V, Max 2A×4-ch
Working temperature 0°C～+40°C
Working humidity 10%～90%
Dimensions 220mm×125mm×69.3mm
Weight Approx. 713g
Compatible Plate models Applicable batteries
KA-C10U SONY BP-U series, SWIT S-8U65, S-8U95
KA-C10F SONY NP-F series, SWIT S-8972, S-8970, S-8770
KA-C10D Panasonic VBD/CGA series；SWIT S-8D98, S-8D58, S-8D62
KA-C10B Panasonic VBG series, SWIT S-8BG6
KA-C10C (included) Canon BP series, SWIT S-8945, S-8845
KA-C10I JVC SSL series, SWIT S-8I75, S-8I50
KA-C10V JVC BNV series, SWIT S-8823
KA-C10E Canon LP-E6, SWIT S-8PE6

4-ch simultaneous charging
2A charging current per channel
Snap-on exchangeable DV plates
Mixed types of DV batteries charging
U/F/D/B/C/I/V/E plates supported
4-LED charging indicators
