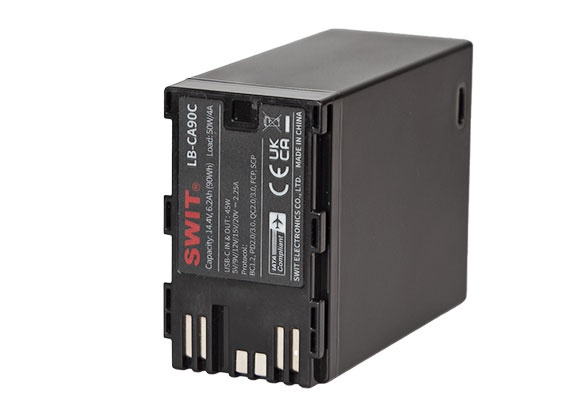

Swit LB-CA90C 90Wh BP-A-Type Battery

OVERVIEW
The LB-CA90C is a 90Wh Canon BP-A compatible battery with a D-tap output and 45W USB-C input and output. It is designed for use with Canon cameras such as the EOS C70, C200, C300MK2, C500MK2, XF605, and XF705. This battery has a 14.4V nominal voltage and a capacity of 90Wh / 6.2Ah, providing a constant power load of 50W/4A. It also features a built-in 14.4V D-tap output and charging input, as well as a 45W USB-C input and output.

The LB-CA90C is equipped with multiple circuit protections and a 4-level LED power indicator to show the remaining power percentage. It can be charged via USB-C or D-tap, with a charging time of 3 hours. Additionally, the USB-C output can be used to charge laptops, tablets, and smartphones, supporting multiple protocols. This battery is a reliable and versatile option for powering your Canon camera and other devices on the go.

SUMMARY
Battery Capacity: 90Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Canon BP-A
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x Swit (LB-CA90C) 90Wh BP-A-type DV Battery with USB-C and D-tap

About The Swit LB-CA90C 90Wh BP-A-Type Battery
90Wh Canon BP-A Battery with D-tap and USB-C
LB-CA90C is a 90Wh large capacity Canon BP-A compatible battery with D-tap output and 45W USB-C in/out, for Canon EOS C70, C200, C300MK2, C500MK2, XF605, XF705 cameras.

90Wh Large Capacity
LB-CA90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 50W/4A.

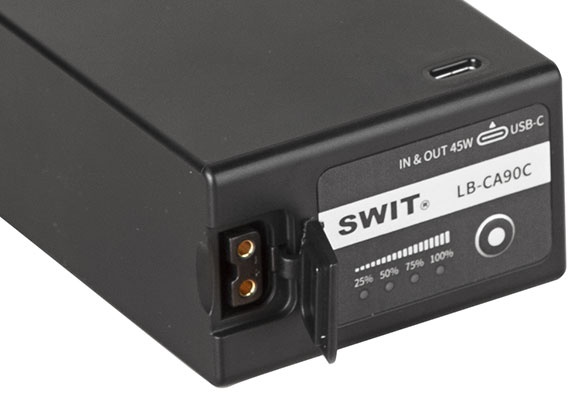

14.4V D-tap Power Socket
The LB-CA90C BP-A battery provides a D-tap power socket of 11-16.8V voltage, 50W/4A load for various kinds of video devices. You can also charge the battery via the D-tap socket.

USB-C 45W for Laptop
LB-CA90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptop, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook 13, Macbook Pro 13/15, ThinkPad New S2/T470/X270, Dell XPS 13/Latitude, HP Spectre x360-13/EliteBook Folio G1, Samsung Chromebook Plus, Google Pixelbook, Huawei Matebook, etc)

USB-C 45W Charging Input
You can also charge LB-CA90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.

D-tap Charging
Besides USB-C charging, LB-CA90C can be charged by Canon original CG-A20 charger, or by SWIT ultra portable 2-way D-tap charger PC-U130B2, fully charge within 2h 40m.

Nominal Voltage 14.4V
Capacity 90Wh, 6.2Ah
Max power load 50W, 4A
D-tap 14.4V, 50W, 4A
USB-C:
45W input 5V/9V/12V/15V/20V, 2.25A
45W output 5V/9V/12V/15V/20V, 2.25A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries Canon BP-A30, BP-A60
Compatible cameras Canon EOS-C70, EOS-C200,
Canon EOS-C300 Mark ii, EOS-C500 Mark ii
Canon XF605, Canon XF705
Dimension 70×42×96mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 460g

14.4V nominal voltage Li-ion battery
Canon BP-A30/A60 battery comparable
For Canon EOS-C70, C200, C300MK2, C500MK2
For Canon XF605, XF705
90Wh / 6.2Ah capacity
Built-in 14.4V D-tap output / Charging input
Built-in 45W USB-C input and output
4-level LED power indicator
Multiple circuit protections
