Swit FLOW500 Tx+2Rx Wireless System

1,462.00

FLOW500 TX+2RX

Compare

OVERVIEW
SWIT’s FLOW500 wireless system utilizes their latest KUWI technology, operating in the 5.1-5.9GHz band and complying with DFS regulations. It supports 3G/HD-SDI and HDMI signals up to 1080p60, with a line-of-sight range of 500ft/150m. The system is easy to set up and is commonly used for director monitoring, drone operation, and other applications.

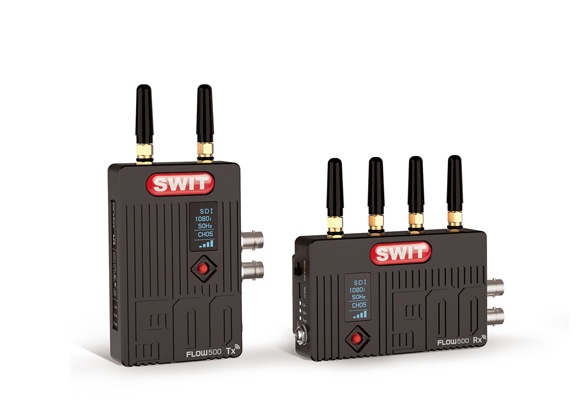

The transmitter has 2 omni antennas and supports 1x 3G/HD-SDI input, 1x 3G/HD-SDI loop output, and 1x HDMI input. The receiver has 4 omni antennas and supports 1x 3G/HD-SDI output and 1x HDMI output. The system also features OLED displays for signal format, wireless channel, and signal strength, as well as support for multicast and double encryption for secure transmission. Additionally, it offers signal re-clocking and accurate color reproduction for high-quality video output.

INCLUDED IN BOX
1x Carrying Case
1x AC-DC Adapter
1x D-tap to lockable Pole-tap cable
1x Cold Shoe and 1/4inch Arm Trestle
1x FLOW500 Trasmitter
2x FLOW500 Receiver

About The Swit FLOW500 Tx+2Rx Wireless System
KUWI Wireless Technology

SDI&HDMI 500ft / 150m (LOS)

FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Input & Output

The Transmitters (Tx) have 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
1x 3G/HD-SDI output
1x HDMI 1.3 output

SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

150 meters Transmission

Strong Wall-cross Performance
FLOW500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimise and image quality optimise, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.* Supports SDI & HDMI embedded audio (CH1&2) transmission.

OLED Display & Channel Switch

DFS comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.

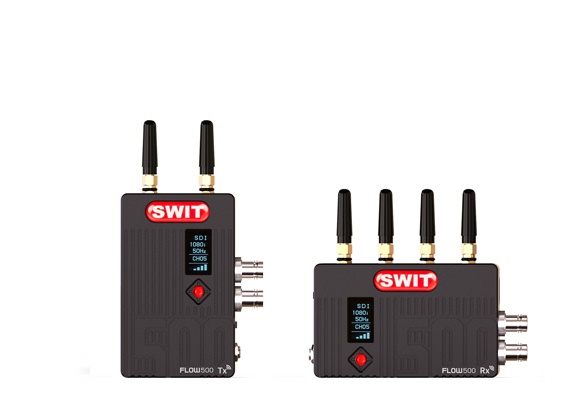

Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Reclock & Colour Reproduction

To ensure the quality of black level, signal noise and colour reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate colour reproduction.

USB Firmware Update

The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.

Power Supply

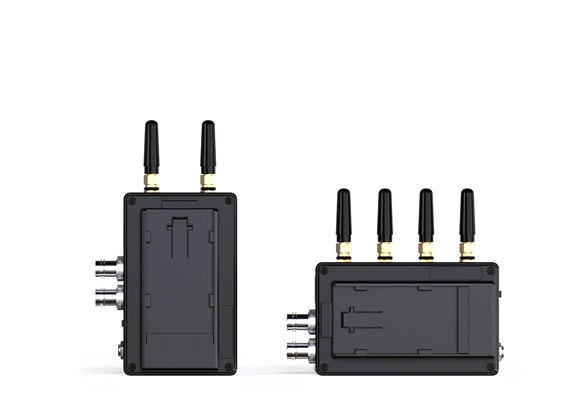

The power consumtion of Tx and Rx are less than 8W.Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.

Input / Output
Transmitter
3G/HD-SDI input×1; loop out x1
HDMI 1.3 input ×1
Receiver
3G/HD-SDI output×2
HDMI 1.3 output ×1
Video Formats
SDI 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
HDMI 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Wireless
Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power 128mW
Transmission Distance 500 feet / 150 meters (Line of sight)
General
Input voltage Transmitter DC 7-34V
Reveiver DC 7-34V
Power Consumption Transmitter 8W
Reveiver 8W
Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm)
Reveiver 106.5×66×24.7 (mm)
Net weight Transmitter 236g
Reveiver 245g
Working Temperature 0°C -+40°C

KUWI 5.1-5.9GHz Wireless Technology
DFS Comply
3GSDI & HDMI, with 3GSDI loop out
500ft/150m (Line-of-Sight) distance
Strong Wall-Cross Performance
2-ch SDI/HDMI audio transmission
OLED info and channel switching
Support 3-4 pairs working in one location
Multicast – 1 transmitter to Max 4 receivers
Wireless protocol & content double encryption
Reclock and accurate colour reproduction
