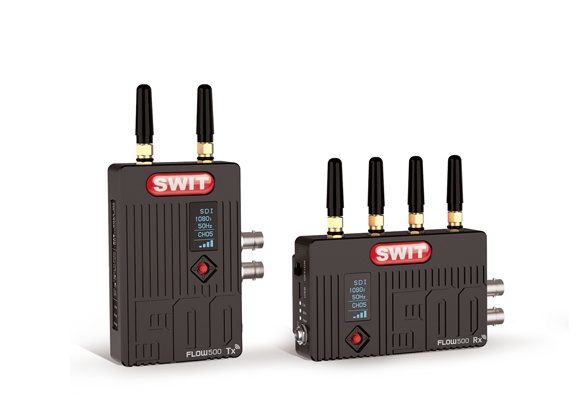

Swit FLOW500 Rx Wireless Reciever

OVERVIEW
KUWI 5.1-5.9GHz Wireless Technology is the foundation of the FLOW500 wireless system. It operates in the 5.1-5.9GHz license-free bands and is compliant with DFS regulations. The system can transmit 3G/HD-SDI and HDMI (up to 1080p60) signals up to 500 feet in line-of-sight distance. It is a plug-and-play system that is commonly used for director monitoring, drone, ropeway camera, and steadicam applications. The system also supports 2-channel SDI/HDMI audio transmission and has an OLED display for signal format, wireless channel number, and signal strength. It comes with a 2-year manufacturer’s warranty.

The FLOW500 wireless system boasts a strong wall-cross performance, thanks to its optimized RF and image quality. This ensures reliable transmission without data loss or crashes, even when faced with obstacles. The system also complies with DFS regulations and has a built-in wireless scanner to automatically select the best wireless channel. It can also be manually switched to one of the 7 non-DFS restricted channels. The system supports multicast, with one transmitter able to connect to a maximum of 4 receivers. The transmission is double encrypted for added security and also supports signal re-clock and accurate color reproduction. Firmware updates can be done through the Micro USB port on the FLOW series wireless system.

INCLUDED IN BOX
1x Receiver
1x AC-DC power adaptor

About The Swit FLOW500 Rx Wireless Reciever
KUWI Wireless Technology
SDI&HDMI 500ft (LOS)
FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

500 Feet Transmission
Strong Wall-cross Performance
FLOW500 wireless supports 500ft (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.* Supports SDI & HDMI embedded audio (CH1&2) transmission.

OLED Display & Channel Switch
DFS comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.You can also switch the wireless channels manually from 7 Non-DFS restricted channels.Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption
Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Reclock & Colour Reproduction
To ensure the quality of black level, signal noise and colour reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate colour reproduction.

USB Firmware Update
The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.

Input & Output:
Receiver (Rx) has 4 omni antennas, supports 2x 3G/HD-SDI output
1x HDMI 1.3 output
SDI & HDMI formats 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Power Supply The power consumption of Rx is <=8W. Rx is equipped with NP-F DV battery plate, 7-34V lockable DC input. KUWI 5.1-5.9GHz Wireless Technology DFS Comply 3GSDI & HDMI, with 3GSDI loop out 500ft (Line-of-Sight) distance Strong Wall-Cross Performance 2-ch SDI/HDMI audio transmission OLED info and channel switching Support 3-4 pairs working in one location Multicast - 1 transmitter to Max 4 receivers Wireless protocol & content double encryption Reclock and accurate color reproduction 2 years manufacturer's warranty
