Swit FLOW10K Wireless FHD System

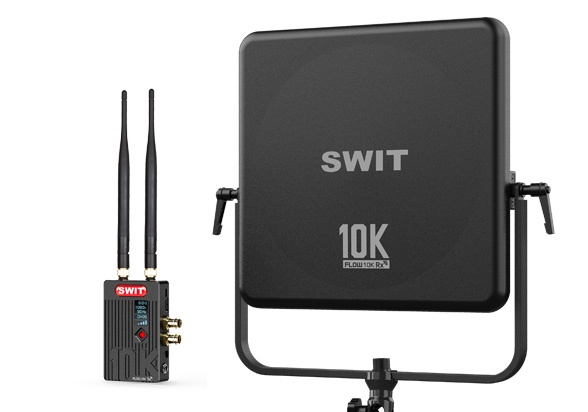

The FLOW10K wireless system, developed by SWIT, utilizes their innovative KUWI technology to provide a robust and high-quality wireless video transmission solution. With a range of up to 10000 feet, this system is perfect for film production and event broadcasting. It features a transmitter with 2 omni antennas, supporting SDI and HDMI inputs, and a receiver with a high-gain panel antenna for improved wall-cross performance. The system also boasts a low power consumption, OLED display for channel selection, and chip-level content encryption for secure transmission.

The FLOW series is designed to provide a stable connection even in the most complex wireless environments, such as crowded public spaces or areas with multiple electronic devices. It also offers the ability to pair one transmitter with multiple receivers, as well as cross-receiving with other FLOW series wireless systems. With features like signal re-clocking and accurate color reproduction, the FLOW10K is a reliable and professional wireless solution for any production or event.

1x Transmitter
1x Receiver
1x Cold shoe and 1/4inch Arm Trestle
1x D-tap to lockable Pole-tap cable
1x AC-DC adapter (3 meters)
1x Carrying Case

About The Swit FLOW10K Wireless FHD System
KUWI Wireless Technology

SDI&HDMI 10000ft / 3km long distance FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability. The long distance wireless can be widely used in film production, event broadcasting etc.

The Transmitter

The Transmitter has 2 omni antennas, supports: 1x 3G/HD-SDI input, 1x 3G/HD-SDI loop output, 1x HDMI 1.3 input

SDI & HDMI formats:

-1080p60, 1080p59.94, 1080p50
-1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
-1080psf23.98, 1080psf24
-1080i60, 1080i59.94, 1080i50;
-720p60, 720p59.94, 720p50

* Supports embedded audio (CH1&2) transmission.

10000ft/3km Long Distance

Strong Wall-cross Performance With the high gain panel receiver, FLOW10K supports 10000ft/3km (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimise and image quality optimise, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

Power Supply

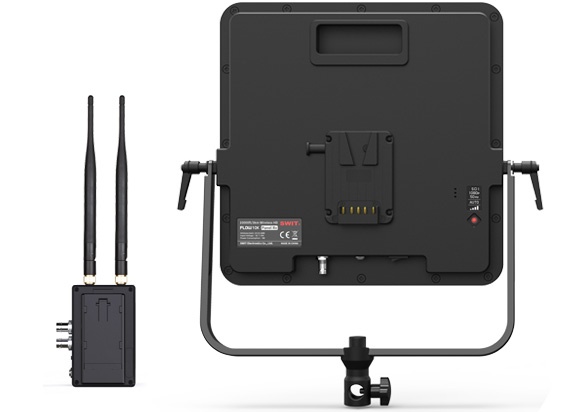

The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.

OLED Display & Channel Switch

5GHz Frequency, DFS Comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

FLOW series Cross-Receiving

The FLOW10K can work together with other FLOW series wireless at different receiving distance. Use FLOW10K Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx, and in 10000ft with FLOW10K Rx.

Reclock & Colour Reproduction

To ensure the quality of black level, signal noise and colour reproduction of the wireless received signal, the FLOW series wireless receiving sup- ports signal re-clock and accurate color reproduction.

Input / Output
Transmitter 3G/HD-SDI input×1, loop output ×1
HDMI 1.3 input×1
Receiver 3G/HD-SDI output×1
Video Formats
SDI 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
HDMI 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Power 125mW
Transmission Distance 10000 feet / 3000 meters (Line of sight)
Input voltage Transmitter DC 7-34V, Receiver DC 7-34V
Power Consumption Transmitter 9W, Receiver 9W
Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm), Receiver 304.7×304.7×42.5 (mm)
Net weight Transmitter 236g, Receiver 1.8kg
Working Temperature 0°C -+40°C

New generation wireless by SWIT unique technology
10000feet(>3000m) FHD Video Transmitter with full DFS-Comply
Much more robust and smooth connection with higher quality picture even in very complex wireless environment, much stronger anti-interference ability
Much longer practical distance, stronger wall-through
No signal loss, accurate color and clock reproduction(algorithm by SWIT)
SWIT patented integration of receiver and panel antenna, better performance and more reliable
Completely quiet, No fan
No delay with ~32ms stable and invisible latency; Much better than Wifi solution
OLED display on both Tx&Rx for visibility and best channel selection
Auto or Manual Pairing (All under your control), both DFS-Comply
SDIx2+HDMI on Tx, SDI on Rx
Chip-level Content Encryption
16-ch Audio, Timecode & Trigger
No-stop Replay for Alexa Mini
Support >7 pairs in one location, 1Tx to N Rx, N>4
Tx&Rx wide range DC in, Tx: NP-F mount
