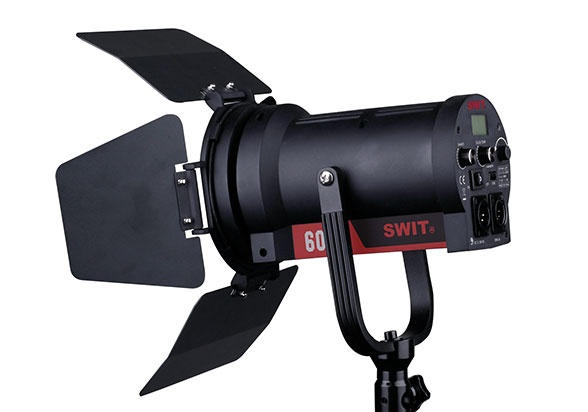

Swit FL-C60D Bi-Colour Portable LED Spot

OVERVIEW
The FL-C60D portable LED spot light is a powerful and versatile lighting solution for interviews and field video productions. With a 60W COB LED light and a lifespan of 50,000 hours, it offers a super bright and long-lasting source of light. The spot/flood angle can be adjusted from 15° to 60° using either an electromotion knob or DMX control. The color temperature can also be continuously adjusted from 2700K to 8000K, allowing for accurate color reveal with a high CRI of 92 and TLCI of 96. The light also features an LCD display and control knobs for quick and easy adjustments, as well as DMX512 control for dimming, color temperature, and spot angle. It can be powered by a 4-pin XLR DC input and also has a USB power output for a wireless DMX receiver.

In addition to its impressive technical features, the FL-C60D also offers practical features such as a silent mode with fan switch-off, overheat detection and protection, and a 4-leaf metal barn door for precise lighting control. It can be mounted on a U-shaped or lighting stand and is compatible with both V-mount and Gold mount plates. With its wide input voltage range of 11-36V and compact design, the FL-C60D is a convenient and reliable lighting option for any production setting.

INCLUDED IN BOX
1x FL-C60D Light
1x AC-DC Power adaptor
1x S-7200S V-mount plate with clamp
1x S-7101 D-tap to 4-pin XLR cable

About The Swit FL-C60D Bi-Colour Portable LED Spot
60W Portable LED Spot Light
Super bright and long-life COB-LED

FL-C60D portable LED spot light adopts Chip-On-Board LEDs of 50,000 hours lifetime, 60W power, bi-color, DMX adjusting focus angle, as the key light of interview light kit or field video productions.

Spot /Flood Adjust

15° – 60° Electromotion/DMX adjust

FL-C60D outputs 15° – 60° beam angle adjusting by Electromotion knob or DMX. The illuminance is as high as 25000Lux @ 1 meter. The following output illuminances at different distances are for reference:

Distance / 15° Spot / 60° Flood
1 meters, 25000Lux, 4000Lux
2 meters, 6250Lux, 1000Lux
3 meters, 2700Lux, 445Lux

Bi-colour temperature

2700K-8000K continuously adjustable
FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output color temperature can be continuously adjustable between 2700K and 8000K.

Accurate Color Reveal
CRI Ra 92; TLCI 96

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while FL-C60D offers the super high CRI at 92 and TLCI at 96, and will not lost the object original colors.

LCD Display and Control

Press knobs to enter Quick Adjusting Mode

FL-C60D has 3 knobs to control dimmer, color temperature and spot angle. The Dimmer and Color Temperature knobs can be pressed down to enter quick adjusting mode, and long pressed down to enter DMX address setting and Fan on/off control.

Knob / Dimmer / Colour Temp
Default, 1% fine adjust, 100K fine adjust
Press, 10% quick adjust, 2700K/3200K/4500K/5600K
Long Press, DMX address, DMX address set Fan ON/OFF switch*

*The dimmer will be limited to Max 50% if the fan is turned off.

DMX512 Channels

Dimmer, Color temperature and Spot angle

FL-C60D adopts standard 5-pin DMX input, supports DMX512 protocol, and adjusts dimmer, color temperature and spot angle by DMX controller.

FL-C60D occupies 3 DMX addresses:
n = Dimmer 0-100%
n+1 = Color temperature 2700-8000K
n+2 = Spot angle 15°-60°
Long press the Dimmer knob for 2 seconds, to enter DMX address setting.

USB Power Output

To power the Wireless DMX Receiver

FL-C60D provides a 5V USB power output socket, to power the SWIT Pocket Wireless DMX Receiver.

Refer to: LA-WR8 Pocket Wireless DMX controller

11-36V Wide Input Voltage

4-pin XLR DC input, provide V/Gold mount plate

FL-C60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and provides with V-mount or Gold mount plate adaptor to fix onto light stand, and power the light by D-tap to 4-pin XLR DC cable..

Beam angle 15°- 60°
Max illuminance 1m: Spot 25000Lux / Flood 4000Lux
2m: Spot 6250Lux / Flood 1000Lux
3m: Spot 2700Lux / Flood 445Lux
Colour Temperature 2700K～8000K
CRI 92
TLCI 96
USB out 600mA
Power Approx. 60W
Working voltage DC11V～36V
Dimension 111×120×235mm
Weight 2.1kg

60W super bright COB LED light
15°-60° Spot/Flood adjustable
2700K-8000K continuously adjustable
0-100% flick-free dimming
Super high CRI Ra≥92, TLCI≥96
DMX512 controlled color, dimmer, angle
LCD display color, dimmer and DMX
Silent mode by fans switching off
LED overheat detection and protection
4-leaf metal barn doors
U-shape and lighting stand mount
