OVERVIEW
The CL-M100D is a compact and powerful 100W bi-colour LED panel light designed for use in broadcast studios, live entertainment, and film applications. It features 576pcs of surface mounted LEDs, providing high uniformity of illuminance, a wider beam angle, and a longer lifespan. The light output is 3400Lux at 1 meter distance, with smooth and non-flickering 0-100% dimming. The panel also offers a wide colour temperature range of 2700K-6500K, with a high colour rendering index of CRI 98 and TLCI 99. The control panel displays important information such as dimmer percentage, colour temperature, and DMX address, and can be powered by AC or DC input.
The CL-M100D is a fanless light, ensuring a silent production environment, and its compact size makes it ideal for low ceiling setups. It also features 4-leaf metal barn doors and a yoke bracket for easy positioning. The light can be controlled via DMX512, with a 5-pin XLR DMX in and out, or through group interactive control mode. It also offers PowerCON TRUE1 AC in and out connectors for easy installation and the option to loop multiple lights together. With the ability to be powered by batteries, the CL-M100D offers versatility and convenience for any production setting.
INCLUDED IN BOX
1x Studio SMD LED Light
2x Safety rope
1x PowerCON TRUE1 AC cable
About The Swit CL-M100D Studio Light
Mini Size 100W LED Panel
CL-M100D is an 100W Bi-colour SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low celling space setup.
576pcs Surface Mounted LEDs
CL-M100D adopts 576pcs SMD LEDs, featured:
(1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher colour rendering index;
(4) Softer and Brighter;
(5) longer life time,an ideal light source for Broadcast studios, green keyer, live streaming etc.
3400 Lux @ 1 metre
CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
No Fan, No Noise
The large size fin consender inside CL-M100D ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.
2700K-6500K Continuously Adjustment
CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any colour temperature from 2700K to 6500K.
CRI 98; TLCI 99CL-M100D adopts high end surface mounted LEDs with super high Colour Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colours exactly under the light.
Control Info Display
The rear LCD screen can display dimmer percentage, colour temperature, DMX address, Group channel (CH), and power indicators.Long press colour temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.
5-pin DMX512 IN & OUT
CL-M100D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.The DMX address n= dimmer, n+1=colour temp
PowerCON TRUE1 AC IN & OUT
CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.
11-17V DC Input
With optional battery plate clamps and D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 4-pin XLR DC in socket.
LED 576pcs SMD LEDs
Illuminance 3400Lux @ 1m
Beam angle 62° half peak
Colour Temperature 2700K ～ 6500K
CRI 98
TLCI 99
SSI (D55) 73
Power Max 130W, light output 100W
AC input & output PowerCON TRUE1 AC 100-240V 50/60Hz
DC input 4-pin XLR DC11V～17V
Dimensions 275×173×130mm
Lighting area 245×146mm
Weight 5.6kg with metal barndoor
576pcs ultra bright long-life LEDs
SMD Surface mounted LED technology
62° half peak wide beam angle
2700K-6500K continuously adjustable
100W power, 3400Lux @ 1meter
No fan, no noise
0-100% flick-free dimming
Colour rendering CRI 98, TLCI 99, SSI(D55) 73
DMX512 controlled color and dimmer
LCD display color and dimmer value
PowerCON TRUE1 AC in and loop out
4-pin XLR DC 11-17V input

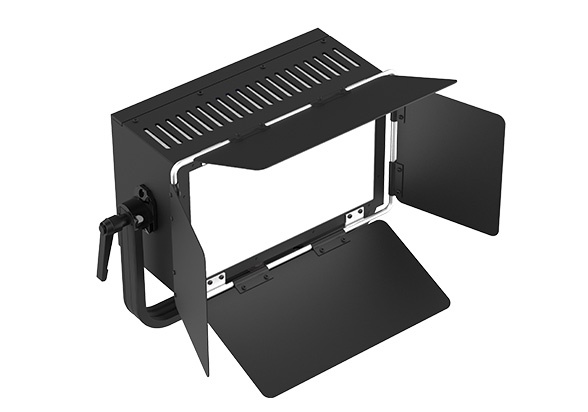

4-leaf metal barn doors and Yoke bracket
