Swit CL-100 Daylight LED Panel Light

OVERVIEW
The CL-100 is a 100W 2:1 SMD LED panel light with a 5600K daylight colour temperature and a half-peak 65° wide beam angle. It has 720pcs long life SMD LEDs and can reach a brightness of 3300Lux at 1 meter. The light also features 0-100% flick-free dimming, high CRI and TLCI ratings of 97 and 99 respectively, and DMX512 controlled dimmer. It has a USB power out for wireless DMX receiver and a LCD display for colour, dimmer, and DMX address. The light also includes a PowerCON TRUE1 AC in and loop out, 4-leaf metal barn doors and Yoke bracket, and an optional 40° honeycomb (LA-G100).

The CL-100 is designed for use in broadcast studios, mobile studios, live streaming studios, and other installation applications. Its wider beam angle and accurate colour temperature make it an ideal light source for these environments. It also offers DMX control, high CRI/TLCI ratings, and accurate colour performance. The light can be powered through a 5-pin XLR DMX512 in and out, with a 5V USB-A socket for wireless DMX receiver. It also has PowerCON True 1 AC in and loop out sockets for convenient studio installation. An optional 40° honeycomb is available for purchase, which can be used with the included 4-leaf metal barn doors and Yoke bracket.

SUMMARY
Colour temperature: 5600K
INCLUDED IN BOX
1x Swit CL-100 Daylight LED Light Panel
1x Safety rope
1x PowerCON TRUE1 AC cable

About The Swit CL-100 Daylight LED Panel Light
100W Studio Panel LED Light
Brighter, softer, wider beam angle

CL-100 is a 100W 2:1 SMD LED panel light of daylight colour temperature, with DMX control, high CRI/TLCI and accurate colour performance, for broadcast studio, mobile studio, live streaming studio install applications.

3300 Lux @ 1 meter

CL-100 has 720pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc.

Wider Beam Angle

The CL-100 SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio.

5600K Daylight Colour Temp

CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs, outputs accruate 5600K colour temperature for daylight studio application.

Accurate Colour Render
CRI 97; TLCI 99

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colours.

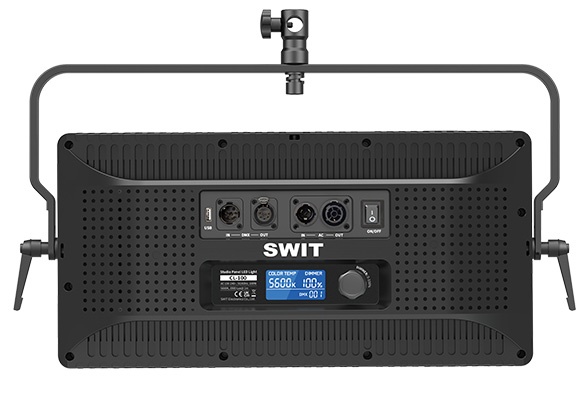

DMX, AC IN & LOOP

CL-100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100 lights under 220V AC voltage, and 13x CL-100 lights under 110V voltage.

Optional Honeycomb

CL-100 provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors.
Honeycomb Part number: LA-G100

LED 720pcs SMD LEDs
Illuminance 3300Lux @ 1m
Beam angle 65° half peak
Colour Temperature 5600K
CRI 97
TLCI 99
Power 100W
USB 5V USB-A power out
DMX DMX512, 5pin XLR IN & OUT
AC Power PowerCON TRUE1 AC 100-240V 50/60Hz input & output
Dimension 480×240×87mm
Lighting area 435×195mm
weight 3.2kg

720pcs Surface mounted LEDs
2:1 size, 100W, 3300Lux @ 1meter
Half-peak 65° wide beam angle
5600K daylight colour temperature
0-100% flick-free dimming
CRI Ra 97, TLCI 99, SSI (D55) 75
DMX512 controlled dimmer
USB power out for wireless DMX receiver
LCD display colour, dimmer and DMX addr
PowerCON TRUE1 AC in and loop out

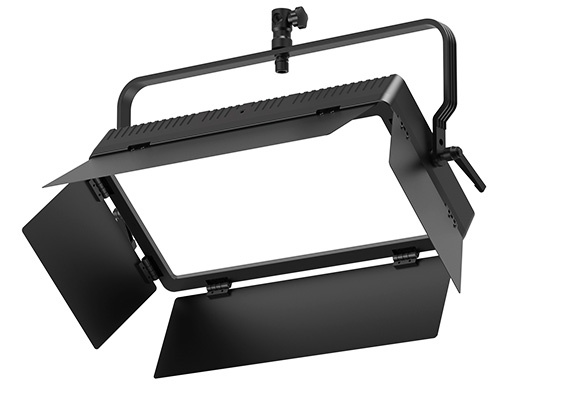

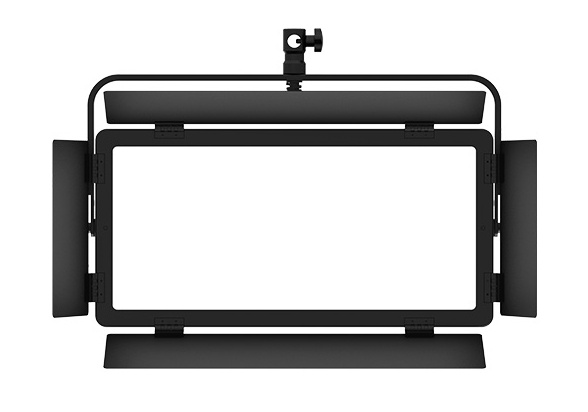

4-leaf metal barn doors and Yoke bracket
Optional 40° honeycomb (LA-G100)
