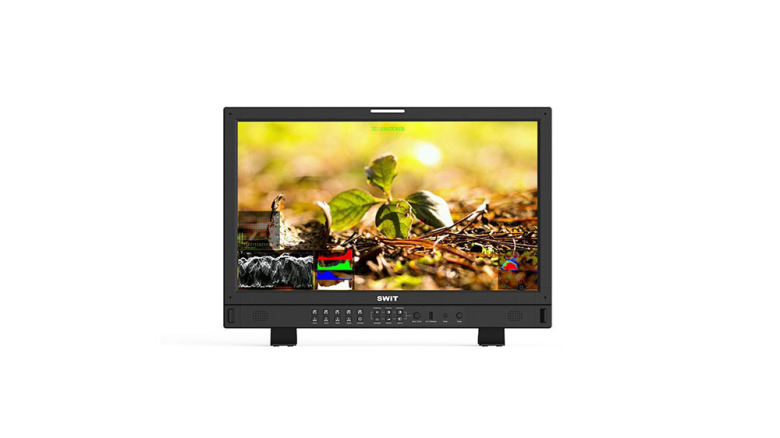

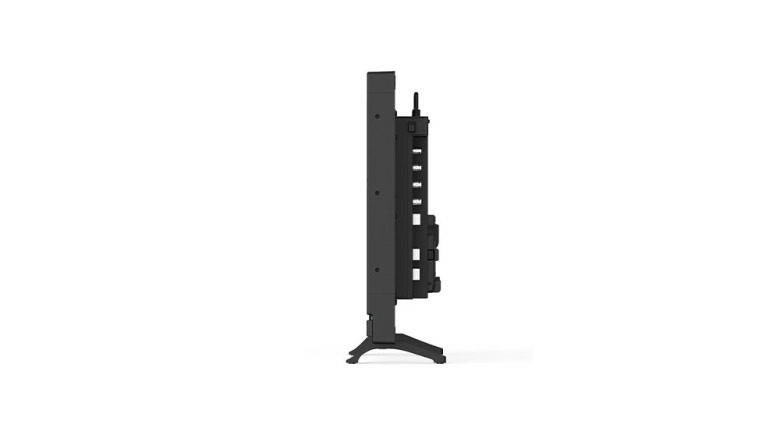

Swit BM-U245HDR 23.8in Studio Monitor

OVERVIEW
The BM-U245HDR is a high-quality monitor with a 23.8-inch LCD panel and a resolution of 3840×2160. It features a 1000nits high bright LED backlight and supports HLG, PQ, and S-log3 HDR formats. It has 4-in 4-out 12GSDI ports and is 8K input ready. It also has HDMI2.0 input and supports 12GSDI and ST2110 IP via optional SFP Fiber input. The monitor has a built-in 3DLUT auto self-calibration feature and supports audio/video 0 latency for lip-sync. It also has built-in multi camera Delog LUTs and allows users to upload their own 3DLUTs via USB. The monitor has various video analysis patterns like waveform, vector, and histogram, as well as audio patterns like audio meters and surround sound patterns. It also has an eye pattern to check the quality of input video transmission via SDI cable. Users can control the monitor remotely through a webserver using their computer’s web browser.

The BM-U245HDR has a 23.8-inch 10-bit LCD panel with a UHD 3840×2160 resolution and a 1000nits LED backlight. It has a wide color gamut with 91.9% DCI-P3 and 89% Rec2020 coverage. The monitor supports various input sources including 12GSDI, HDMI2.0, and 12GSDI via SFP, as well as quad link 4K and 8K inputs. It also has a multi-view feature that allows users to display different HDR/SDR and color gamut simultaneously. The monitor has a native 1000nits high bright backlight and supports HLG, Dolby Vision PQ, and SONY S-Log3 HDR monitoring. It also has a payload ID auto setting feature that automatically sets HDR/SDR EOTFs, color gamut, input range, color space, and color depth according to the payload ID info. The monitor supports 3DLUT auto self-calibration using X-rite i1 or Jeti Specbos 1211 probes, which can be connected directly to the monitor’s USB port. It also has audio/video zero latency mode for lip-sync monitoring and built-in multi camera logs for HDR/SDR conversion. The monitor can be controlled remotely through a webserver using a computer’s web browser and supports USB firmware upgrade.

SUMMARY
Screen Size: 23.8 Inch
Resolution: 4096 x 2160
Inputs:
BNC
HDMI 2.0
RJ-45
RS485
SFP
Outputs:
3.5mm
BNC
RS485
NITs: 1000
Power Supply: AC
INCLUDED IN BOX
1x 23.8 inch 4K/8K 12GSDI HDR Studio Monitor [BM-U245HDR]

About The Swit BM-U245HDR 23.8in Studio Monitor
23.8-inch 1000nits 4K
UHD panel, 89% REC2020

BM-U245HDR adopts a 23.8-inch 10-bit LCDpanel, UHD 3840×2160 resolution, 1000nits LEDbacklight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178° / V178°.

Multi 4K/8K Interfaces

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)

* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.

Display Modes

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, colour gamut selection for each input.

Single link 4K inputs – 12GSDI, HDMI2.0, SFP
Quad link 4K inputs – 4x 3GSDI (SQD or 2SI)
Quad link 8K inputs – 4x 12GSDI (SQD or 2SI)
Mixed inputs Multiview – 4 independent video inputs of 12G/6G/3G/HD-SDI or HDMI mixed

HLG/PQ/S-Log3 HDR

BM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring.

Payload ID Auto Setting

Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Colour Gamut, Input range, Colour space and Colour depth according to the Payload ID info.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and colour gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files

Multiple Video Analysis Patterns

Waveform Y/Cb/Cr/R/G/B with Nits mark
Vector scope
Red/Blue Peaking focus assist
R/G/B/Mono mode
Single line waveform
R/G/B/Y Histogram
Over exposure zebra stripes
False colour

Audio Patterns

Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.Moreover, BM-U monitors support Lissajous and 5.1+2 surround sound patterns.

Eye Pattern

Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.

Webserver IP Remote Control

BM-U245HDR supports webserver remote control by Ethernet LAN connection.Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

LCD Performance
Size 23.8 inches
Display area 527.04×296.46mm
Resolution 3840×2160
Aspect ratio 16:09
Brightness 1000nits
Contrast 1000:01:00
Color depth 1.073G colors, 10-bit
Signal process 18-bit
Viewing angle 178°(H) /178°(V)
Input
BNC ×4 12G/6G/3G/HD/SD-SDI input
HDMI ×1 HDMI 2.0 input
SFP ×1 Optical Fiber input (By optional SFP adaptor)
RS485 ×1 TSL 3.1/4.0 UMD input
RS485 ×1 GPI (Tally) input
RJ45 ×1 1000M Ethernet input for Webserver IP control
Output
BNC ×4 12G/6G/3G/HD/SD-SDI loop output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
SDI 1/2/3/4 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each channel) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 8K (Each channel) 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage AC 100-240V, 50/60Hz, DC 12-17V
Power consumption 120W
Working temperature 0°C～+50°C
Working humidity 10%～90%
Storage temperature -15°C～+60°C
Storage humidity 10%～90%
Dimensions 593×404.5×92mm
Net weight (main body) 10kg

23.8-inch LCD Panel, 3840×2160 resolution
1000nits high bright LED backlight
HLG/PQ/S-log3 HDR, Payload ID auto setting
12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
12GSDI via SFP Fiber input (Optional)
ST2110 IP via SFP Fiber input (Optional)
SFP Fiber 12G input converted to 12GSDI out
3DLUT Auto Self-calibration without PC
Audio/Video 0 latency for lip-sync
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Vector / Histogram
Focus assist / False colour / Zebra
16-ch audio meters / Lissajous
IP webserver remote control
TSL UMD and text TALLY display
USB firmware upgrade
