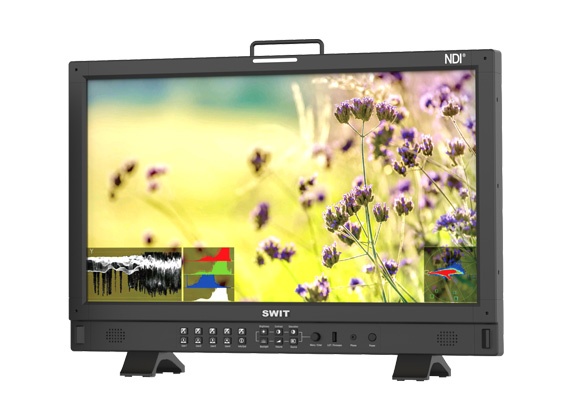

Swit BM-245-NDI 23.8 Inch NDI Monitor

2,206.00

BM-245-NDI

Compare

OVERVIEW
The BM-245-NDI monitor features a 23.8-inch 1920×1080 QLED panel with 100% DCI-P3 coverage, making it ideal for professional NDI® broadcast productions. It also has a VICO 1.97 A-class Eye Protecting LCD, which reduces visual fatigue and protects the eyes during long editing or production sessions. The monitor supports high bandwidth 4K NDI® monitoring, 3GSDI and HDMI inputs, and NDI® decode to 3GSDI output. It also has the ability to display NDI®, SDI, and HDMI sources simultaneously with its PBP or PIP display modes. The monitor supports NDI® Discover Server to pull sources from different IP segments and has a built-in 3DLUT auto self-calibration feature.

In addition to its advanced features, the BM-245-NDI monitor also offers various video and audio analysis patterns such as waveform, vector scope, focus assist, and audio meters. It can be controlled remotely via an IP webserver and has multiple power options, including AC, DC, and battery plate. With its impressive specifications and features, the BM-245-NDI monitor is a top choice for professional NDI® broadcast productions.

SUMMARY
Screen Size: 23.8 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
HDMI 2.0
RJ-45
RS485
Outputs:
3.5mm
3G
BNC
RS485
NITs: 400
INCLUDED IN BOX
1x 23.8-inch Professional NDI® Monitor

About The Swit BM-245-NDI 23.8 Inch NDI Monitor
23.8-inch QLED WCG Panel

FHD, 100% DCI-P3 Coverage

BM-245-NDI monitor adopts a 23.8-inch 1920×1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.

NDI®, SDI and HDMI

BM-245-NDI monitor provides multiple inputs including:

– High bandwidth NDI® up to 4K;
– 3GSDI input×2; Loop out×1
– NDI® decode to 3GSDI out ×1
– HDMI 2.0 input ×1

NDI® is a registered trademark of Vizrt Group.

NDI® Sources Selection

All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.

PBP / PIP Display Mode

You can select any 2 sources from NDI®, SDI or HDMI to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.

HDR/SDR EOTFs and Colour Gamut Selection

BM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

VICO 1.97 Eye Protect

BM-245-NDI QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.

The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.

Multiple Video Analysis Patterns

– Waveform Y/Cb/Cr/R/G/B with Nits mark
– Vector scope
– Red/Blue Peaking focus assist
– R/G/B/Mono mode
– Single line waveform
– R/G/B/Y Histogram
– Over exposure zebra stripes
– False Colour

Audio Patterns

BM-245-NDI monitor will de-embed2-ch NDI audios;8-ch HDMI audios;16-ch SDI audios,display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Webserver IP Remote Control

BM-245-NDI supports webserver remote control by Ethernet LAN connection.Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Power Supply

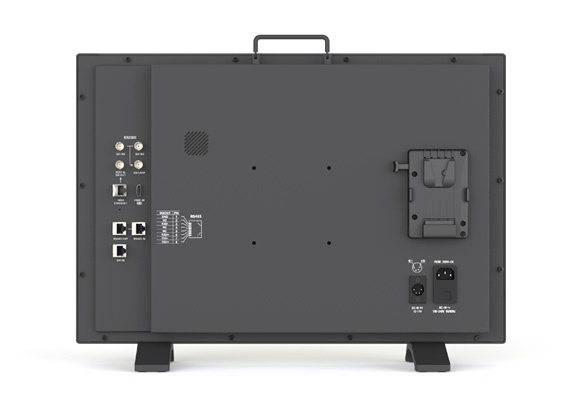

BM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)

LCD Performance
Size 23.8 inches
Display area 527.04×296.46mm
Resolution 1920×1080
Aspect ratio 16:9
Brightness 400nits
Contrast 1000:1
Colour Gamut 100% DCI-P3
Colour depth 10bit (8+2FRC)
Eye Protect VICO 1.97
Viewing angle 178°(H) /178°(V)
Input
RJ45 ×1 High bandwidth 4K NDI®
BNC ×2 3G/HD/SD-SDI input
HDMI ×1 HDMI 2.0 input
RS485 ×1 TSL 3.1/4.0 UMD input
RS485 ×1 GPI (Tally) input
Output
BNC ×1 3G/HD/SD-SDI loop output
BNC×1 NDI® decoded to SDI output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
NDI® 4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
NDI® decoded to SDI out 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
SDI IN1/2 and LOOP 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50)
HDMI IN 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption 45W
Working temperature 0°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 580.9×392.3×73.6mm
Net weight (main body) 6.7kg

23.8-inch 1920×1080 QLED Panel
100% DCI-P3 wide colour gamut coverage
VICO 1.97 A-class Eye Protecting LCD
High bandwidth 4K NDI® monitoring
3GSDI 2-in 1-loop, HDMI2.0 input
NDI® decode to 3GSDI output
NDI®/SDI/HDMI PBP or PIP view
Auto detect and quick select NDI® sources
Support NDI® Discover Server
Support NDI® Low bandwidth mode
Rec 709 / DCI-P3 / Rec 2020 colour gamut selection
3DLUT Auto Self-calibration without PC
Built-in Delog LUTs and User LUTs upload by USB
Waveform / Vector / Histogram
Focus assist / False color / Zebra
16-ch audio meters / Lissajous pattern
IP webserver remote control
AC, DC and battery plate power
