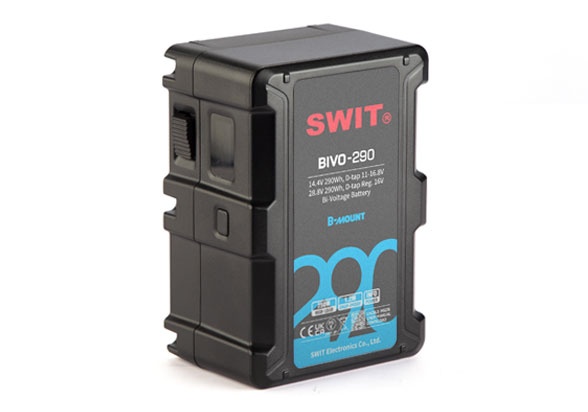

Swit BIVO-290 B-Mount Battery

OVERVIEW
The BIVO-290 is a powerful 14.4V/28.8V Bi-voltage B-mount battery designed for use with ARRI cameras and other compatible devices. It features a high capacity of 290Wh and can provide a constant high load of 250W. The battery also has 2 D-tap power outputs, an OLED power info display, and a built-in LED torch. It is designed to withstand drops of up to 1.2 meters and has multiple circuit protections.

The BIVO-290 is part of the BIVO series family, which includes batteries of different sizes and capacities to suit different needs. It can be charged quickly with 100W super fast charging and has a 100W fast charging output of 33.6V. The battery also has an OLED screen to display important information such as remaining running time and protection warnings. With its versatile features and durability, the BIVO-290 is a reliable choice for filmmakers.

SUMMARY
Battery Capacity: 290Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: B-Mount
Voltage:
14.4v
28.8v
INCLUDED IN BOX
1x Swit 290Wh Bi-voltage B-mount Battery Pack

About The Swit BIVO-290 B-Mount Battery
14.4V/28.8V Bi-Voltage B-mount Battery

BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V (21.6-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears.
The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

290Wh Capacity, 250W Load

BIVO-290 battery has 290Wh large capacity, run more than 3 hours on ARRI ALEXA 35 camera.
The battery provides at least 250W constant high load for cine cameras and devices.

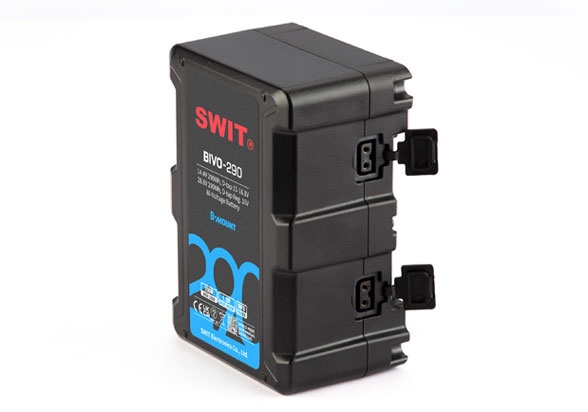

2x D-tap Power Output

BIVO-290 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage, the D-tap output regulated 16V, to power all kinds of camera-top devices.

BIVO Series Family

The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

OLED Power Info Display

BIVO-290 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

100W Super Fast Charging

You can charge 4x BIVO-290 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x BIVO-290 batteries.

LED Torch

You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.

1.2 meters Drop-off Proof

BIVO-290 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

Voltage 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
Capacity 290Wh
Constant load (28.8V) 250W, 10A
(14.4V) 250W, 20A
Charging 33.6V 100W fast charging
Mount Type B-mount
D-tap ×2 14.4V status: 10.8-16.8V out, 250W load
28.8V status: 16V regulated out, 50W load
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 1.52kg
Dimensions 144×100×70mm

14.4V/28.8V Bi-voltage B-mount
290Wh high capacity
250W constant high load
33.6V 100W fast charging
D-tap 11-16.8V output ×2
OLED power info display
Built-in LED torch
Strong 1.2m drop off proof
Multiple circuit protections
