Swit BIVO-160 B-Mount Battery

OVERVIEW
The BIVO-160 is a versatile and powerful battery, with a bi-voltage B-mount design that can output both 14.4V and 28.8V. It is compatible with ARRI cameras and other regular voltage cameras and cinegears, and has multiple circuit protections to ensure safe and reliable use.

With a high capacity of 160Wh and a constant high load of 200W, the BIVO-160 can provide up to 2 hours of power for ARRI ALEXA 35 cameras. It also features 2 D-tap power outputs, an OLED power display, and a built-in LED torch for added convenience. The BIVO series also offers a range of sizes and capacities for different filming needs, and is drop-off proof up to 1.2 meters.

SUMMARY
Battery Capacity: 160Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: B-Mount
Voltage:
14.4v
28.8v
INCLUDED IN BOX
1x Swit 160Wh Bi-voltage B-mount Battery Pack

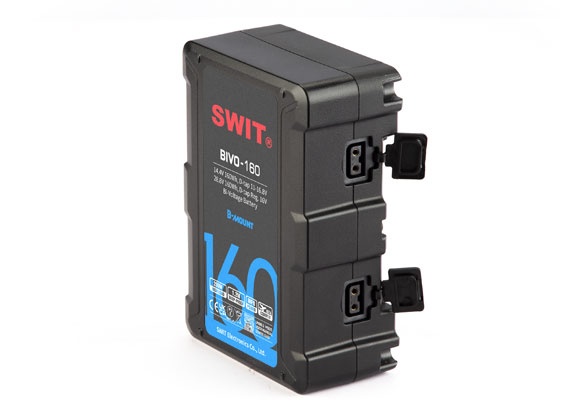

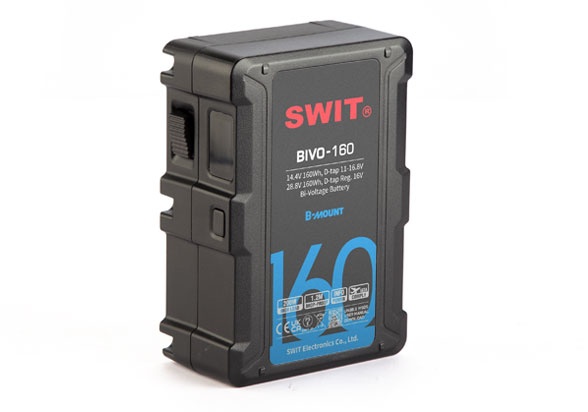

About The Swit BIVO-160 B-Mount Battery
14.4V/28.8V Bi-Voltage B-mount Battery

BIVO-160 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

160Wh Capacity, 200W Load

BIVO-160 battery has 160Wh large capacity, run nearly 2 hours on ARRI ALEXA 35 camera, and each passenger is allowed to carry 2pcs to board airplane. The battery provides at least 200W constant high load for cine cameras and devices.

2x D-tap Power Output

BIVO-160 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,the D-tap output regulated 16V, to power all kinds of camera-top devices.

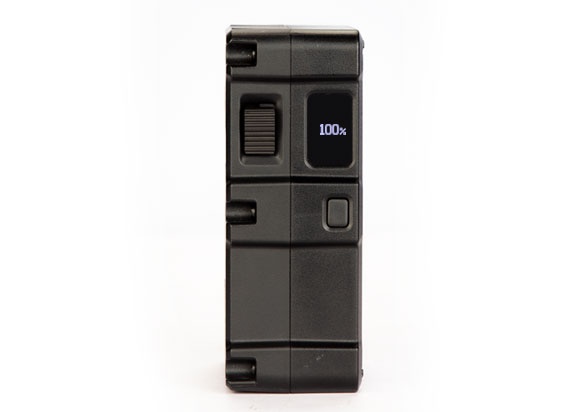

OLED Power Info Display

BIVO-160 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

100W Super Fast Charging

You can charge 4x BIVO-160 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 2 hours 40 minutes to fully charge 4x BIVO-160 batteries.

BIVO Series Family

The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

LED Torch

You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds

1.2 meters Drop-off Proof

BIVO-160 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

Voltage 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
Capacity 160Wh
Constant load (28.8V) 200W, 8A;
(14.4V) 200W, 16A
Charging 33.6V 100W fast charging
Mount Type B-mount
D-tap ×2 14.4V status: 10.8-16.8V out, 200W load
28.8V status: 16V regulated out, 50W load
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 1.1kg
Dimensions 144×100×54mm

14.4V/28.8V Bi-voltage B-mount
160Wh high capacity
200W constant high load
33.6V 100W fast charging
D-tap 11-16.8V output ×2
OLED power info display
Built-in LED torch
Strong 1.2m drop off proof
Multiple circuit protections
