Swit B-Mount Hotswap Plate With SDI

OVERVIEW
The KA-R31B is a B-mount hot-swap plate specifically designed for ARRI Alexa MINI and MINI LF cameras. It features an 8-pin LEMO output to connect to the camera, and contains 28V, 32Wh 3Ah battery cells inside. With a constant high load of 200W, the plate can provide at least 2 minutes of runtime. It also has a 120-second countdown display, 2x D-tap regulated 14V outputs, 1x 2-pin LEMO regulated 14V output, and a USB 5V/2A power output. The plate can be hot-swapped with a power station through its 8-pin input, and has multiple circuit protections to ensure safety.

The KA-R31B is also compatible with the original MINI/MINI LF support system by connecting with the RAB-1 Clamp 2 (K2.0023406). It does not include the clamp, however. The plate can handle a 200W load for at least 2 minutes, even after 1000 cycle times. It also has a 120-second countdown display when changing batteries, and the new battery will charge the plate as well. In addition to power distribution, the KA-R31B also supports 3GSDI 1 to 2 distribution with an SDI isolater to protect the camera’s SDI port from damage by other devices.

SUMMARY
Battery Mount: B Mount
INCLUDED IN BOX
B-mount Hotswap Plate for MINI – MINI LF
15mm Rod Adapter

About The Swit B-Mount Hotswap Plate With SDI

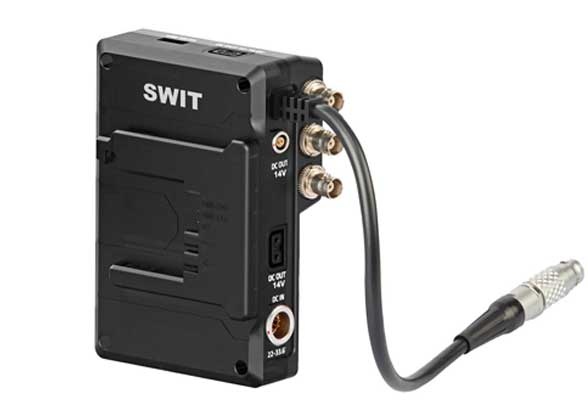

B-mount Hot-swap Plate

KA-R31B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install with SDI 1 in 2 out distribution and isolater, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

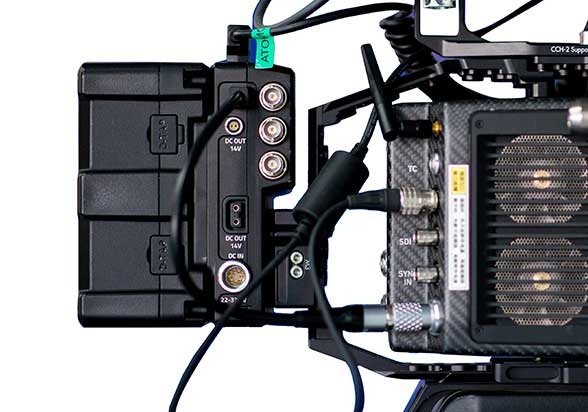

ALEXA MINI/MINI LF install

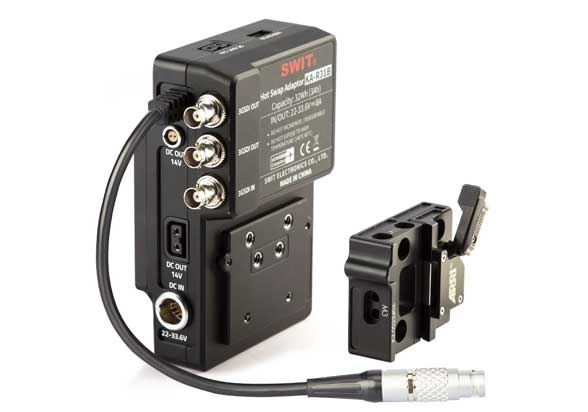

KA-R31B matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406).
* KA-R31B doesn’ t include the K2.0023406 clamp.

2mins at 200W load

KA-R31B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery.

120s Countdown Display

KA-R31B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0.The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time.

Power and SDI Distribution

KA-R31B provides:

1x 8-pin 28V to ALEXA MINI/MINILF
2x D-tap 14V Reg. output
1x 2-pin LEMO 14V Reg. output
1x USB-A 5V/2A output
1x 8-pin 22-33.6V input (For power station hotswap)

And supports 3GSDI 1 to 2 distribution, with SDI isolater inside, to prevent other camera top SDI devices damage the camera SDI port.

Inner battery voltage 28V regulated
Inner battery capacity 32Wh/3Ah
Power load 200W constant high load
8-pin LEMO output Attach battery: 22-33.6V to camera
Remove battery: 28V / 200W to camera
D-tap output x2 14V regulated, 70W
2-pin LEMO output 14V regulated, 70W
USB-A output 5V, 10W/2A
8-pin LEMO input 22-33.6V
BNC x1 3G/HD/SD-SDI input
BNC x2 3G/HD/SD-SDI distribution output
Dimensions 93×143×54.4mm
Net weight 818.5g

Dedicated for Alexa MINI / MINI LF install
B-mount battery attach
8-pin LEMO output to camera
28V, 32Wh 3Ah battery cells inside
200W constant high load
At least 2 minutes run time
120 seconds countdown display
2x D-tap regulated 14V output
1x 2-pin LEMO regulated 14V output
USB 5V/2A x1 power output
22-33.6V 8-pin input for power station hotswap
3GSDI 1-2 distribution with SDI isolater
Aluminium CNC unibody housing
Multiple circuit protections
