Swit B-Mount Hotswap Plate For SXT/LF/65

OVERVIEW
The KA-A30B is a B-mount hot-swap plate specifically designed for ARRI Alexa SXT, LF, and 65 installations. It allows for easy battery changes without having to turn off the camera, making it a convenient and efficient option for users. The plate is equipped with 28.8V B-mount battery, providing power to the camera at 28.8V (22-33.6V) through the rear contact pins. Even after 1000 cycles, the plate can still provide a 2-minute hot swap time with a 200W constant high load. Additionally, the KA-A30B features a 120-second countdown display, making it easy to keep track of when a battery change is needed. The plate also has multiple circuit protections for added safety.

The KA-A30B offers various power interfaces, including 2x D-tap 14V regulated output, 1x 2-pin LEMO 14V regulated output, and 1x USB-A 5V/2A output. It also has a 8-pin 22-33.6V input for power station hotswap. The plate is housed in a durable and lightweight aluminium CNC unibody, ensuring its longevity and portability. With its impressive features and capabilities, the KA-A30B is a reliable and efficient choice for powering your ARRI Alexa SXT, LF, or 65 camera.

SUMMARY
Battery Mount: B Mount
INCLUDED IN BOX
B-mount Hotswap Plate

About The Swit B-Mount Hotswap Plate For SXT/LF/65

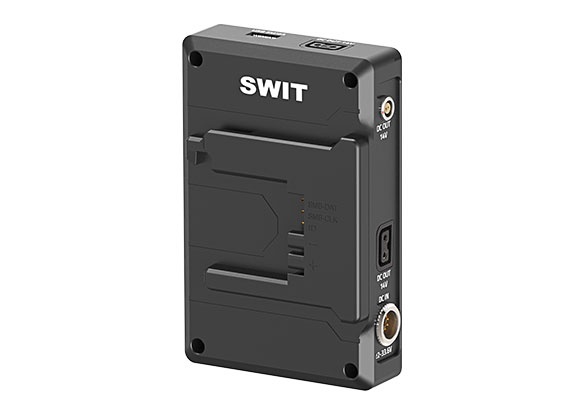

B-mount Hot-swap Plate

KA-A30B is a B-mount hot-swap plate for ARRI Alexa SXT / LF / 65 install. You don’ t need to switch off the camera when changing battery.

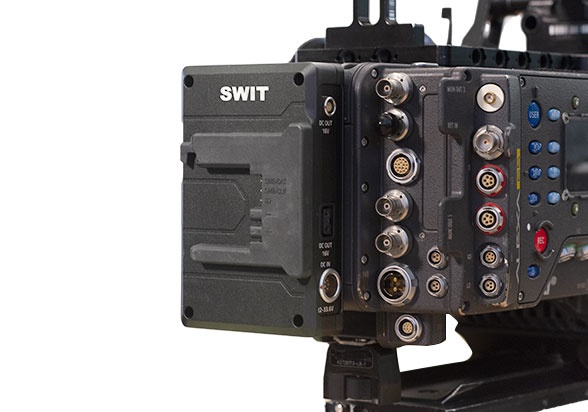

28.8V Power for ALEXA

Working with 28.8V B-mount battery, the KA-A30B power ALEXA SXT/LF/65 cameras at 28.8V (22-33.6V) by the rear contact pins, and when remove B-mount battery, the KA-A30B output reg. 28V to camera for hotswapping.

2mins at 200W load

KA-A30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery.

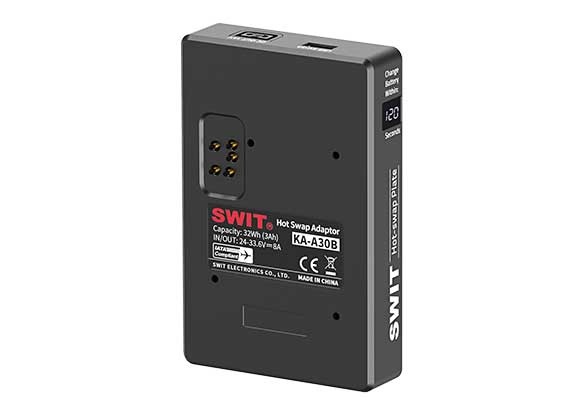

120s Countdown Display

KA-A30B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0.The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time.

Power Interfaces

KA-A30B provides:

2x D-tap 14V Reg. output
1x 2-pin LEMO 14V Reg. output
1x USB-A 5V/2A output
1x 8-pin 22-33.6V input (For power station hotswap)

Inner battery voltage 28V
Inner battery capacity 32Wh/3Ah
Power load 200W constant high load
5 pins DC connector Attach battery: 22-33.6V to camera
Remove battery: 28V / 200W to camera
D-tap output x2 14V Regulated, 70W
2-pin LEMO output 14V Regulated, 70W
USB-A output 5V, 10W/2A
8-pin LEMO input 22-33.6V
Dimensions 93×143×37.4mm
Net weight 638g

Dedicated for Alexa SXT/LF/65 install
B-mount battery attach
28V, 32Wh 3Ah battery cells inside
200W constant high load
At least 2 minutes run time
120 seconds countdown display
2x D-tap regulated 14V output
1x 2-pin LEMO regulated 14V output
USB 5V/2A x1 power output
22-33.6V 8-pin input for power station hotswap
Aluminium CNC unibody housing
Multiple circuit protections
