OVERVIEW

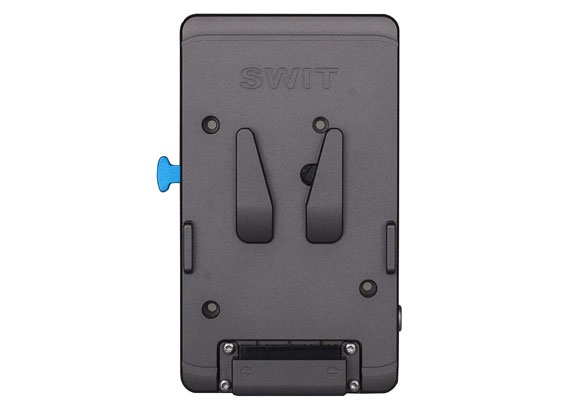

The KA-A20S V-mount plate is specifically designed for use with ARRI ALEXA LF, ALEXA 65, ALEXA SXT, and AMIRA cameras. It features an aluminium CNC unibody housing, ensuring a robust and reliable connection to the camera. The plate is capable of outputting 22-33.6V when used with the PB-H290S bi-voltage battery, which is able to automatically switch to the appropriate voltage for these cameras.
In addition to the high voltage output, the KA-A20S plate also includes multiple circuit protections to ensure safe and reliable operation. It features unique lantern type pins for the battery contact, providing a wider contact surface and support for up to 16A current without overheating. The camera contact pins are made of copper and use a strong spring for full contact, ensuring a reliable 10A current and preventing overheating. The plate also offers multiple DC output options, including 2x D-tap, 1x 2-pin LEMO, and 1x 5V/2A USB, making it a versatile and convenient power solution for ALEXA cameras.
SUMMARY
Battery Mount: V Mount
INCLUDED IN BOX
1x Swit V-Mount Plate (KA-A20S)
About The Swit ALEXA V-Mount Plate
ALEXA Dedicated V-mount Plate
Aluminium CNC unibody housing
The V-mount plate KA-A20S is designed for ARRI ALEXA LF, ALEXA 65, ALEXA SXT and AMIRA, with Aluminium CNC unibody housing, perfectly match with ALEXA cameras, robust and reliable.
High Voltage to ALEXA
Match with PB-H290S to output 22-33.6V
SWIT Bi-voltage battery PB-H290S can recognise the KA-A20S plate and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.
Use other batteries, the KA-A20S plate will not change voltage, and directly power the camera.
High Load Reliable Pins

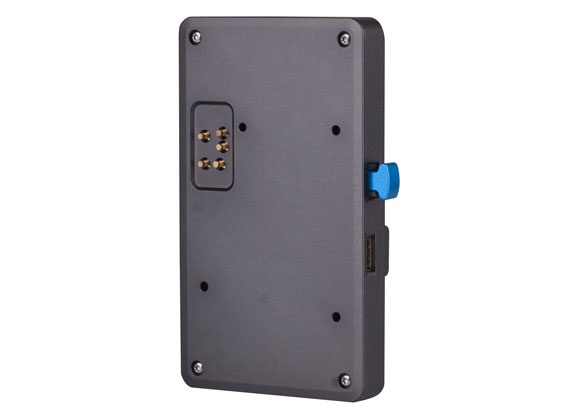

Battery Contact Pins: Unique lantern type pins, wider contact surface, support Max 16A current without overheating; Camera Contact Pins: Copper rod direct conducting (instead of spring conducting), and the strong spring makes fully contact with camera pins, ensure 10A reliable current and prevent overheat.
Multi DC Sockets
D-tap / LEMO / USB
KA-A20S plate provides 2x D-tap, 1x 2-pin LEMO and 1x 5V/2A USB output. Under 22-33.6V power, the D-tap and LEMO outputs constant 16V, Max 6A; Under 11-16.8V power, the D-tap and LEMO outputs original battery power.
Compatible cameras ARRI ALEXA LF/65/SXT, AMIRA
Compatible batteries 14.4V standard V-mount battery (SXT, AMIRA)
PB-H290S 14.4V/28.8V Bi-Voltage Battery (LF, 65, SXT, AMIRA)
DC output D-tap x2 (Constant 16V/4A under high voltage)
2-pin LEMO x1 (Constant 16V, Max 6A under high voltage)
USB 5V/2A x1
Weight 350g
Dimensions 142 x 82 x 17 mm
Standard V-mount plate
For ALEXA LF/65/SXT and AMIRA
Output 22-33.6V with PB-H290S
Output original voltage with other batteries
Aluminium CNC unibody housing
High load reliable pins
2xD-tap, 1x LEMO, 1x USB output
Multiple circuit protections
