OVERVIEW
The OMNI series is a range of mini-sized pocket V-mount camera batteries that are designed to be easily portable and convenient. With a capacity of 99Wh/6.9Ah, these batteries are fly-friendly and can support a constant high load of 150W/12A. They feature multiple DC interfaces, including a D-tap output and charging input, a barrel DC regulated 8.4V output, and a USB-A 5V/2A output. The USB-C input and output can provide up to 48W of power, making it suitable for powering laptops. The LED screen on the battery displays the remaining runtime, and it also has BMS multiple circuit protections to ensure safety.
The OMNI series is designed to meet all expectations, with its sleek design and versatile power capabilities. It is powered by Sanyos highest grade 18650 Li-ion cells, ensuring top-notch quality and reliability. The battery can handle peak loads of up to 200W and can operate in temperatures as low as -20°C. It also has a bi-directional USB-C socket, making it compatible with various protocols and devices. The LED screen displays power percentage and remaining runtime, and the unique “Touchless” sensitive button eliminates any disturbance during filming. With ultra-low standby power consumption, the battery can retain power for more than 10 years of storage, making it a reliable power source for filmmakers. The OMNI battery is produced using SWITs fully automated production line, ensuring industry standards and excellent quality.
SUMMARY
Battery Capacity: 99Wh
Battery Capacity: 99-150Wh
Battery Mount / Type: V Mount
Voltage: 14.4v
INCLUDED IN BOX
1x 99Wh USB-C Info Pocket V-Mount Battery
1x USB-C to USB-C (50cm)
About The Swit 99Wh USB-C Info Pocket VM Battery
Meet All Your Expectations
The OMNI series are the new mini-size pocket V-mount camera batteries with LED power info display and versatile DC interfaces including 65W USB-C and 8.4V DC barrel.The sleek design adds a touch of sophistication to your gear, making a statement on set or in any professional environment.
99Wh Fly Friendly
OMNI-99S consists of 8 high capacity cells, with 99Wh/6.9Ah high capacity, airplane borading, and support at least 150W/12A constant high load output, for camera and accessories together.

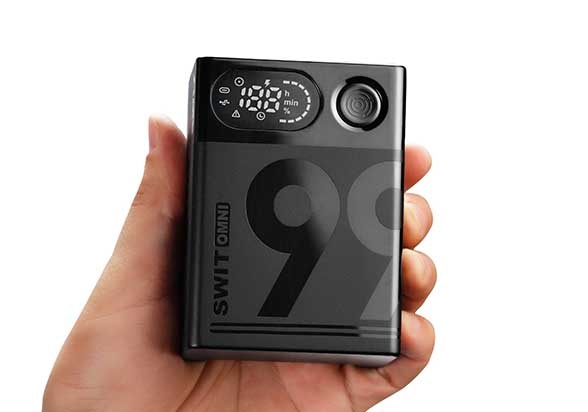

Mini-Size, Pocket Fit
With the OMNI battery, V-mount power is now pocket-sized, allowing you to focus on capturing the perfect shot without the burden of bulky equipment, and empowering filmmakers to unleash their creativity wherever inspiration strikes
Sanyo 3450mAh Class-A Cells
This OMNI batteries use Sanyo highest grade of 18650 Li-ion cells, 3450mAh capacity, the flagship power cell, to ensure the unparalleled quality and reliability.
150W Constant; 200W Peak Load
OMNI-99S can output at least 150W power even when the battery is close to empty. At full charge, it can handle peak loads of up to 200W, effortlessly powering various commonly used high-power lights
Power Up under -20°C Enviroment
The OMNI battery cells featured cold-resistant and with SWIT’s unique low-temperature cold startup process, allows for normal discharge even in extreme cold environments as low as -20°C, perfect for filming in freezing regions, guaranteeing a dependable power source even in the most severe conditions.
Power Up under -20°C Enviroment
The OMNI battery cells featured cold-resistant and with SWIT’s unique low-temperature cold startup process, allows for normal discharge even in extreme cold environments as low as -20°C, perfect for filming in freezing regions, guaranteeing a dependable power source even in the most severe conditions.
USB-C to Power Cameras
The USB-C output of the OMNI battery can power many mirrorless cameras, providing several times the runtime of the small internal battery.It’ s compact size, lightweight, and easy to install, perfect for handheld shooting.

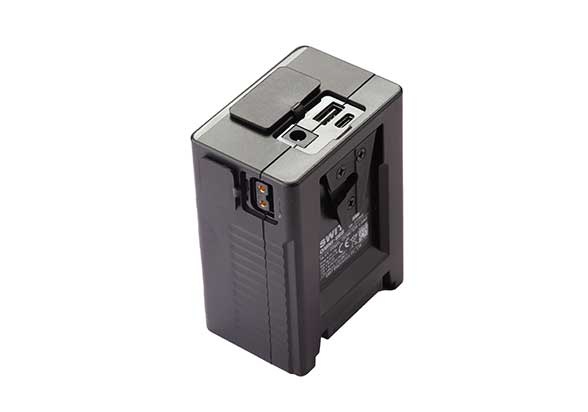

8.4V Barrel DC Output
The 14.4V OMNI battery also provides a 5.5/2.1mm barrel DC socket of regulated DC 8.4V / 3A output for camera-top devices, and you can also connect various dummy DV batteries to power mirrorless cameras.
65W USB-C to Power Laptop
The OMNI-99S battery is equipped with a bi-directional USB-C socket, outputs 5V/9V/12V/15V/20V(Max) 3.25A, 65W high power for laptops, BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 protocols universally compatible.The battery can also be charged using a USB-C charger, supporting 48W fast charging, which could be fully charged within 2.75 hours.
Power Info Display
The LED screen displays power percentage and remaining runtime. The unique “Touchless” sensitive button can eliminate any disturbance caused by touching the battery during filming. Long-pressing this button will display battery’s health level.
Keep Power Even After 10 Years of Storage
The normal batteries have stand-by power consumption of at least 10mA, and need charging every few months, otherwise the battery life will be seriously affected. While the SWIT OMNI batteries have ultra low stand-by power consumption, less than 0.5mA, and will reduce to ONLY 0.01mA after 10 days. So the battery will keep power more than 10 years of storage, and you don’ t need to periodically charge the storage batteries.
SWIT Automated Production
The OMNI battery comes from SWIT’s unique fully automated production line, where each process strictly adheres to standards, setting industry benchmarks and ensuring quality assurance.
Battery plate V-mount
Nominal voltage 14.4V
Capacity 99Wh, 6.9Ah
Power IN&OUT Electrodes: 150W 12A out, 16.8V 3.4A in
D-tap: 150W 12A out, 16.8V 3.4A in
Barrel DC: 5.5/2.1mm, Reg. 8.4V 3A out
USB-A: 10W, 5V/2A out
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max)=3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 48W in, 5V/9V/12V/15V=3A, 20V(Max)=2.4A
Dimension 102×74×52mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Net 553g; With package 691.5g
Tiny V-mount battery, Pocket fit
99Wh/6.9Ah fly-friendly capacity
150W/12A constant high load
1x D-tap output & charging input
1x Barrel DC Regulated 8.4V output
1x USB-A 5V/2A output
1x USB-C 48W input & 65W output
LED remaining runtime display
BMS multiple circuit protections
