OVERVIEW

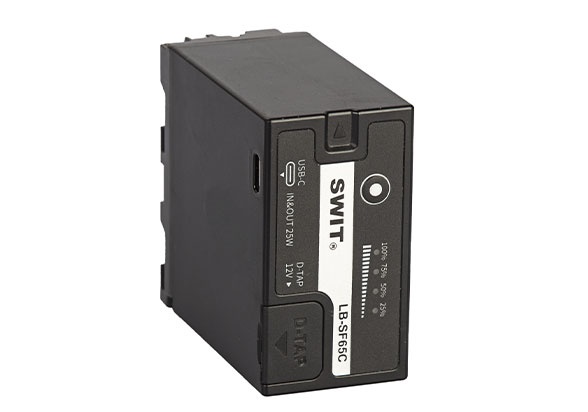

The LB-SF65C is a new 65Wh NP-F battery with a built-in 12V D-tap output and 25W USB-C input and output. It has a capacity of 65Wh/9020mAh and a constant power load of 30W/4A. The battery also features a 4-level LED power indicator and multiple circuit protections.
The LB-SF65C is compatible with various pro-video gears and can be charged using any NP-F charger. It can also be charged by a USB-C charger with a power input of 25W, allowing for a full charge in just 3.5 hours. With its high capacity and multiple charging options, the LB-SF65C is a convenient and reliable power source for video devices.
SUMMARY
Battery Capacity: 65Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Sony NP-F
Battery Technology: Li-ion
Voltage: 12v
INCLUDED IN BOX
1x Swit (LB-SF65C) 65Wh NP-F-type DV battery with 12V D-tap and USB-C
About The Swit 65Wh NP-F-Type DV Battery
65Wh NP-F Battery with D-tap and USB-C
LB-SF65C is a new 65Wh large capacity NP-F type DV battery with regulated 12V D-tap output and 25W USB-C in/out, widely compatible with pro-video gears.
65Wh Large Capacity
LB-SF65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.
Reg. 12V D-tap Output
The LB-SF65C NP-F battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices.
* The D-tap has 7.2V to 12V (Reg.) conversion and it’ s not allowed to charge input via this D-tap socket.

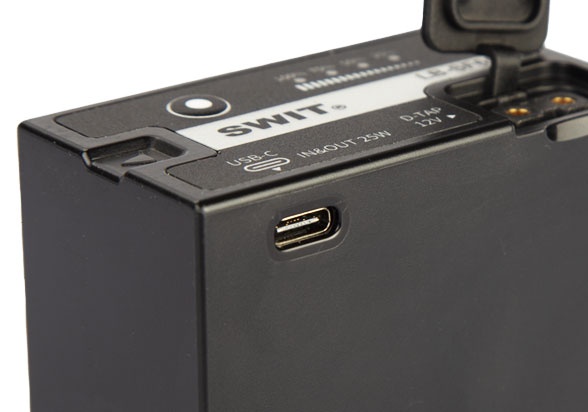

USB-C 25W Output
Fast Charging iPhone 12/13
LB-SF65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
USB-C 25W Charging Input
You can also charge LB-SF65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.
4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.
4-way Charging
LB-SF65C can be charged by any NP-F charger. Use SWIT LC-D421 4-way charger you can charge 4 batteries simultaneously, and fully charging within 5 hours.
Nominal Voltage 7.2V
Capacity 65Wh, 9.02Ah
Max power load 30W, 4A
D-tap 12V (reg.) 1.7A, 20W
USB-C:
25W input 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
25W output 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries SONY NP-F770, NP-F970
Dimension 71×39×76mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 345g
SONY NP-F series battery comparable
7.2V nominal voltage Li-ion battery
65Wh / 9.02Ah capacity
30W / 4A constant power load
Built-in 12V reg. D-tap output
Built-in 25W USB-C input and output
4-level LED power indicator
Multiple circuit protections
