OVERVIEW

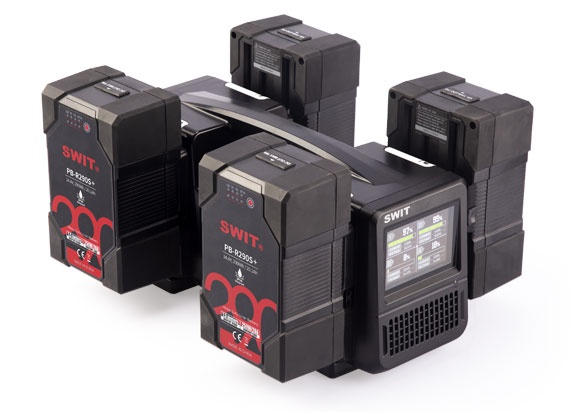

The PC-P461S is a fast charger that can simultaneously charge up to 4 V-mount batteries. It supports both 14.4V and 28.8V nominal voltage batteries, with a super fast charging speed of 100W/6A for 14.4V batteries and 100W/3A for 28.8V batteries. This can save up to 60% of charging time compared to normal chargers. For SWIT ≥160Wh batteries, the charging speed is even faster, while for batteries with less capacity or other brands, the charging current will be limited to 50W/3A.
The PC-P461S also features a 3.5-inch colour LCD display that shows the charging progress, current, and voltage. For batteries with SMBUS info, it can also display real-time capacity and battery cycle times. In addition, there are 4 large size indicators on the top of the charger that provide a quick glance at the charging status. The charger is also lightweight and portable, with a new handle design for easy carrying.
SUMMARY
Battery / Mount Compatibility: V-Mount
Charging Ports: 4
INCLUDED IN BOX
4x100W Super Fast V-mount Charger
About The Swit 4x100W Super Fast V-Mount Charger
4x100W Fast Charger for both 14.4V and 28.8V batteries
PC-P461S can charge 4 V-mount batteries simultaneously, support both 14.4V and 28.8V nominal voltage batteries. Super fast charging 100W/6A for 14.4V batteries, and 100W/3A for 28.8V batteries, save up to 60% charging time comparing to normal chargers.SWIT ≥160Wh batteries support 100W fast charging, for less capacity or other brand batteries, the charging current will limit to 50W/3A.

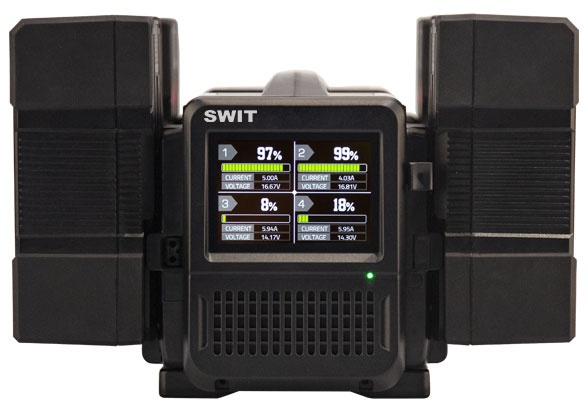

3.5-inch Colour LCD Display
PC-P461S provides a 3.5-inch colour LCD panel to display charging progress, charging current and voltage.For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%Green flashing: 81%-99%Green on: 100% fully chargedRed flashing: Charging error, check LCD info
Light Weight and Portable
The 4 channel fast charger PC-P461S has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.
Power Max 450W
Input AC100V-240V 50/60Hz
Output DC 16.8V, 6Ax4 (SWIT 14.4V & ≥160Wh batteries)
DC 33.6V, 3A×4 (SWIT 28.8V & ≥160Wh batteries)
DC 16.8V, 3A×4 (Other batteries)
Applicable battery V-mount battery
Dimensions 330×153×162mm
Net weight Net 2.43kg; With package 3.3kg
4-ch simultaneous fast charging
Charge both 14.4V and 28.8V V-mount batteries
100W/6A for SWIT 14.4V & ≥160Wh batteies
100W/3A for SWIT 28.8V & ≥160Wh batteies
50W/3A for other batteies
3.5-inch colour LCD info display
Battery cycle times display
Top large charging indicators
