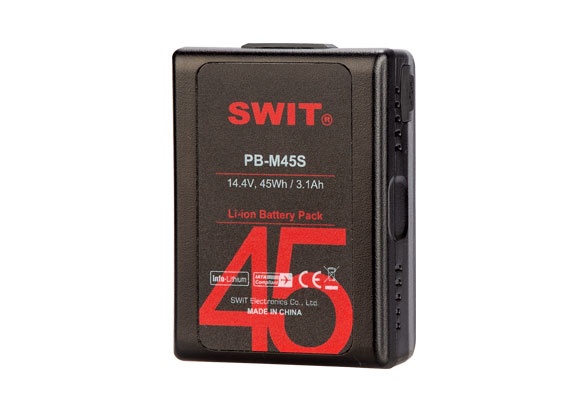

Swit 45Wh Pocket V-Mount Battery Pack




Tiny V-mount battery – Pocket fit size

The PB-M45S Pocket V-mount battery is a game-changer for field shootings. It is compact in size, with a capacity of 45Wh/3.1Ah, and can handle a constant load of 150W/12A. It also features a D-tap output, USB 5V/2A output, and a 5-step LED power indicator. This battery is suitable for both SONY and RED devices, and has multiple circuit protections for safety.

45Wh Fly Friendly – 150W/12A constant high load

The PB-M45S is equipped with 4 high-quality 18650 battery cells, providing a high capacity of 45Wh/3.1Ah. This battery is also fly-friendly, meaning it can be taken as carry-on luggage on airplanes. It can handle a constant load of 150W/12A, making it suitable for high-power lighting equipment. Additionally, it features a built-in D-tap and USB sockets, a 5-LED power indicator, and can be fast-charged with standard V-mount and D-tap chargers.

Battery Capacity: 45Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v

About The Swit 45Wh Pocket V-Mount Battery Pack
Tiny V-mount battery – Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabilisers, focus puller monitor, portable LED panel, or small cameras.PB-M45S Pocket V-mount battery is a perfect solution! It’s only a DV battery size, 45Wh capacity, and without any compromise on the DC sockets!

45Wh Fly Friendly – 150W/12A constant high load

PB-M45S consists of 4pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.The Constant load is as high as 150W, 12A, applicable for high power lightings.

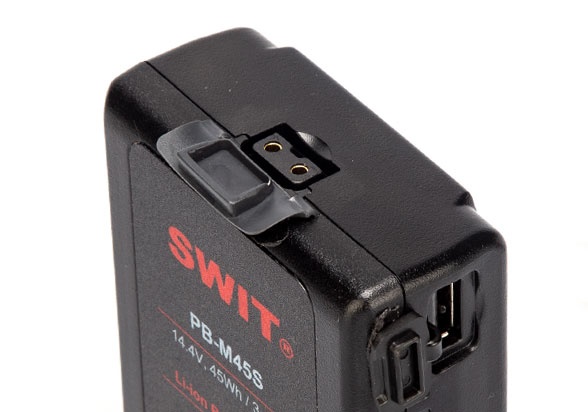

Built-in D-tap and USB

The pocket size PB-M45S still has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator – Low battery warning

PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery. 3A Fast Charging PB-M45S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.

The following chargers are recommended:

1. S-3822S, Portable 2-ch Simultaneous Charger – Charge 2x PB-M45S: Approx. 75 min

2. PC-U130B2, Ultra-Portable Dual D-tap head charger – Charge 1x PB-M45S: Approx. 75 min – Charge 2x PB-M45S: Approx. 2 hours

Hot-Swap Adaptor

You can use 2x PB-M45S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M45S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

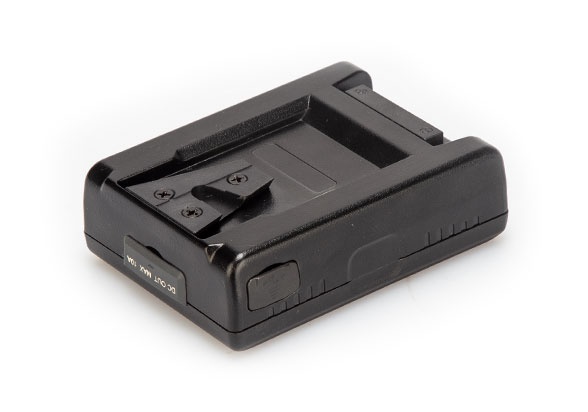

Battery plate V-mount
Nominal voltage 14.4V
Capacity 45Wh, 3.1Ah
Max output In total: 150W
Electrodes: 150W, 12A
USB: 10W, 5V/2A
D-tap: 100W / 8A
Dimension 100 × 74 × 34mm
Net weight 0.31kg
Max charging current 3A

Tiny V-mount battery, Pocket fit
45Wh/3.1Ah fly-friendly capacity
Max 150W/12A constant load
1x D-tap output & charging input
1x USB 5V/2A output
5-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections
