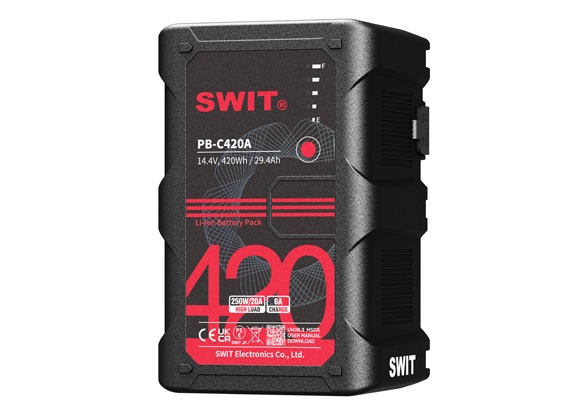

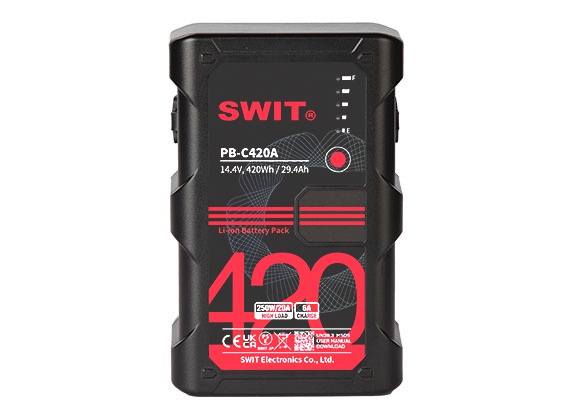

Swit 420Wh High-Load Gold Mount Battery

OVERVIEW
PB-C420A is a powerful V-mount battery with a capacity of 420Wh, making it the largest handheld battery in the world. It is designed to provide long-lasting power for cameras, monitors, lights, and other power-hungry devices used in the broadcast and film industry. The battery also features 2x D-tap sockets for camera-top devices.

With 250W/20A constant high load and a peak load of 305W, PB-C420A can easily drive high-power cine cameras and on-camera devices. It has a fast charging capability of 100W/6A, which can save more than 50% of charging time. Additionally, the battery is equipped with multiple circuit protections to ensure the safety of your devices. With its reliable quality, PB-C420A is the go-to choice for all your power needs.

INCLUDED IN BOX
1x Swit 420Wh High-load Heavy-duty Battery Gold-Mount

About The Swit 420Wh High-Load Gold Mount Battery
ONE BATTERY, ONE DAYPB-C420A reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

14.4V, 420Wh, 2x D-tapPB-C420A consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.4Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

250W Constant High LoadPB-C420A outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

100W 6A Fast ChargingPB-C420A supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Reliable SWIT QualityThe PB-C420A internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

Nominal Voltage 14.4V
Capacity 420Wh/29.4Ah
Power Load 250W / 20A constant, 305W peak
Charging DC 16.8V, 6A
D-tap 2x D-tap 150W/10A in total
Mount Type Gold mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Net 2.07kg; With package2.15kg
Dimensions 155×101×83mm
14.4V, 420Wh/29.4Ah large capacity
250W/20A constant load, 305W peak load
100W/6A fast charging support
2x D-tap power sockets, 150W load
5-LED digital power indicators
Multiple circuit protections
